# Build Guide
|
||||
|
||||
This is the Corne Light build guide.
|
||||
The build guide differs depending on the version of your board,
|
||||
so please choose your own from the following.
|
||||
|
||||
- [v1 build guide](https://github.com/foostan/crkbd/blob/master/corne-light/doc/v1/buildguide_en.md)
|
||||
- [v2 low-edition build guide](https://github.com/foostan/crkbd/blob/master/corne-light/doc/v2/buildguide_low_edition_en.md)
|
||||
7
corne-ultralight/doc/buildguide_jp.md
Normal file
7
corne-ultralight/doc/buildguide_jp.md
Normal file
@ -0,0 +1,7 @@
|
||||
# Build Guide
|
||||
|
||||
こちらは Corne Light のビルドガイドになります。
|
||||
バージョンによってビルドガイドは異なりますので、以下よりご自身のものをお選びください。
|
||||
|
||||
- [v1 のビルドガイドはこちら](https://github.com/foostan/crkbd/blob/master/corne-light/doc/v1/buildguide_jp.md)
|
||||
- [v2 low-edition のビルドガイドはこちら](https://github.com/foostan/crkbd/blob/master/corne-light/doc/v2/buildguide_low_edition_jp.md)
|
||||
245
corne-ultralight/doc/v1/buildguide_en.md
Normal file
245
corne-ultralight/doc/v1/buildguide_en.md
Normal file
@ -0,0 +1,245 @@
|
||||
# Build Guide
|
||||
|
||||
This is the Corne Light v1 build guide.
|
||||
|
||||

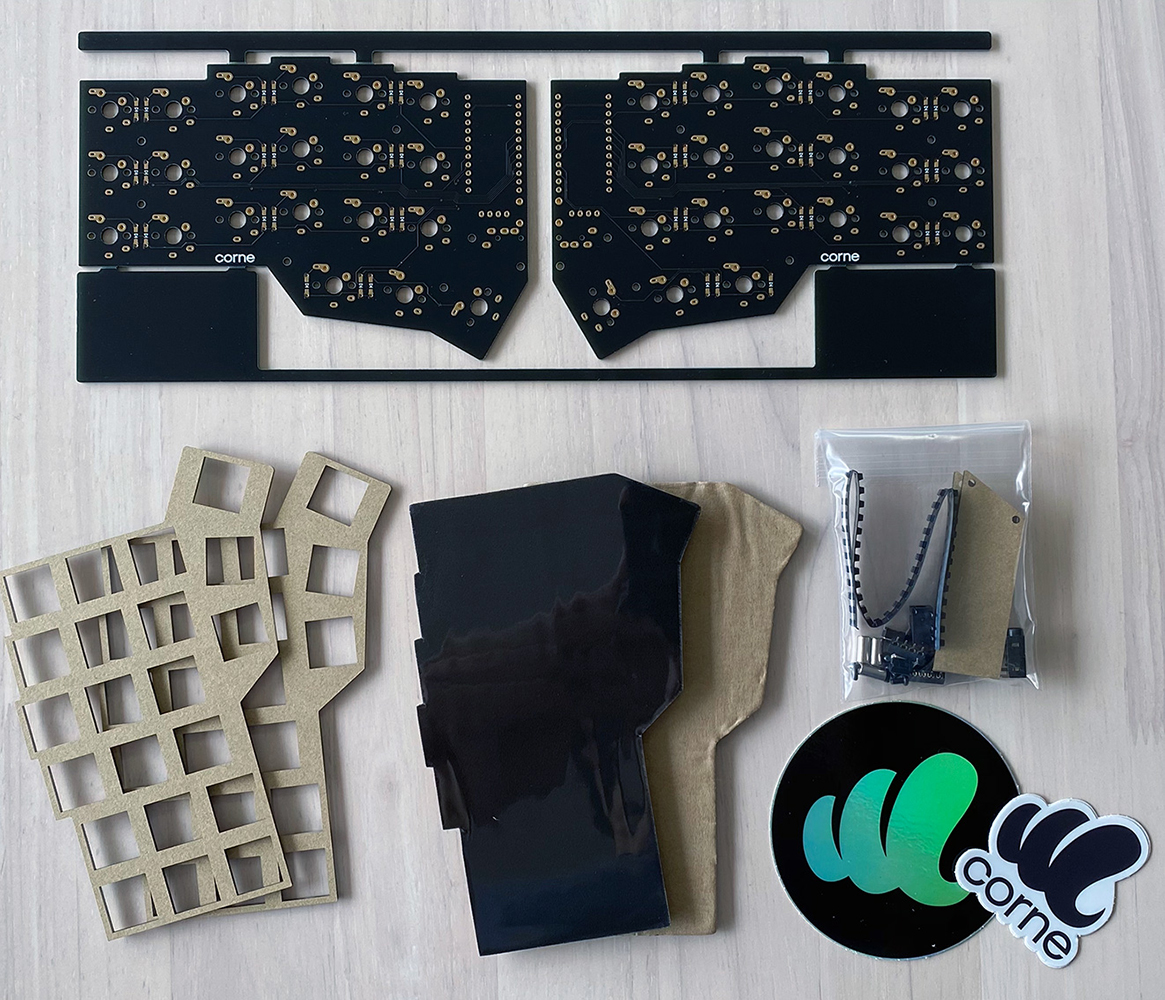

## Parts
|
||||
|
||||
<table>
|
||||
<thead>
|
||||
<tr> <td width = "30%"> Name </td> <td width = "15%"> Count </td> <td> Remarks </td> </tr>
|
||||
</header>
|
||||
<tbody>
|
||||
<tr>
|
||||
<td> PCB </td>
|
||||
<td> 1 set </td>
|
||||
<td>
|
||||
|
||||
</td>
|
||||
</tr>
|
||||
<tr>
|
||||
<td> Top plate </td>
|
||||
<td> 2 sheets </td>
|
||||
<td>
|
||||
|
||||
</td>
|
||||
</tr>
|
||||
<tr>
|
||||
<td> Bottom plate </td>
|
||||
<td> 2 sheets </td>
|
||||
<td rowspan = "2">
|
||||
|
||||
</td>
|
||||
</tr>
|
||||
<tr>
|
||||
<td> ProMicro protective plate </td>
|
||||
<td> 2 sheets </td>
|
||||
</tr>
|
||||
<tr>
|
||||
<td> diode </td>
|
||||
<td> 42 </td>
|
||||
<td>
|
||||
|
||||
</td>
|
||||
</tr>
|
||||
<tr>
|
||||
<td> Spacer M2 7.5mm </td>
|
||||
<td> 10 </td>
|
||||
<td rowspan = "3">
|
||||
|
||||
</td>
|
||||
</tr>
|
||||
<tr>
|
||||
<td> Spacer M2 9mm </td>
|
||||
<td> 4 </td>
|
||||
</tr>
|
||||
<tr>
|
||||
<td> Screw M2 4mm </td>
|
||||
<td> 28 </td>
|
||||
</tr>
|
||||
<tr>
|
||||
<td> TRRS jack </td>
|
||||
<td> 2 </td>
|
||||
<td rowspan = "3">
|
||||
|
||||
</td>
|
||||
</tr>
|
||||
<tr>
|
||||
<td> Reset switch </td>
|
||||
<td> 2 </td>
|
||||
</tr>
|
||||
<tr>
|
||||
<td> Rubber feet </td>
|
||||
<td> 8 </td>
|
||||
</tr>
|
||||
<tr>
|
||||
<td> ProMicro (with conthrough) </td>
|
||||
<td> 2 </td>
|
||||
<td>
|
||||
<a href="https://yushakobo.jp/shop/promicro-spring-pinheader/"> https://yushakobo.jp/shop/promicro-spring-pinheader/ </a>
|
||||
</td>
|
||||
</tr>
|
||||
<tr>
|
||||
<td> OLED module (with pin socket) </td>
|
||||
<td> 2 </td>
|
||||
<td>
|
||||
<a href="https://yushakobo.jp/shop/oled/"> https://yushakobo.jp/shop/oled/ </a>
|
||||
</td>
|
||||
</tr>
|
||||
<tr>
|
||||
<td> key switch </td>
|
||||
<td> 42 </td>
|
||||
<td> </td>
|
||||
</tr>
|
||||
<tr>
|
||||
<td> keycap </td>
|
||||
<td> 42 </td>
|
||||
<td> </td>
|
||||
</tr>
|
||||
<tr>
|
||||
<td> TRRS cable </td>
|
||||
<td> 1 </td>
|
||||
<td> TRS cable is also acceptable </td>
|
||||
</tr>
|
||||
<tr>
|
||||
<td> USB cable </td>
|
||||
<td> 1 </td>
|
||||
<td> </td>
|
||||
</tr>
|
||||
</tbody>
|
||||
</table>
|
||||
|
||||
## Advance preparation
|
||||
|
||||
If you build the firmware yourself,
|
||||
it takes time to prepare the environment,
|
||||
so it is recommended to start first. \
|
||||
See <https://github.com/foostan/crkbd/blob/master/doc/firmware_en.md>
|
||||
for more information.
|
||||
|
||||
## Implementation
|
||||
|
||||

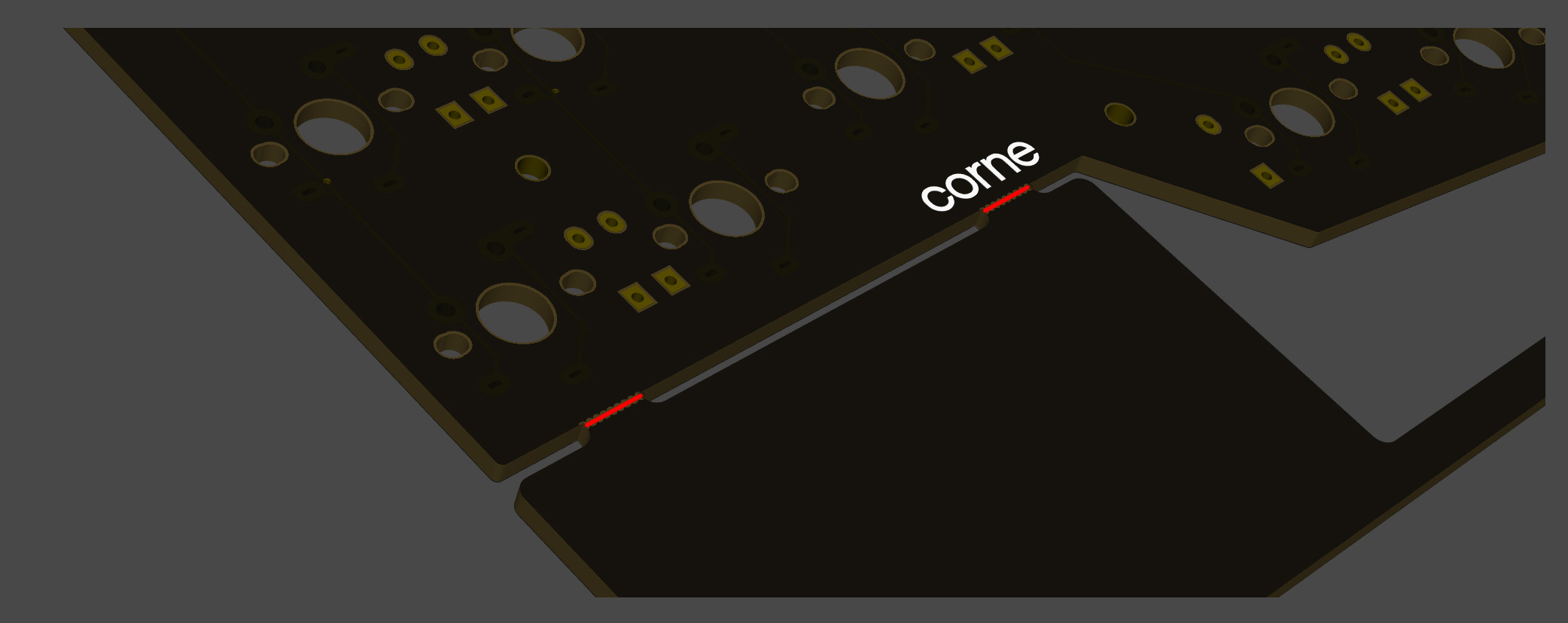

### PCB disconnection
|
||||
|
||||

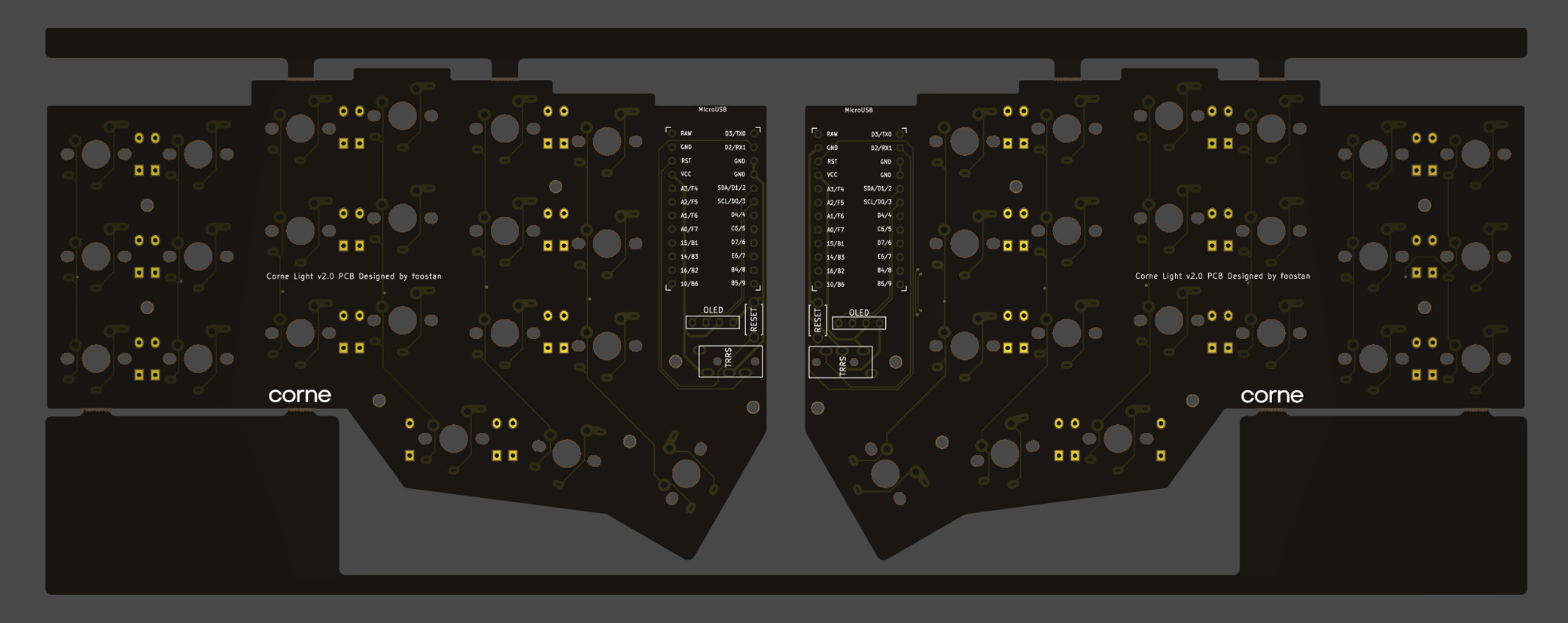

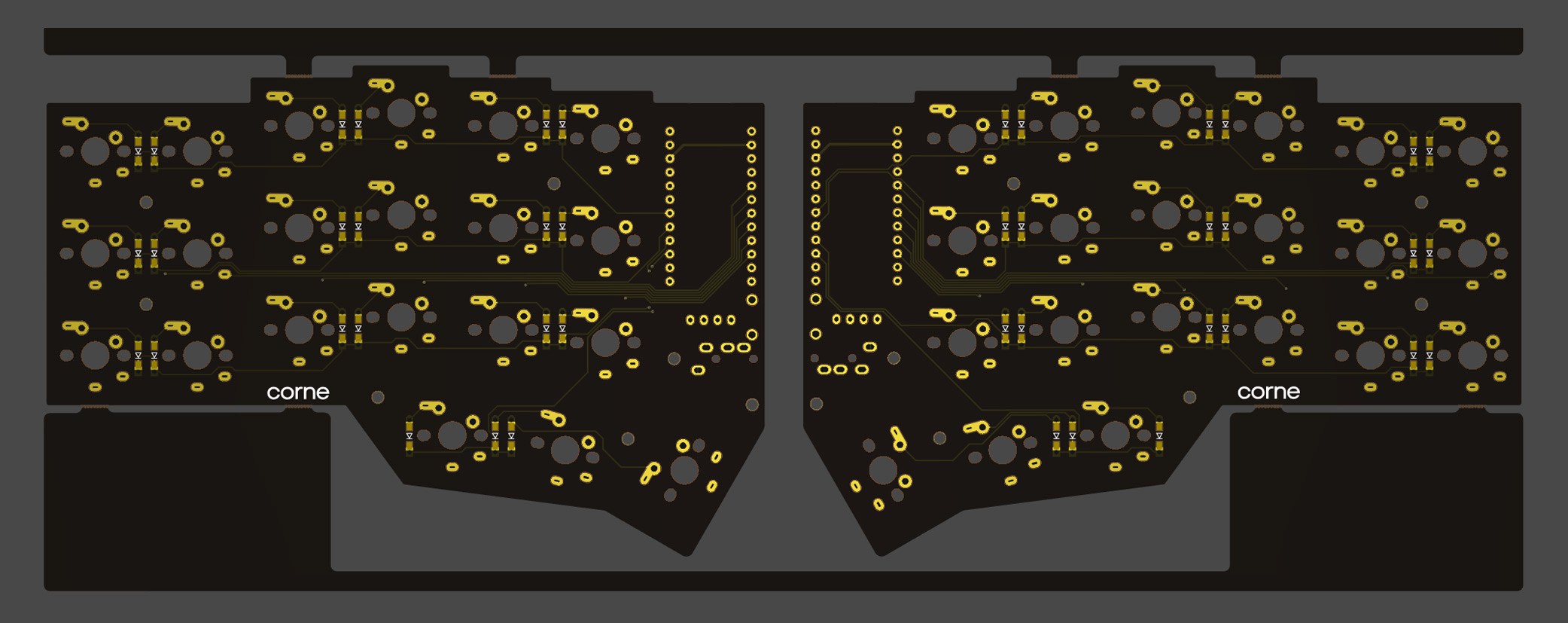

Check the front and back and separate the left and right PCBs
|
||||
(the photo is the front).
|
||||
|
||||
|
||||
|
||||
This is a jig for bending the legs of a diode.
|
||||
Separate it if necessary.
|
||||
|
||||
|
||||
|
||||
* Some versions do not have a jig.
|
||||
|
||||
### Diodes
|
||||
|
||||
First, bend the legs of the reed type diode.
|
||||
|
||||
* You can clean it by bending it one by one as shown in the picture,
|
||||
but it is more efficient to bend multiple pieces at the same time
|
||||
while connected to the tape.
|
||||
|
||||
|
||||
|
||||
Attach the diode with the bent leg to the specified position.
|
||||
|
||||
|
||||
|
||||
The diode has an orientation and is installed as shown in the photo.
|
||||
|
||||
* All the diodes to be attached are in the same orientation.
|
||||
|
||||
|
||||
|
||||
You can attach it neatly by fixing it with masking tape.
|
||||
|
||||
|
||||
|
||||
Solder from the back side.
|
||||
|
||||
|
||||
|
||||
If you are fixing with masking tape,
|
||||
cutting your legs to the limit like this will make soldering easier.
|
||||
|
||||
|
||||
|
||||
With 21 one-handed and two-handed he installs 42 diodes.
|
||||
|
||||
|
||||
|
||||

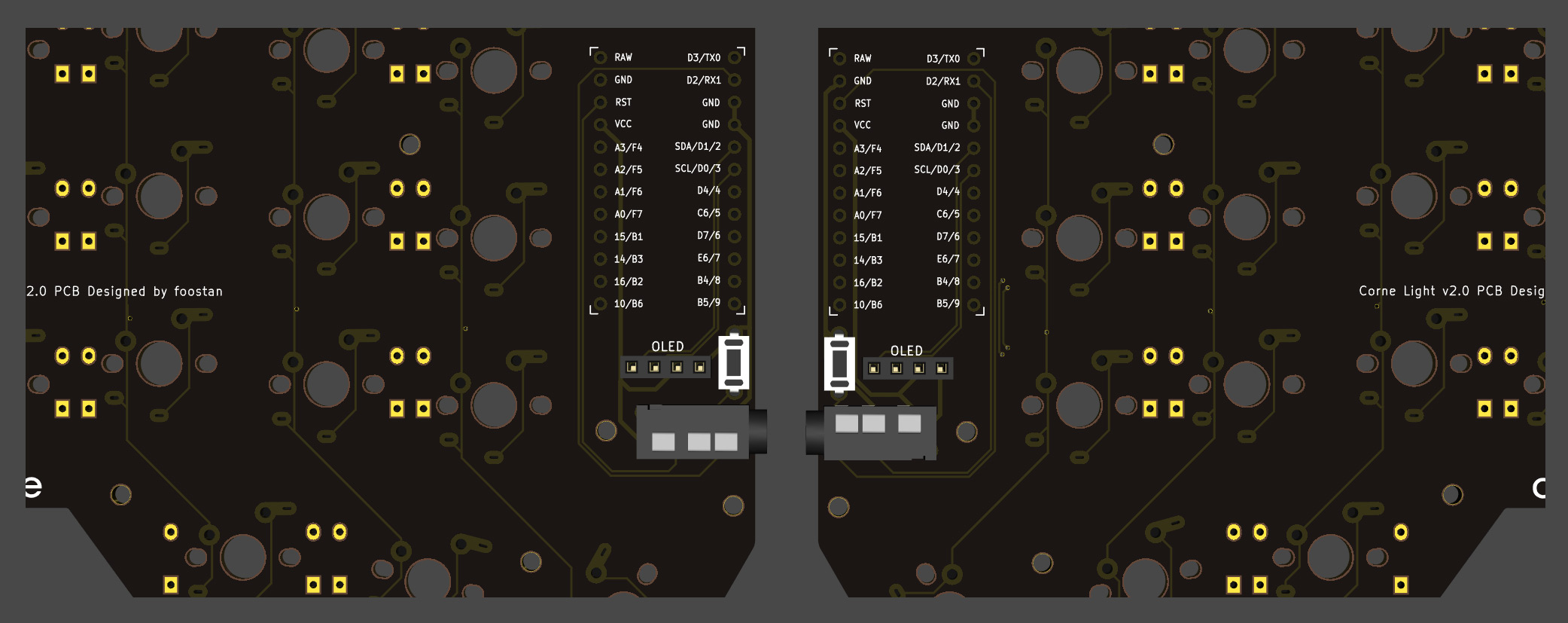

### TRRS jack, reset switch, pin socket
|
||||
|
||||
Install in the specified position.
|
||||
|
||||
* Install the right hand side in the same position
|
||||
(be careful of mistakes on the front and back).
|
||||
|
||||
|
||||
|
||||

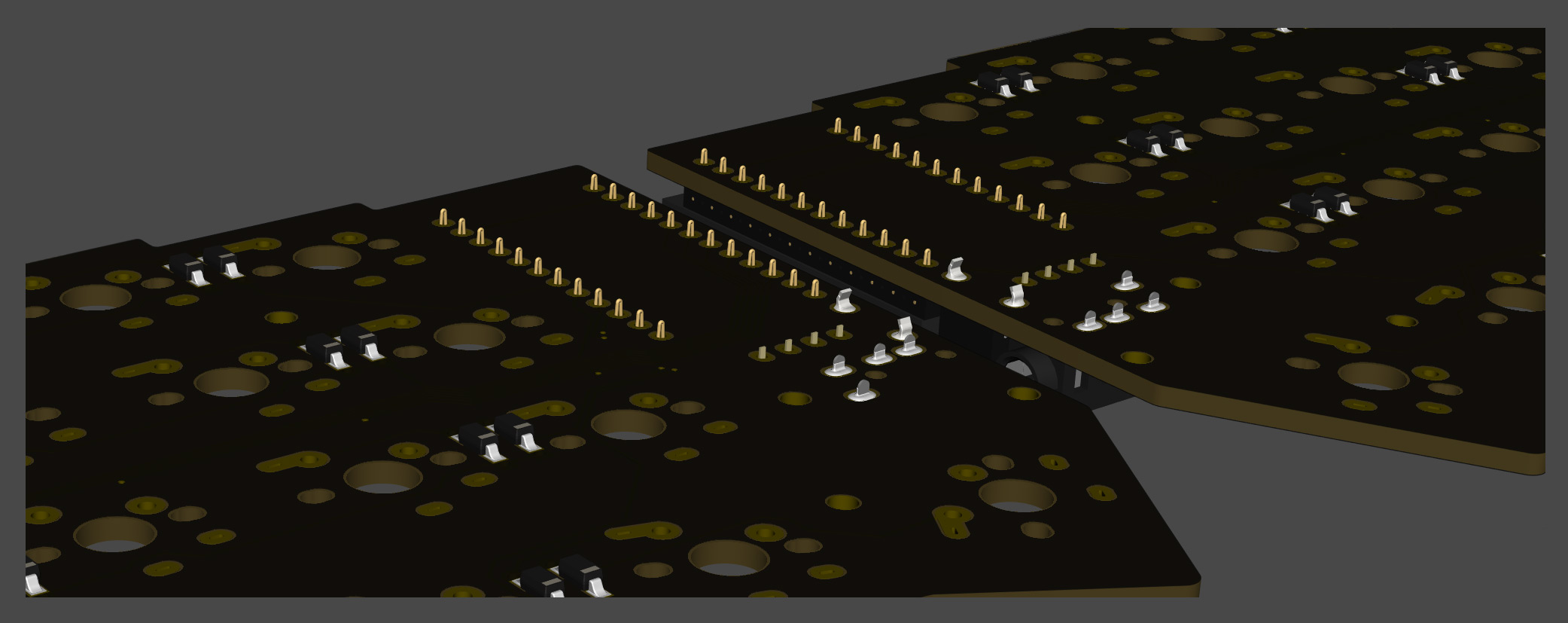

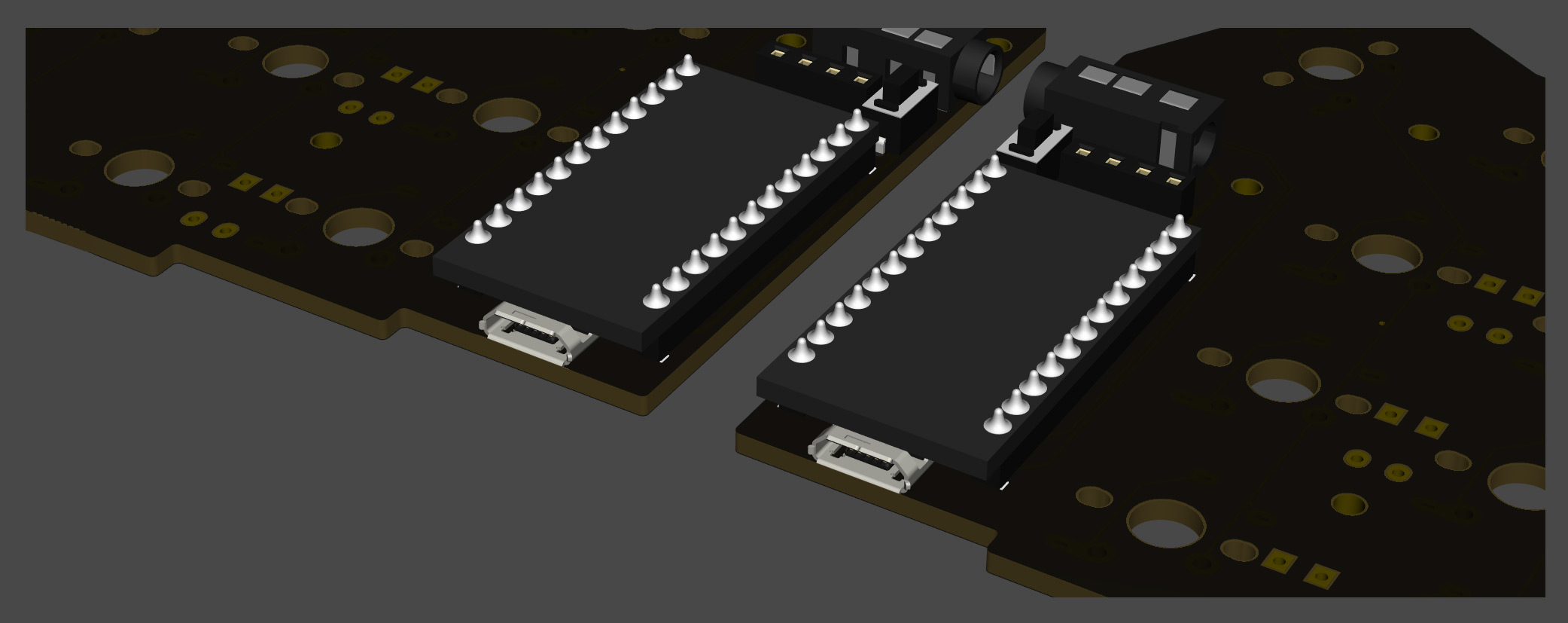

### ProMicro, OLED module
|
||||
|
||||
Install his ProMicro and his OLED module by referring to the [Helix Build Guide](
|
||||
https://github.com/MakotoKurauchi/helix/blob/master/Doc/buildguide_en.md#pro-micro).
|
||||
|
||||
|
||||
|
||||
### Firmware
|
||||
|
||||
Write the firmware to ProMicro by referring to the following. \
|
||||
<https://github.com/foostan/crkbd/blob/master/doc/firmware_en.md>
|
||||
|
||||
### Operation check
|
||||
|
||||
To check the operation,
|
||||
connect the left hand side to the PC with a USB cable,
|
||||
and connect the left hand side and the right hand side with the TRRS cable.
|
||||
Since there may be defects such as jacks,
|
||||
be sure to connect the left and right instead of one by one
|
||||
before checking the operation.
|
||||
|
||||
* Since the switch is not attached,
|
||||
check the operation with tweezers as shown in the photo.
|
||||
|
||||
|
||||
|
||||

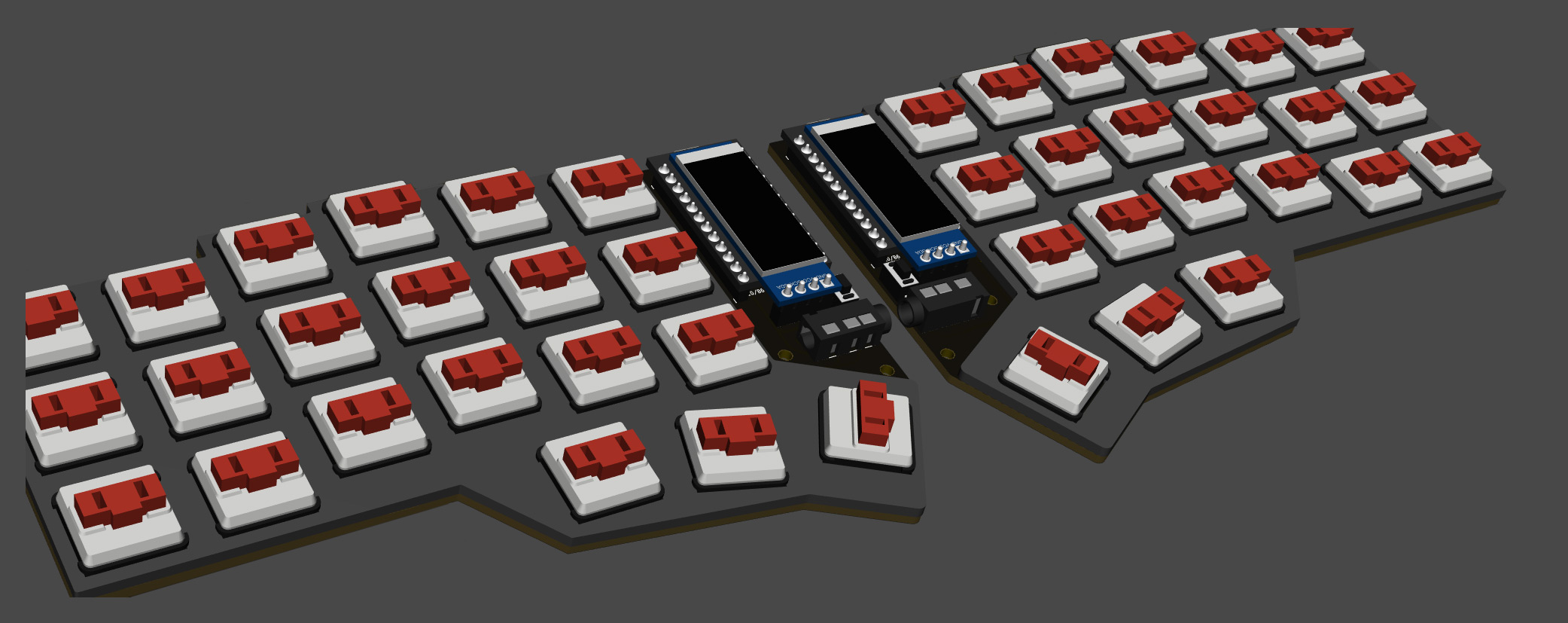

### Top plate, key switch
|
||||
|
||||
Attach the key switch to the top plate as shown in the picture.
|
||||
|
||||
* Be careful of the direction of the key switch.
|
||||
|
||||
|
||||
|
||||
We recommend using a 3-pin key switch.
|
||||
|
||||
* Even when using 5 pins, the plastic legs can be separated to make 3 pins.
|
||||
|
||||
|
||||
|
||||
Solder so that there is no gap between the switch and the PCB.
|
||||
|
||||
|
||||
|
||||
|
||||

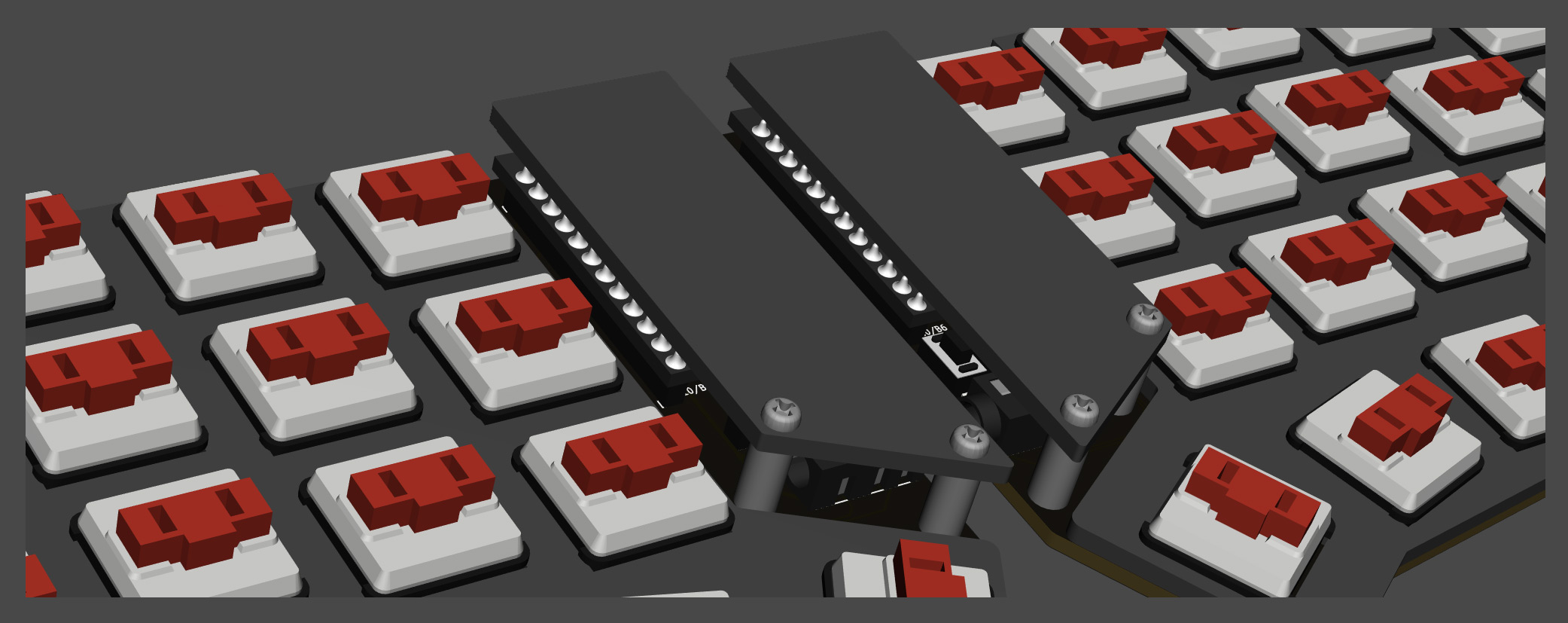

### ProMicro Protective Plate, Bottom Plate
|
||||
|
||||
Attach his ProMicro protective plate using an M2 9mm spacer.
|
||||
|
||||
|
||||
|
||||
Install the bottom plate using the M2 7.5mm spacer.
|
||||
|
||||
|
||||
|
||||
Attach the rubber feet to the four corners.
|
||||
|
||||
|
||||
|
||||

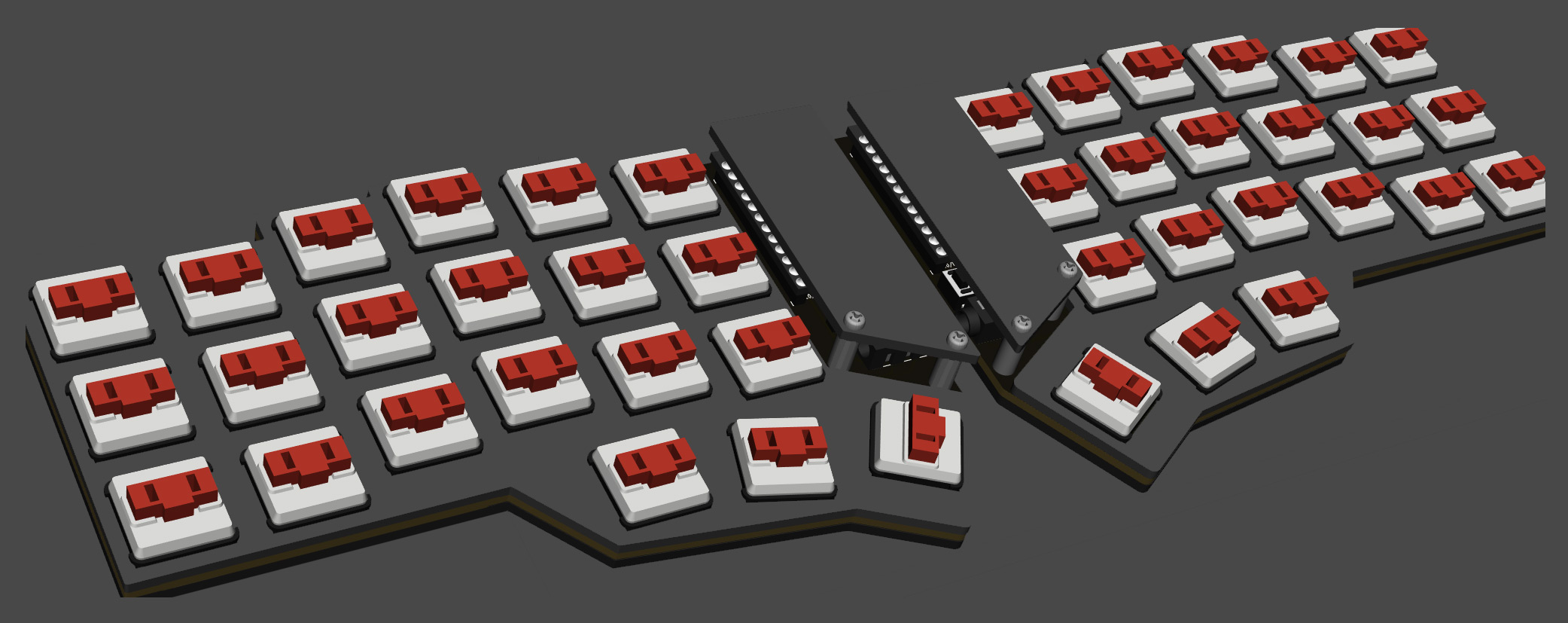

## Complete
|
||||
|
||||
Attach the keycap and you're done.
|
||||
|
||||
|
||||
|
||||
225
corne-ultralight/doc/v1/buildguide_jp.md
Normal file
225
corne-ultralight/doc/v1/buildguide_jp.md
Normal file
@ -0,0 +1,225 @@
|
||||
# Build Guide
|
||||
|
||||
こちらは Corne Light のビルドガイドになります。
|
||||
|
||||
## 部品
|
||||
|
||||
<table>
|
||||
<thead>
|
||||
<tr><td width="30%">名前</td><td width="15%">数</td><td>備考</td></tr>
|
||||
</thead>
|
||||
<tbody>
|
||||
<tr>
|
||||
<td>PCB</td>
|
||||
<td>1セット</td>
|
||||
<td>
|
||||
<img alt="PCB" src="https://user-images.githubusercontent.com/736191/69554623-6be02300-0fe5-11ea-879d-9e4316df0226.JPG" width="100%">
|
||||
</td>
|
||||
</tr>
|
||||
<tr>
|
||||
<td>トッププレート</td>
|
||||
<td>2枚</td>
|
||||
<td>
|
||||
<img alt="top-plates" src="https://user-images.githubusercontent.com/736191/69554621-6be02300-0fe5-11ea-9ca2-5556f99fa2e5.JPG" width="100%">
|
||||
</td>
|
||||
</tr>
|
||||
<tr>
|
||||
<td>ボトムプレート</td>
|
||||
<td>2枚</td>
|
||||
<td rowspan="2">
|
||||
<img alt="bottom-plates" src="https://user-images.githubusercontent.com/736191/69554622-6be02300-0fe5-11ea-8803-a1c97aae0433.JPG" width="100%">
|
||||
</td>
|
||||
</tr>
|
||||
<tr>
|
||||
<td>ProMicro保護プレート</td>
|
||||
<td>2枚</td>
|
||||
</tr>
|
||||
<tr>
|
||||
<td>ダイオード</td>
|
||||
<td>42本</td>
|
||||
<td>
|
||||
<img alt="diodes" src="https://user-images.githubusercontent.com/736191/69554619-6b478c80-0fe5-11ea-9a26-96d617f2b0f6.JPG" width="100%">
|
||||
</td>
|
||||
</tr>
|
||||
<tr>
|
||||
<td>スペーサー M2 7.5mm</td>
|
||||
<td>10本</td>
|
||||
<td rowspan="3">
|
||||
<img alt="screws" src="https://user-images.githubusercontent.com/736191/69554618-6b478c80-0fe5-11ea-8090-b14d989e9d07.JPG" width="100%">
|
||||
</td>
|
||||
</tr>
|
||||
<tr>
|
||||
<td>スペーサー M2 9mm</td>
|
||||
<td>4本</td>
|
||||
</tr>
|
||||
<tr>
|
||||
<td>ネジ M2 4mm</td>
|
||||
<td>28本</td>
|
||||
</tr>
|
||||
<tr>
|
||||
<td>TRRSジャック</td>
|
||||
<td>2つ</td>
|
||||
<td rowspan="3">
|
||||
<img alt="jacks" src="https://user-images.githubusercontent.com/736191/69554620-6be02300-0fe5-11ea-94ee-6f8f50d800da.JPG" width="100%">
|
||||
</td>
|
||||
</tr>
|
||||
<tr>
|
||||
<td>リセットスイッチ</td>
|
||||
<td>2つ</td>
|
||||
</tr>
|
||||
<tr>
|
||||
<td>ゴム足</td>
|
||||
<td>8つ</td>
|
||||
</tr>
|
||||
<tr>
|
||||
<td>ProMicro(コンスルー付き)</td>
|
||||
<td>2つ</td>
|
||||
<td>
|
||||
<a href="https://yushakobo.jp/shop/promicro-spring-pinheader/">https://yushakobo.jp/shop/promicro-spring-pinheader/</a>
|
||||
</td>
|
||||
</tr>
|
||||
<tr>
|
||||
<td>OLEDモジュール(ピンソケット付き)</td>
|
||||
<td>2つ</td>
|
||||
<td>
|
||||
<a href="https://yushakobo.jp/shop/oled/">https://yushakobo.jp/shop/oled/</a>
|
||||
</td>
|
||||
</tr>
|
||||
<tr>
|
||||
<td>キースイッチ</td>
|
||||
<td>42個</td>
|
||||
<td></td>
|
||||
</tr>
|
||||
<tr>
|
||||
<td>キーキャップ</td>
|
||||
<td>42個</td>
|
||||
<td></td>
|
||||
</tr>
|
||||
<tr>
|
||||
<td>TRRSケーブル</td>
|
||||
<td>1本</td>
|
||||
<td>TRSケーブルでも可</td>
|
||||
</tr>
|
||||
<tr>
|
||||
<td>USBケーブル</td>
|
||||
<td>1本</td>
|
||||
<td></td>
|
||||
</tr>
|
||||
</tbody>
|
||||
</table>
|
||||
|
||||
## 事前準備
|
||||
|
||||
ファームウェアを自分でビルドする場合は環境を整備するのに時間がかかるのではじめに取り掛かっておくことをおすすめします。\
|
||||
詳しくは <https://github.com/foostan/crkbd/blob/master/doc/firmware_jp.md> を参照してください。
|
||||
|
||||
## 実装
|
||||
|
||||
### PCBの切り離し
|
||||
|
||||
裏表を確認して左右のPCBを切り離します(写真は表です)。
|
||||
|
||||
<img alt="assembly-pcb" src="https://user-images.githubusercontent.com/736191/69554624-6c78b980-0fe5-11ea-9828-3be0af9f27af.JPG" width="100%">
|
||||
|
||||
こちらはダイオードの足を曲げるための治具です。
|
||||
必要に応じて切り離しておきます。
|
||||
|
||||
<img alt="assembly-tool-of-diodes" src="https://user-images.githubusercontent.com/736191/69554626-6c78b980-0fe5-11ea-8c4d-ae70374d54bc.JPG" width="100%">
|
||||
|
||||
※ バージョンによって治具が付いていないものもあります。
|
||||
|
||||
### ダイオード
|
||||
|
||||
まずはリードタイプのダイオードの足を曲げていきます。
|
||||
※ 写真のように一本ずつ曲げるときれいにできますが、テープに繋がれたまま複数本を同時に曲げたほうが効率的です。
|
||||
|
||||
<img alt="assembly-diodes-1" src="https://user-images.githubusercontent.com/736191/69554627-6c78b980-0fe5-11ea-9f4f-120c28b49953.JPG" width="100%">
|
||||
|
||||
足を曲げたダイオードを指定の位置に付けていきます。
|
||||
|
||||
<img alt="assembly-diodes-2" src="https://user-images.githubusercontent.com/736191/69554628-6d115000-0fe5-11ea-8885-e88b5d87a3b1.JPG" width="100%">
|
||||
|
||||
ダイオードには向きがあり、写真のように取り付けます。
|
||||
※ 取り付けるダイオードはすべて同じ向きです。
|
||||
|
||||
<img alt="assembly-diodes-3" src="https://user-images.githubusercontent.com/736191/69554629-6d115000-0fe5-11ea-9df5-70e8ab10489f.JPG" width="100%">
|
||||
|
||||
マスキングテープで固定するときれいに付けることができます。
|
||||
|
||||
<img alt="assembly-diodes-4" src="https://user-images.githubusercontent.com/736191/69554632-6d115000-0fe5-11ea-907f-2188aa59094a.JPG" width="100%">
|
||||
|
||||
裏面からはんだ付けを行います。
|
||||
|
||||
<img alt="assembly-diodes-5" src="https://user-images.githubusercontent.com/736191/69554633-6da9e680-0fe5-11ea-9d5c-751595784d84.JPG" width="100%">
|
||||
|
||||
マスキングテープで固定している場合はこのようにギリギリまで足を切るとはんだ付けがやりやすくなります。
|
||||
|
||||
<img alt="assembly-diodes-6" src="https://user-images.githubusercontent.com/736191/69554634-6da9e680-0fe5-11ea-9051-93f9edd09c9a.JPG" width="100%">
|
||||
|
||||
片手21個、両手分で 42 個のダイオードを取り付けます。
|
||||
|
||||
<img alt="assembly-diodes-7" src="https://user-images.githubusercontent.com/736191/69554635-6da9e680-0fe5-11ea-9ee3-b503bc0fcc83.JPG" width="100%">
|
||||
|
||||
### TRRSジャック、リセットスイッチ、ピンソケット
|
||||
|
||||
指定の位置に取り付けます。
|
||||
※ 右手側も同じ位置に取り付けます(表裏の間違いに気を付けてください)。
|
||||
|
||||
<img alt="assembly-jacks-resets-pinsockets-1" src="https://user-images.githubusercontent.com/736191/69554641-6e427d00-0fe5-11ea-87d7-c46056e4fb09.JPG" width="100%">
|
||||
|
||||

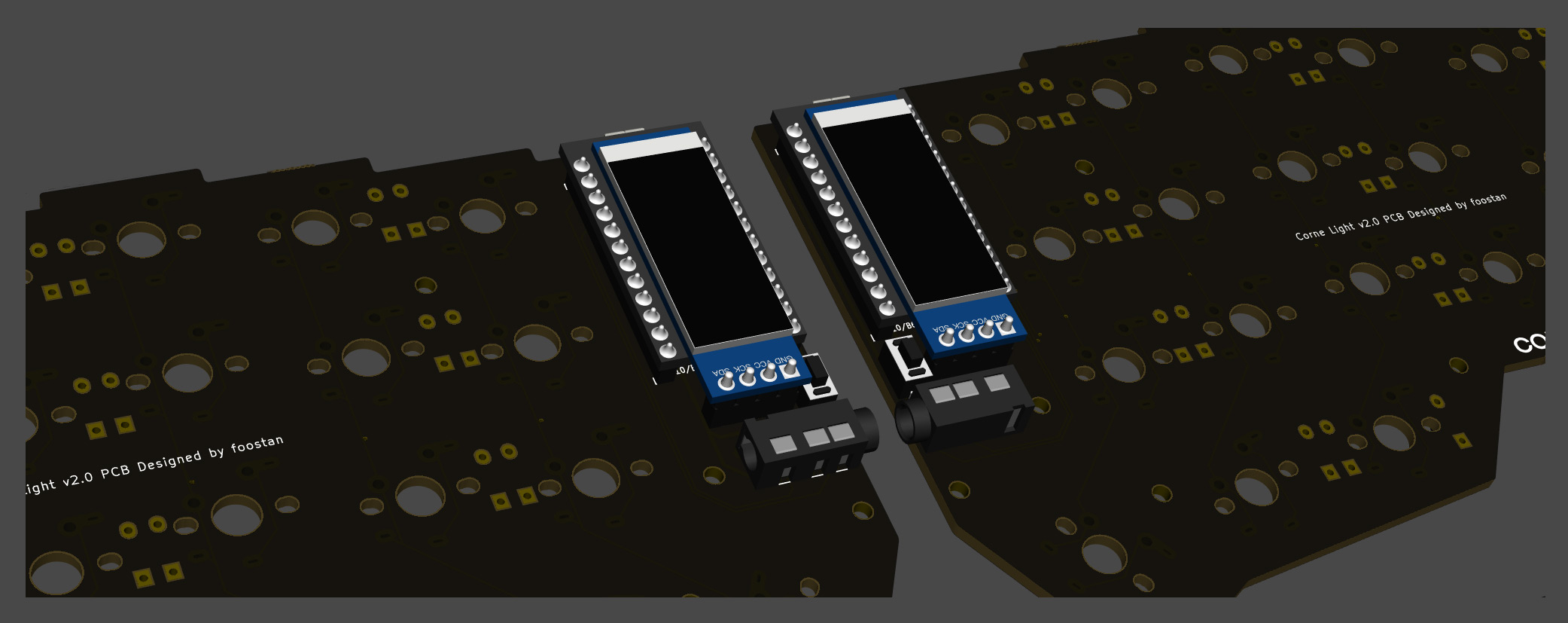

### ProMicro、OLEDモジュール
|
||||
|
||||
[Helix のビルドガイド](https://github.com/MakotoKurauchi/helix/blob/master/Doc/buildguide_jp.md#pro-micro)を参考にして ProMicro および OLED モジュールを取り付けます。
|
||||
|
||||
<img alt="assembly-promicro-oled" src="https://user-images.githubusercontent.com/736191/69554644-6e427d00-0fe5-11ea-8c6b-9aaa3d2c3f6c.JPG" width="100%">
|
||||
|
||||
### ファームウェアの書き込み
|
||||
|
||||
下記を参照しファームウェアをProMicroに書き込みます。\
|
||||
<https://github.com/foostan/crkbd/blob/master/doc/firmware_jp.md>
|
||||
|
||||
### 動作確認
|
||||
|
||||
動作確認は左手側を USB ケーブルで PC とつなぎ、左手側と右手側を TRRS ケーブルで接続して行います。ジャック等の不良もありえるので、片方ずつではなく必ず左右を接続させてから動作確認をしてください。
|
||||
※ スイッチを付けてないので写真のようにピンセット等で動作確認を行います。
|
||||
|
||||
<img alt="check" src="https://user-images.githubusercontent.com/736191/69554646-6edb1380-0fe5-11ea-8428-afd7bef09c15.JPG" width="100%">
|
||||
|
||||
### トッププレート、キースイッチ
|
||||
|
||||
写真のようにトッププレートにキースイッチをはめます。
|
||||
※ キースイッチの向きに気を付けてください。
|
||||
|
||||
<img alt="assembly-keyswitches-1" src="https://user-images.githubusercontent.com/736191/69554647-6edb1380-0fe5-11ea-9e17-d4d644f9a60c.JPG" width="100%">
|
||||
|
||||
キースイッチは3ピンのものをおすすめします。
|
||||
※ 5ピンを使用する場合でもプラスチックの足を切り離して3ピンにすることができます。
|
||||
|
||||
<img alt="assembly-keyswitches-2" src="https://user-images.githubusercontent.com/736191/69554648-6edb1380-0fe5-11ea-94fe-cd758f46cfd0.JPG" width="100%">
|
||||
|
||||
スイッチとPCBの間に隙間ができないようにしてはんだ付けを行います。
|
||||
|
||||
<img alt="assembly-keyswitches-3" src="https://user-images.githubusercontent.com/736191/69554652-700c4080-0fe5-11ea-8633-afae5e825d02.JPG" width="100%">
|
||||
<img alt="assembly-keyswitches-4" src="https://user-images.githubusercontent.com/736191/69554654-700c4080-0fe5-11ea-8514-9a46ba4da38c.JPG" width="100%">
|
||||
|
||||
### ProMicro 保護プレート、ボトムプレート
|
||||
|
||||
M2 9mm スペーサーを用いて ProMicro 保護プレートを取り付けます。
|
||||
|
||||
<img alt="assembly-plates-1" src="https://user-images.githubusercontent.com/736191/69554656-700c4080-0fe5-11ea-8083-b55fea60adc9.JPG" width="100%">
|
||||
|
||||
M2 7.5mm スペーサーを用いてボトムプレートを取り付けます。
|
||||
|
||||
<img alt="assembly-plates-2" src="https://user-images.githubusercontent.com/736191/69554660-70a4d700-0fe5-11ea-9c46-eb32c7589470.JPG" width="100%">
|
||||
|
||||
4つ角にゴム足を取り付けます。
|
||||
|
||||
<img alt="assembly-plates-3" src="https://user-images.githubusercontent.com/736191/69554661-70a4d700-0fe5-11ea-85c1-acae90ea7725.JPG" width="100%">
|
||||
|
||||
## 完成
|
||||
|
||||
キーキャップを取り付けて完成です。
|
||||
|
||||
<img alt="assembly-finished-1" src="https://user-images.githubusercontent.com/736191/69654854-d615c800-10b8-11ea-8903-ebf019d7b125.png" width="100%">
|
||||
<img alt="assembly-finished-2" src="https://user-images.githubusercontent.com/736191/69654882-df069980-10b8-11ea-8efe-069b68db3bc0.png" width="100%">
|
||||
|
||||
BIN
corne-ultralight/doc/v2/assets/build_bottom_foam.jpg
Normal file
BIN
corne-ultralight/doc/v2/assets/build_bottom_foam.jpg
Normal file
Binary file not shown.
|
After Width: | Height: | Size: 58 KiB |
BIN

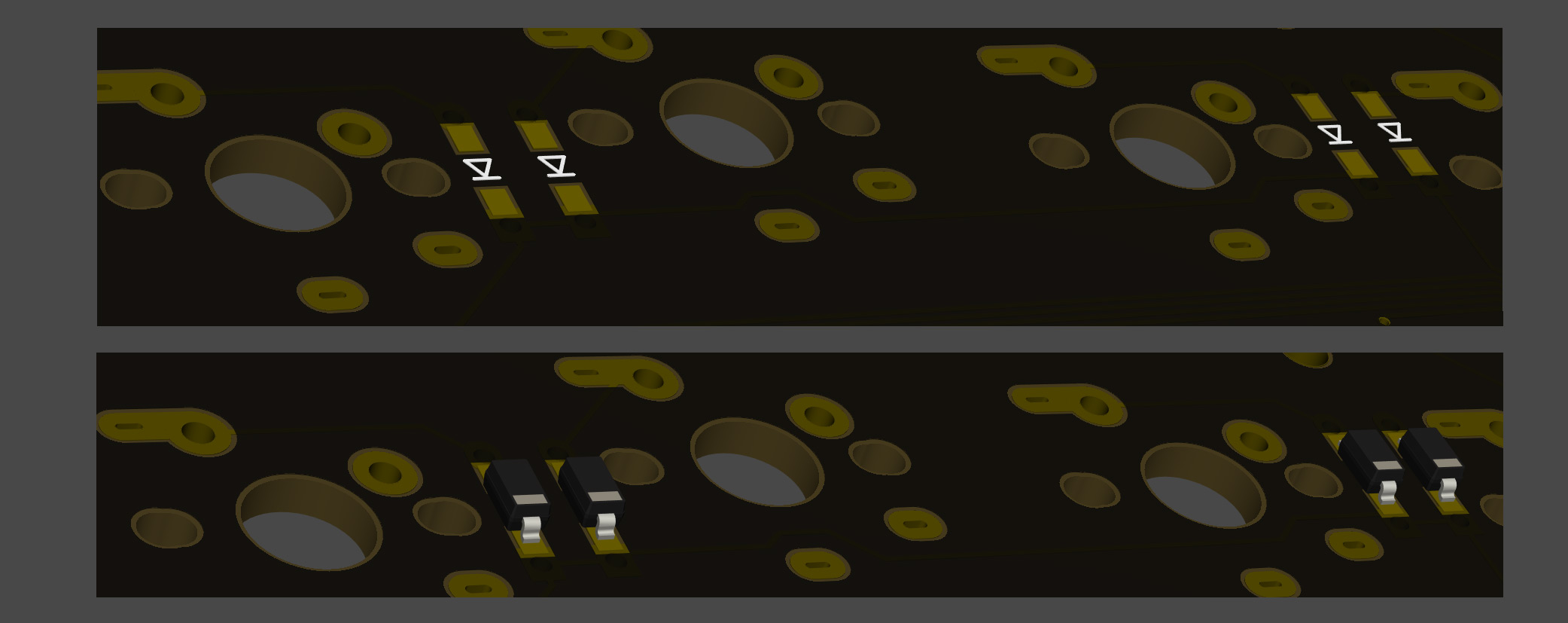

corne-ultralight/doc/v2/assets/build_diode.jpg
Normal file
BIN
corne-ultralight/doc/v2/assets/build_diode.jpg
Normal file
Binary file not shown.
|
After Width: | Height: | Size: 139 KiB |
BIN

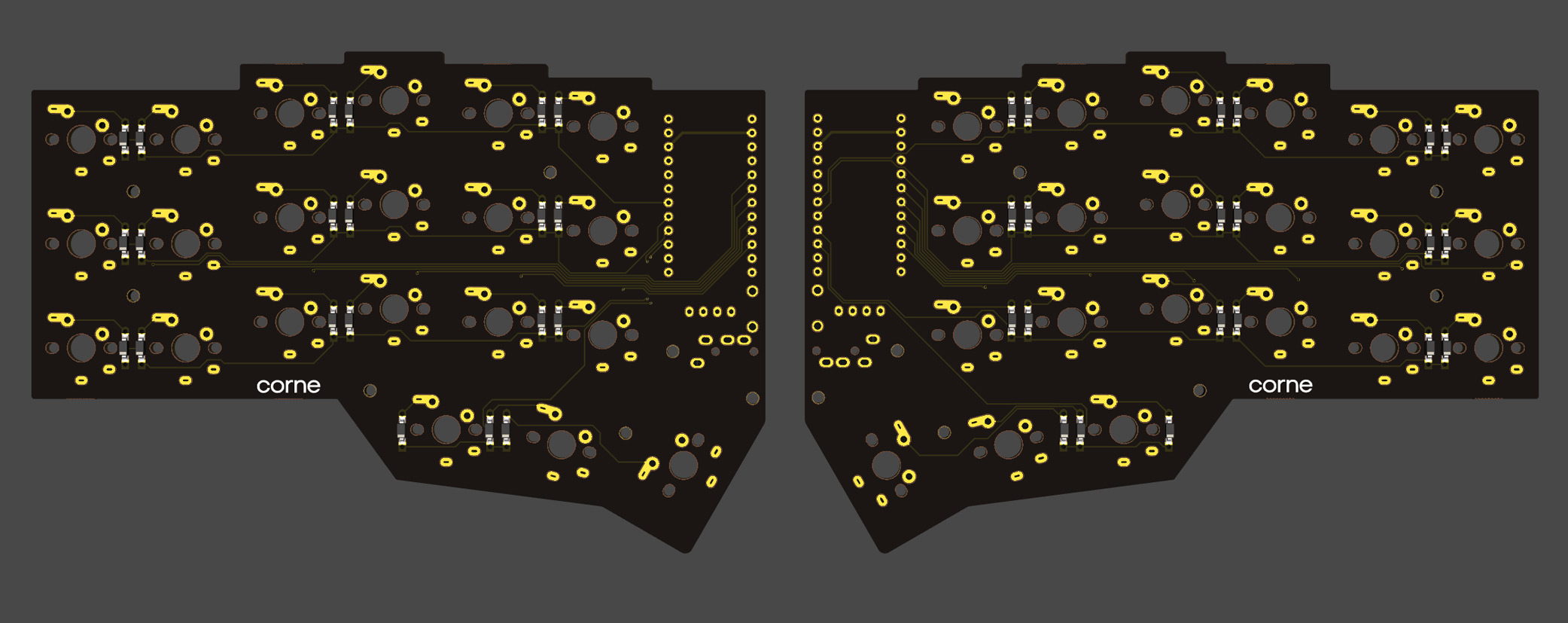

corne-ultralight/doc/v2/assets/build_diode_overview.jpg
Normal file
BIN
corne-ultralight/doc/v2/assets/build_diode_overview.jpg
Normal file
Binary file not shown.
|
After Width: | Height: | Size: 282 KiB |
BIN
corne-ultralight/doc/v2/assets/build_finish.jpg
Normal file
BIN
corne-ultralight/doc/v2/assets/build_finish.jpg
Normal file
Binary file not shown.
|
After Width: | Height: | Size: 284 KiB |
BIN
corne-ultralight/doc/v2/assets/build_oled.jpg
Normal file
BIN
corne-ultralight/doc/v2/assets/build_oled.jpg
Normal file
Binary file not shown.
|
After Width: | Height: | Size: 195 KiB |
BIN
corne-ultralight/doc/v2/assets/build_oled_plate_back.jpg
Normal file
BIN
corne-ultralight/doc/v2/assets/build_oled_plate_back.jpg
Normal file
Binary file not shown.
|
After Width: | Height: | Size: 184 KiB |
BIN
corne-ultralight/doc/v2/assets/build_oled_plate_front.jpg
Normal file
BIN
corne-ultralight/doc/v2/assets/build_oled_plate_front.jpg
Normal file
Binary file not shown.
|
After Width: | Height: | Size: 259 KiB |
BIN
corne-ultralight/doc/v2/assets/build_promicro.jpg
Normal file
BIN
corne-ultralight/doc/v2/assets/build_promicro.jpg
Normal file
Binary file not shown.
|
After Width: | Height: | Size: 141 KiB |
BIN
corne-ultralight/doc/v2/assets/build_promicro_conthrough.jpg
Normal file
BIN
corne-ultralight/doc/v2/assets/build_promicro_conthrough.jpg
Normal file
Binary file not shown.
|
After Width: | Height: | Size: 175 KiB |
BIN
corne-ultralight/doc/v2/assets/build_top_plate_switches.jpg
Normal file
BIN
corne-ultralight/doc/v2/assets/build_top_plate_switches.jpg
Normal file
Binary file not shown.
|
After Width: | Height: | Size: 284 KiB |
BIN
corne-ultralight/doc/v2/assets/build_trrs_reset_oled.jpg
Normal file
BIN
corne-ultralight/doc/v2/assets/build_trrs_reset_oled.jpg
Normal file
Binary file not shown.
|
After Width: | Height: | Size: 260 KiB |
BIN
corne-ultralight/doc/v2/assets/confirm_back.jpg
Normal file
BIN
corne-ultralight/doc/v2/assets/confirm_back.jpg
Normal file
Binary file not shown.
|
After Width: | Height: | Size: 273 KiB |
BIN
corne-ultralight/doc/v2/assets/confirm_front.jpg
Normal file
BIN
corne-ultralight/doc/v2/assets/confirm_front.jpg
Normal file
Binary file not shown.
|
After Width: | Height: | Size: 218 KiB |
BIN
corne-ultralight/doc/v2/assets/confirm_remove_frame.jpg
Normal file
BIN
corne-ultralight/doc/v2/assets/confirm_remove_frame.jpg
Normal file
Binary file not shown.
|
After Width: | Height: | Size: 102 KiB |
BIN

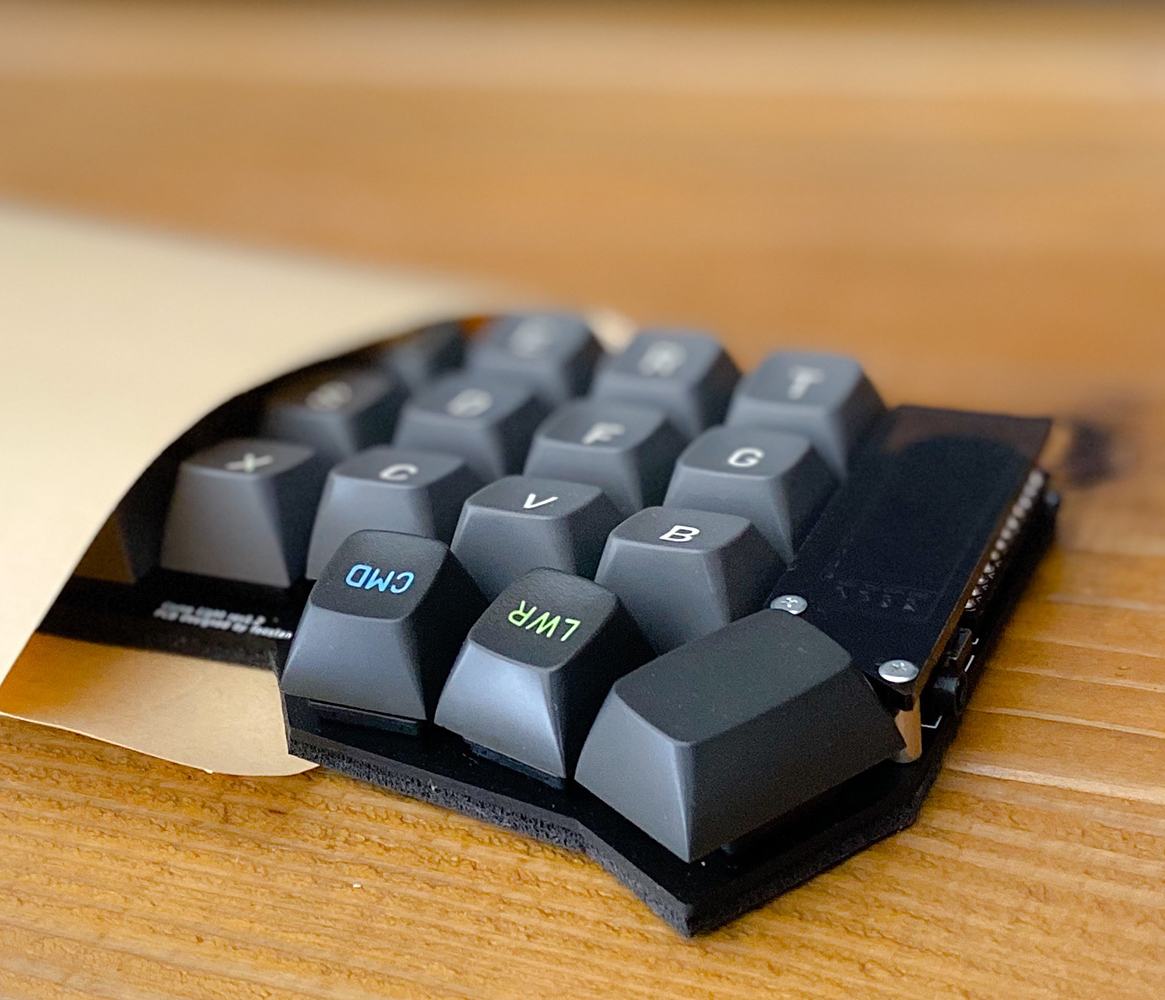

corne-ultralight/doc/v2/assets/corne-light-low-edition-001.jpg
Normal file
BIN
corne-ultralight/doc/v2/assets/corne-light-low-edition-001.jpg
Normal file
Binary file not shown.
|
After Width: | Height: | Size: 701 KiB |
BIN
corne-ultralight/doc/v2/assets/corne-light-low-edition-002.jpg
Normal file
BIN
corne-ultralight/doc/v2/assets/corne-light-low-edition-002.jpg
Normal file
Binary file not shown.
|
After Width: | Height: | Size: 738 KiB |
BIN
corne-ultralight/doc/v2/assets/corne-light-low-edition-003.jpg
Normal file
BIN
corne-ultralight/doc/v2/assets/corne-light-low-edition-003.jpg
Normal file
Binary file not shown.
|
After Width: | Height: | Size: 828 KiB |
208
corne-ultralight/doc/v2/buildguide_low_edition_en.md
Normal file
208
corne-ultralight/doc/v2/buildguide_low_edition_en.md
Normal file
@ -0,0 +1,208 @@
|
||||
# Build Guide
|
||||
|
||||
This is the build guide for Corne Light v2 Low edition.
|
||||
|
||||
|
||||
|
||||
|
||||
|
||||
## Parts
|
||||
|
||||
### Required
|
||||
|
||||
| Name | Count | Remarks |
|
||||
|:-|:-|:-|
|
||||
| PCB | 1 set | |
|
||||
| Top plate (acrylic) 2mm | 2 sheets | |
|
||||
| Bottom foam | 2 sheets | Special foam is cut out with a special mold |
|
||||
| OLED protective plate | 2 sheets | |
|
||||
| ProMicro | 2 sheets | |
|
||||
| TRRS jack | 2 | |
|
||||
| Tact switch | 2 | |
|
||||
| Diodes | 42 | Recommended SMD Parts |
|
||||
| Key switches | 42 | Kailh Choc v1 or v2 recommended |
|
||||
| Keycaps | 42 pcs | 1u 40 pcs, 1.5u 2 pcs |
|
||||
| Spacer M2 9mm | 4 pieces | |
|
||||
| Screw M2 4mm | 8 screws | |
|
||||
| TRRS (4 poles) cable | 1 | TRS (3 poles) cable is also acceptable |
|
||||
| Micro USB cable | 1 | |
|
||||
|
||||
### Optional
|
||||
|
||||
| Name | Count | Remarks |
|
||||
|:-|:-|:-|
|
||||
| OLED module | 2 sheets | |
|
||||
| Pin header for OLED module 4 series 1.5mm | 2 | |
|
||||
| 4 pin sockets for OLED module 2.5mm | 2 | |
|
||||
|
||||
## Advance preparation
|
||||
|
||||
If you build the firmware yourself,
|
||||
it takes time to prepare the environment,
|
||||
so it is recommended to start first. \
|
||||
See <https://github.com/foostan/crkbd/blob/master/doc/firmware_en.md>
|
||||
for more information.
|
||||
|
||||
## Verification
|
||||
|
||||

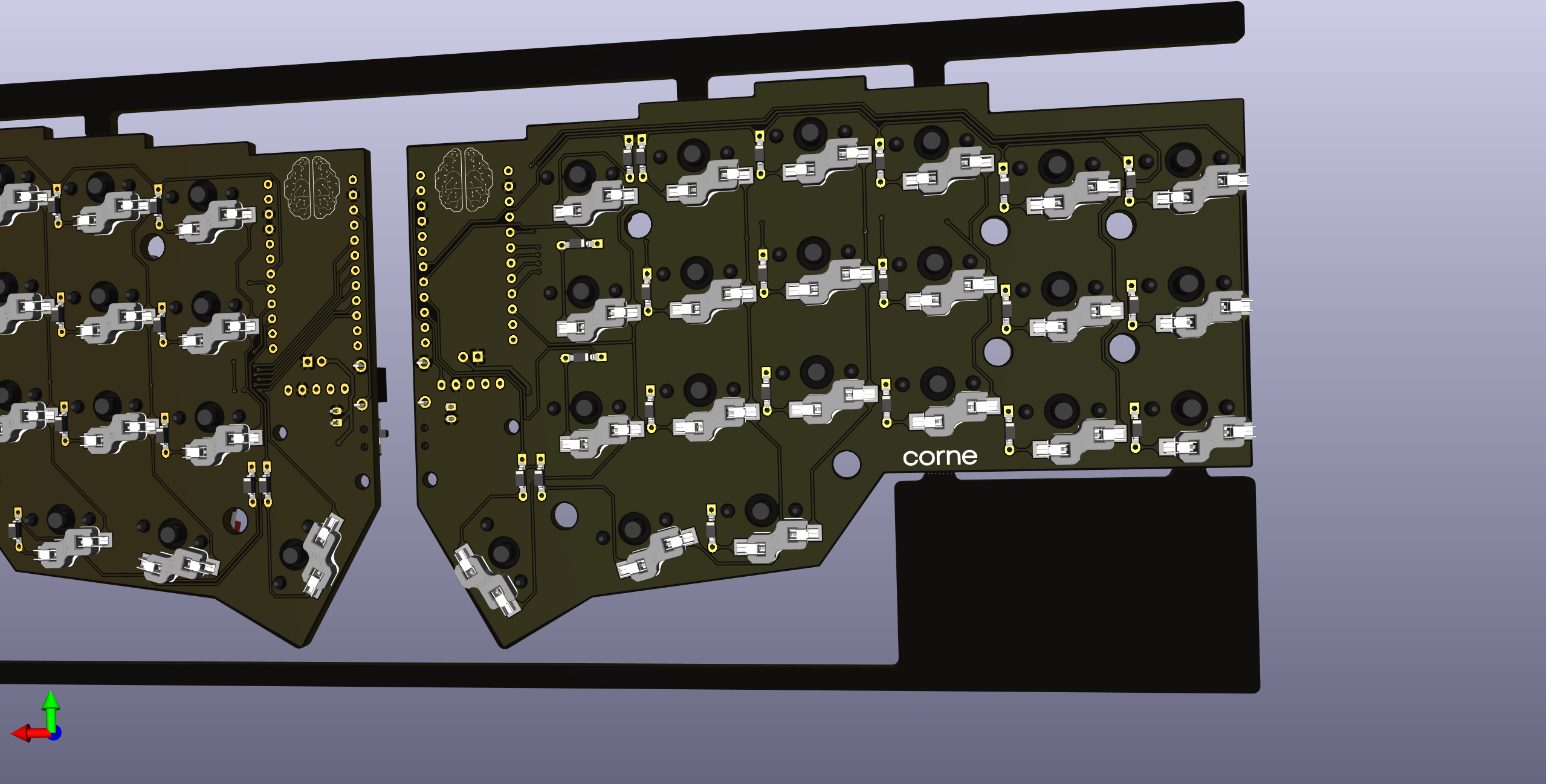

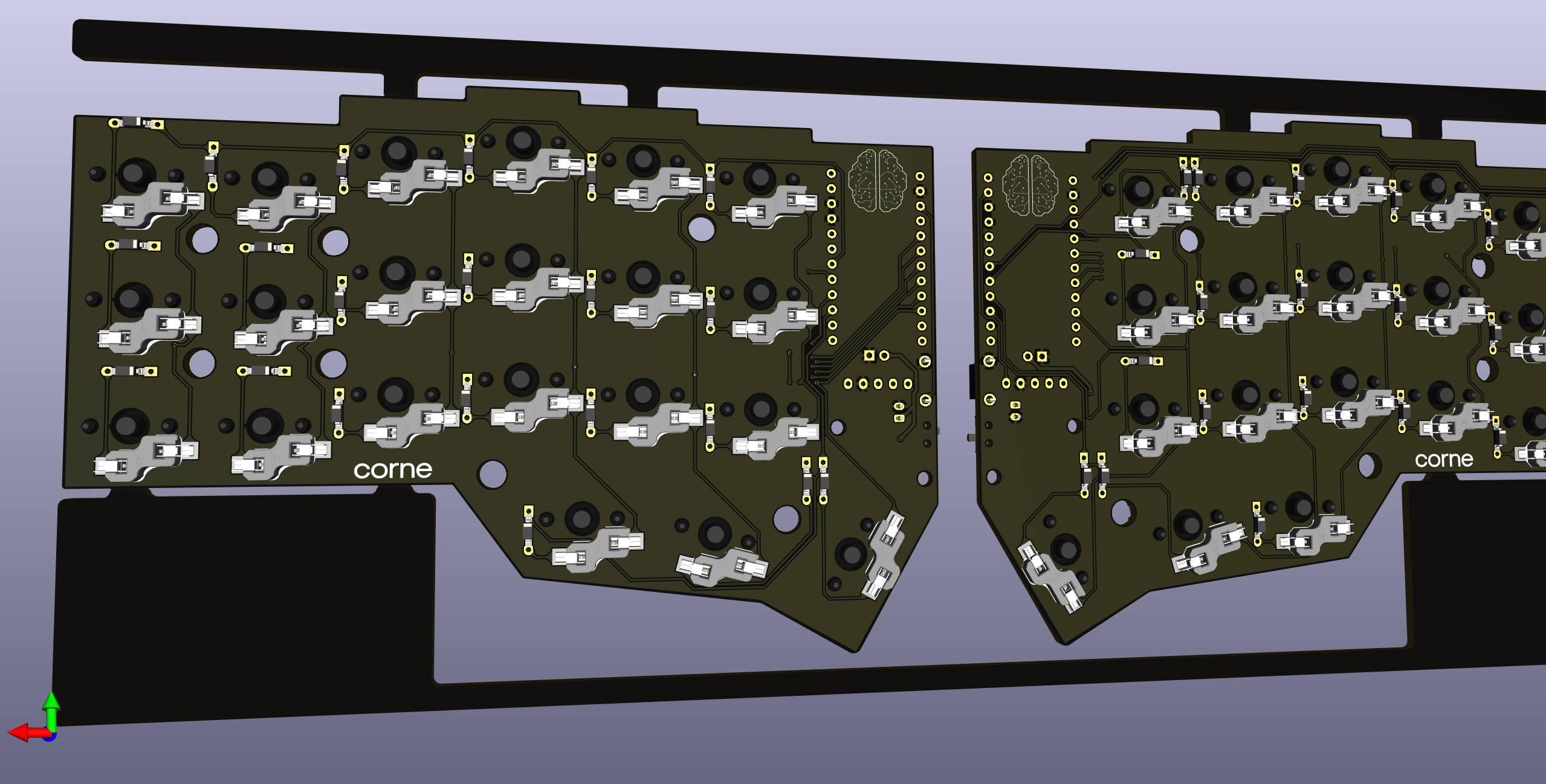

The PCB for Corne Light v2 is as follows.
|
||||
Make sure it is the same as your PCB.
|
||||
|
||||
|
||||
|
||||
|
||||
|
||||
The PCB comes with a frame for manufacturing reasons.
|
||||
You can fold it by hand to remove it, but if it is difficult,
|
||||
make a cut in the joint \* with a cutter or similar,
|
||||
to make it easier to remove.
|
||||
In addition, the joint can be cleaned with a file.
|
||||
|
||||
\* *Joint part: There are a total of 8 parts,
|
||||
which are marked in red in the image below.*
|
||||
|
||||
|
||||
|
||||
## Assembly
|
||||
|
||||
### Diodes
|
||||
|
||||
Solder diodes for SMD components.
|
||||
Since SMD parts are very small,
|
||||
it is convenient to have tweezers and counter-acting tweezers.
|
||||
|
||||
**The diode has a fixed mounting direction**,
|
||||
so solder it so that the "|" mark on the part faces the "|" on the diode mark "|◁".
|
||||
In addition, Corne's PCB has all the same diode mounting orientations.
|
||||
|
||||
|
||||
|
||||
<details>
|
||||
<summary>TIPS: Tips for installing SMD parts</summary>
|
||||
|
||||
The trick is to attach the SMD parts, but first, as a spare solder,
|
||||
put the solder on only one side of the pad.
|
||||
|
||||
|
||||
|
||||
Next, solder one leg of the diode so that the spare solder melts.
|
||||
At this time, it is recommended to use reverse-action tweezers,
|
||||
because you can hold the chip parts firmly without exerting force
|
||||
and you can concentrate on alignment and soldering.
|
||||
Also, if the soldering iron is too hot or the solder is touched too much,
|
||||
the flux contained in the solder may evaporate and form a clean pile of solder,
|
||||
but it can be repaired later,
|
||||
so at this point you should only care about attaching parts.
|
||||
It's okay.
|
||||
|
||||
|
||||
|
||||
It is okay if the diode does not float when viewed from the side
|
||||
when one foot is attached.
|
||||
If it floats, press the diode with tweezers or your fingers
|
||||
and reheat the soldered part with a soldering iron to clean it.
|
||||
|
||||
|
||||
|
||||
Then solder the other one.
|
||||
Be careful not to apply too much,
|
||||
as a small amount of solder is sufficient.
|
||||
If you apply too much, you can remove it with a blotting wire
|
||||
or by scooping it with a soldering iron.
|
||||
|
||||
If the amount of solder on the preliminary solder side is small,
|
||||
additional soldering is performed, and if it is a mountain,
|
||||
apply flux from above and heat it to clean it.
|
||||
|
||||
|
||||
|
||||
</details>
|
||||
|
||||
The diode is completed by soldering 42 pieces in total on the left and right.
|
||||
|
||||
|
||||
|
||||
### TRRS jack, reset switch, pin socket for OLED
|
||||
|
||||
Solder the TRRS jack, reset switch (tact switch),
|
||||
and OLED pin socket as shown in the picture below.
|
||||
|
||||
|
||||
|
||||
Since it is a part that easily slips off,
|
||||
you can solder it while holding the part by hand,
|
||||
or fix it with masking tape and then solder it.
|
||||
|
||||
### ProMicro
|
||||
|
||||
Solder ProMicro in the following orientation
|
||||
|
||||
|
||||
|
||||
If you use spring-loaded pin headers (e.g. Conthrough),
|
||||
you do not need to solder the back side.
|
||||
Please refer to the [Helix Build Guide](
|
||||
https://github.com/MakotoKurauchi/helix/blob/master/Doc/buildguide_en.md#pro-micro)
|
||||
for details on how to use spring-loaded pin headers.
|
||||
|
||||
|
||||
|
||||
### OLED module
|
||||
|
||||
Insert the pin header into the pin socket for OLED first,
|
||||
and then solder the pin header and OLED module.
|
||||
At this time, the OLED module is easy to float,
|
||||
so be careful not to float it while pressing it with your finger.
|
||||
|
||||
|
||||
|
||||
### Firmware
|
||||
|
||||
Write the firmware to ProMicro by referring to the following. \
|
||||
<https://github.com/foostan/crkbd/blob/master/doc/firmware_en.md>
|
||||
|
||||
### Operation check
|
||||
|
||||
We recommend that you check the operation when the ProMicro and OLED module are attached.
|
||||
If you do it at the very end, it will be difficult to isolate the problem.
|
||||
|
||||
To check the operation,
|
||||
connect the left hand side to the PC with MicroUSB,
|
||||
and connect the left hand side and the right hand side with the TRRS cable.
|
||||
Since there may be defects such as jacks,
|
||||
be sure to connect the left and right instead of one by one
|
||||
before checking the operation.
|
||||
If it is done correctly so far,
|
||||
if you short the pad to attach the PCB socket with tweezers etc.,
|
||||
the key pressed on the OLED module will be displayed.
|
||||
|
||||
### Top plate, switch
|
||||
|
||||
After attaching the key switch to the top plate, solder the key switch.
|
||||
If you attach all the key switches to the top plate first,
|
||||
it will be more difficult to attach the switches to the board,
|
||||
so it is easier to attach only the end key switches first.
|
||||
|
||||
|
||||

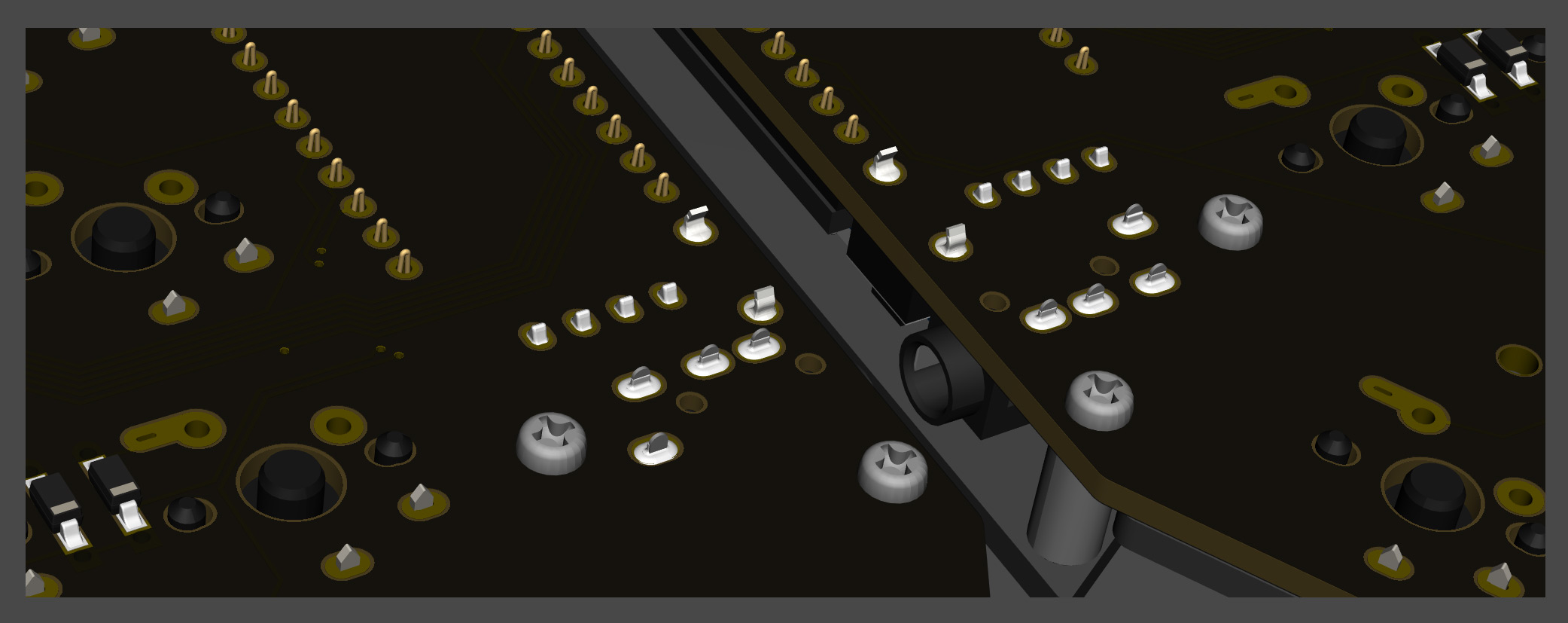

### OLED protective plate
|
||||
|
||||
Attach the OLED protective plate with M2 9mm spacers and M2 screws.
|
||||
|
||||
|
||||
|
||||
|
||||
Especially for the screws on the back side,
|
||||
tighten them firmly to attach the bottom foam after this.
|
||||
|
||||
### Bottom form
|
||||
|
||||
Finally, paste the bottom form.
|
||||
This foam has an adhesive surface on one side
|
||||
and a non-slip surface on the other side.
|
||||
Stick the adhesive side firmly to the PCB.
|
||||
|
||||
|
||||
|
||||
That's it.
|
||||
|
||||
|
||||
165
corne-ultralight/doc/v2/buildguide_low_edition_jp.md
Normal file
165
corne-ultralight/doc/v2/buildguide_low_edition_jp.md
Normal file
@ -0,0 +1,165 @@
|
||||
# Build Guide
|
||||
|
||||
こちらは Corne Light v2 Low edition のビルドガイドになります。
|
||||
|
||||
|
||||
|
||||
|
||||
|
||||
## 部品
|
||||
|
||||
### 必須
|
||||
|
||||
| 名前 | 数 | 備考 |
|
||||
|:-|:-|:-|
|
||||
| PCB | 1セット | |
|
||||
| トッププレート(アクリル) 2mm | 2枚 | |
|
||||
| ボトムフォーム | 2枚 | 特殊なフォームを専用の型で切り出しています |
|
||||
| OLED保護プレート | 2枚 | |
|
||||
| ProMicro | 2枚 | |
|
||||
| TRRSジャック | 2個 | |
|
||||
| タクトスイッチ | 2個 | |
|
||||
| ダイオード | 42本 | SMD部品推奨 |
|
||||
| キースイッチ | 42個 | Kailh Choc v1 or v2 推奨 |
|
||||
| キーキャップ | 42個 | 1u 40個、1.5u 2個 |
|
||||
| スペーサー M2 9mm | 4本 | |
|
||||
| ネジ M2 4mm | 8本 | |
|
||||
| TRRS(4極)ケーブル | 1本 | TRS(3極)ケーブルでも可 |
|
||||
| Micro USBケーブル | 1本 | |
|
||||
|
||||
### オプション
|
||||
|
||||
| 名前 | 数 | 備考 |
|
||||
|:-|:-|:-|
|
||||
| OLEDモジュール | 2枚 | |
|
||||
| OLEDモジュール用ピンヘッダ 4連 1.5mm | 2つ | |
|
||||
| OLEDモジュール用ピンソケット 4連 2.5mm | 2つ | |
|
||||
|
||||
## 事前準備
|
||||
|
||||
ファームウェアを自分でビルドする場合は環境を整備するのに時間がかかるのではじめに取り掛かっておくことをおすすめします。\
|
||||
詳しくは <https://github.com/foostan/crkbd/blob/master/doc/firmware_jp.md> を参照してください。
|
||||
|
||||
## 確認
|
||||
|
||||
Corne Light v2 のPCBは以下のものになります。お手持ちのPCBと同一のものかご確認ください。
|
||||
|
||||
|
||||
|
||||
|
||||
|
||||
PCBは製造の都合上フレームが付いた状態となっています。
|
||||
手で折って外すことができますが、難しい場合は接合部分※にカッター等で切り込みを入れると外しやすくなります。
|
||||
また、接合部分はヤスリ等できれいにすることができます。
|
||||
|
||||
※ 接合部分: 下記画像の赤で記した部分のこと、計8箇所あります
|
||||
|
||||
|
||||
|
||||
## 組み立て
|
||||
|
||||
### ダイオード
|
||||
|
||||
SMD部品のダイオードのはんだづけを行います。
|
||||
SMD部品は非常に小さいためピンセット及び逆作用ピンセットがあると便利です。
|
||||
|
||||
**ダイオードは取り付ける向きが決まっていて**、部品の「|」印が、ダイオードマーク「|◁」の「|」の方に向けるようにはんだづけを行います。
|
||||
なお、Corne の PCB はダイオードの取り付け向きがすべて統一されています。
|
||||
|
||||
|
||||
|
||||
<details>
|
||||
<summary>TIPS: SMD部品を取り付けるコツ</summary>
|
||||
|
||||
SMD部品を取り付けるコツですが、まずは予備ハンダとしてパットの片側のみにハンダを盛ります。
|
||||
|
||||
|
||||
|
||||
次に予備ハンダを溶かすようにしてダイオードの片足をはんだ付けします。
|
||||
このとき、逆作用ピンセットを利用すると力を入れずともチップ部品をしっかりと持つことができ、位置合わせとはんだづけに集中できるのでおすすめです。
|
||||
またはんだごてがあつすぎたり、はんだを触りすぎたりするとはんだに含まれるフラックスが気化してきれいにはんだの山ができることがありますが、あとで修復できるのでこの時点ではパーツを付けることだけを意識すれば大丈夫です。
|
||||
|
||||
|
||||
|
||||
片足をつけた段階で横から見てダイオードが浮いていなければ大丈夫です。浮いてしまった場合はダイオードをピンセットや指で押さえつけながらはんだごてではんだづけした部分を再度熱すればきれいになります。
|
||||
|
||||
|
||||
|
||||
次にもう片方をはんだづけします。少量のはんだで十分なのでつけすぎに注意します。
|
||||
つけすぎてしまった場合は吸い取り線で取るか、はんだごてですくうようにすれば取れます。
|
||||
|
||||
また予備はんだ側のはんだの量が少ない場合は追加ではんだづけを重ねて行い、山になっている場合はフラックスを上から塗って熱すればきれいになります。
|
||||
|
||||
|
||||
|
||||
</details>
|
||||
|
||||
左右合わせて42個をはんだづけしてダイオードは完了です。
|
||||
|
||||
|
||||
|
||||
### TRRSジャック、リセットスイッチ、OLED用ピンソケット
|
||||
|
||||
下記の写真通りにTRRSジャック、リセットスイッチ(タクトスイッチ)、OLED用ピンソケットをはんだづけします。
|
||||
|
||||
|
||||
|
||||
ずれやすい部品なので、手で部品を抑えながらはんだづけするか、マスキングテープ等で固定してからはんだづけするときれいに付きます。
|
||||
|
||||
### ProMicro
|
||||
|
||||
ProMicroを下記のような向きではんだ付けします
|
||||
|
||||
|
||||
|
||||
なお、コンスルーを利用する場合は裏側のはんだ付けをする必要はありません。
|
||||
コンスルーの詳しい利用方法は [Helix のビルドガイド](https://github.com/MakotoKurauchi/helix/blob/master/Doc/buildguide_jp.md#pro-micro)をご参照ください。
|
||||
|
||||
|
||||
|
||||
### OLEDモジュール
|
||||
|
||||
OLED用のピンソケットにピンヘッダを先に差し込み、その後からピンヘッダとOLEDモジュールをはんだづけします。
|
||||
このときOLEDモジュールが浮きやすいので指で押さえつけながら浮かないように気をつけます。
|
||||
|
||||
|
||||
|
||||
### ファームウェア
|
||||
|
||||
下記を参照しファームウェアをProMicroに書き込みます。\
|
||||
<https://github.com/foostan/crkbd/blob/master/doc/firmware_jp.md>
|
||||
|
||||
### 動作確認
|
||||
|
||||
ProMicroとOLEDモジュールを付けた段階で動作確認をすることをおすすめします。
|
||||
一番最後にやると問題の切り分けが難しくなります。
|
||||
|
||||
動作確認は左手側はMicroUSBでPCとつなぎ、左手側と右手側をTRRSケーブルで接続させて行います。ジャック等の不良等もありえるので、片方ずつではなく必ず左右を接続させてから動作確認をしてください。ここまで正しくできていれば、PCBソケットを取り付けるパットをピンセット等でショートさせるとOLEDモジュールに押されたキーが表示されます。
|
||||
|
||||
### トッププレート、スイッチ
|
||||
|
||||
トッププレートにキースイッチに取り付けた後、キースイッチをはんだ付けします。
|
||||
先にすべてのキースイッチをトッププレートに取り付けてしまうと、スイッチを基板にはめる難易度が上がってしまうため、先に端のキースイッチのみを取り付ける方が簡単です。
|
||||
|
||||
|
||||
### OLED保護プレート
|
||||
|
||||
M2 9mm のスペーサーと M2 ネジで OLED 保護プレートを取り付けます。
|
||||
|
||||
|
||||
|
||||
|
||||
特に裏側のネジについては、このあとボトムフォームを貼り付けるためしっかりと締めてください。
|
||||
|
||||
### ボトムフォーム
|
||||
|
||||
最後にボトムフォームを貼り付けます。
|
||||
このフォームは片側が粘着面、もう片側が滑り止め面になっています。
|
||||
粘着面をPCBにしっかいと貼り付けてください。
|
||||
|
||||
|
||||
|
||||
以上で完成です。
|
||||
|
||||
|
||||
|
||||
BIN
corne-ultralight/pcb/backups/corne-ultralight.zip
Normal file
BIN
corne-ultralight/pcb/backups/corne-ultralight.zip
Normal file
Binary file not shown.
BIN
corne-ultralight/pcb/backups/corne-ultralight_final.zip
Normal file
BIN
corne-ultralight/pcb/backups/corne-ultralight_final.zip
Normal file
Binary file not shown.
122387
corne-ultralight/pcb/corne-ultralight.kicad_pcb
Normal file
122387
corne-ultralight/pcb/corne-ultralight.kicad_pcb
Normal file
File diff suppressed because it is too large
Load Diff
76
corne-ultralight/pcb/corne-ultralight.kicad_prl
Normal file
76
corne-ultralight/pcb/corne-ultralight.kicad_prl
Normal file
@ -0,0 +1,76 @@
|
||||
{
|
||||
"board": {
|
||||
"active_layer": 49,
|
||||
"active_layer_preset": "",
|
||||
"auto_track_width": true,
|
||||
"hidden_netclasses": [],
|
||||
"hidden_nets": [],
|
||||
"high_contrast_mode": 0,
|
||||
"net_color_mode": 1,
|
||||
"opacity": {
|
||||
"images": 0.6,
|
||||
"pads": 1.0,
|
||||
"tracks": 1.0,
|
||||
"vias": 1.0,
|
||||
"zones": 0.6
|
||||
},
|
||||
"ratsnest_display_mode": 0,
|
||||
"selection_filter": {
|
||||
"dimensions": true,
|
||||
"footprints": true,
|
||||
"graphics": true,
|
||||
"keepouts": true,
|
||||
"lockedItems": true,
|
||||
"otherItems": true,
|
||||
"pads": true,
|
||||
"text": true,
|
||||
"tracks": true,
|
||||
"vias": true,
|
||||
"zones": true
|
||||
},
|
||||
"visible_items": [
|
||||
0,
|
||||
1,
|
||||
2,
|
||||
3,
|
||||
4,
|
||||
5,
|
||||
8,
|
||||
9,
|
||||
10,
|
||||
11,
|
||||
12,
|
||||
13,
|
||||
15,
|
||||
16,
|
||||
17,
|
||||
18,
|
||||
19,
|
||||
20,
|
||||
21,
|
||||
22,
|
||||
24,
|
||||
25,
|
||||
26,
|
||||
27,
|
||||
28,
|
||||
29,
|
||||
30,
|
||||
32,
|
||||
33,
|
||||
34,
|
||||
35,
|
||||
39,
|
||||
40
|
||||
],
|
||||
"visible_layers": "fffffff_7ffffffe",
|
||||
"zone_display_mode": 0
|
||||
},
|
||||
"meta": {
|
||||
"filename": "corne-ultralight.kicad_prl",
|
||||
"version": 3
|
||||
},
|
||||
"project": {
|
||||
"files": []
|
||||
}
|
||||
}
|
||||
556
corne-ultralight/pcb/corne-ultralight.kicad_pro
Normal file
556
corne-ultralight/pcb/corne-ultralight.kicad_pro
Normal file
@ -0,0 +1,556 @@
|
||||
{
|
||||
"board": {
|
||||
"3dviewports": [],
|
||||
"design_settings": {
|
||||
"defaults": {
|
||||
"board_outline_line_width": 0.19999999999999998,
|
||||
"copper_line_width": 0.15,
|
||||
"copper_text_italic": false,
|
||||
"copper_text_size_h": 1.5,
|
||||
"copper_text_size_v": 1.5,
|
||||
"copper_text_thickness": 0.3,
|
||||
"copper_text_upright": false,
|
||||
"courtyard_line_width": 0.049999999999999996,
|
||||
"dimension_precision": 4,
|
||||
"dimension_units": 3,
|
||||
"dimensions": {
|
||||
"arrow_length": 1270000,
|
||||
"extension_offset": 500000,
|
||||
"keep_text_aligned": true,
|
||||
"suppress_zeroes": false,
|
||||
"text_position": 0,
|
||||
"units_format": 1
|
||||
},
|
||||
"fab_line_width": 0.09999999999999999,
|
||||
"fab_text_italic": false,
|
||||
"fab_text_size_h": 1.0,
|
||||
"fab_text_size_v": 1.0,
|
||||
"fab_text_thickness": 0.15,
|
||||
"fab_text_upright": false,
|
||||
"other_line_width": 0.09999999999999999,
|
||||
"other_text_italic": false,
|
||||
"other_text_size_h": 1.0,
|
||||
"other_text_size_v": 1.0,
|
||||
"other_text_thickness": 0.15,
|
||||
"other_text_upright": false,
|
||||
"pads": {
|
||||
"drill": 1.0,
|
||||
"height": 1.7,
|
||||
"width": 1.7
|
||||
},
|
||||
"silk_line_width": 0.15,
|
||||
"silk_text_italic": false,
|
||||
"silk_text_size_h": 1.0,
|
||||
"silk_text_size_v": 1.0,
|
||||
"silk_text_thickness": 0.15,
|
||||
"silk_text_upright": false,
|
||||
"zones": {
|
||||
"45_degree_only": false,
|
||||
"min_clearance": 0.0
|
||||
}
|
||||
},
|
||||
"diff_pair_dimensions": [
|
||||
{
|
||||
"gap": 0.0,
|
||||
"via_gap": 0.0,
|
||||
"width": 0.0
|
||||
}
|
||||
],
|
||||
"drc_exclusions": [],
|
||||
"meta": {
|
||||
"filename": "board_design_settings.json",
|
||||
"version": 2
|
||||
},
|
||||
"rule_severities": {
|
||||
"annular_width": "error",
|
||||
"clearance": "error",
|
||||
"connection_width": "warning",
|
||||
"copper_edge_clearance": "ignore",
|
||||
"copper_sliver": "warning",
|
||||
"courtyards_overlap": "error",
|
||||
"diff_pair_gap_out_of_range": "error",
|
||||
"diff_pair_uncoupled_length_too_long": "error",
|
||||
"drill_out_of_range": "error",
|
||||
"duplicate_footprints": "warning",
|
||||
"extra_footprint": "warning",
|
||||
"footprint": "error",
|
||||
"footprint_type_mismatch": "error",
|
||||
"hole_clearance": "error",
|
||||
"hole_near_hole": "ignore",
|
||||
"invalid_outline": "error",
|
||||
"isolated_copper": "warning",
|
||||
"item_on_disabled_layer": "error",
|
||||
"items_not_allowed": "error",
|
||||
"length_out_of_range": "error",
|
||||
"lib_footprint_issues": "warning",
|
||||
"lib_footprint_mismatch": "warning",
|
||||
"malformed_courtyard": "error",
|
||||
"microvia_drill_out_of_range": "error",
|
||||
"missing_courtyard": "ignore",
|
||||
"missing_footprint": "warning",
|
||||
"net_conflict": "warning",
|
||||
"npth_inside_courtyard": "ignore",
|
||||
"padstack": "error",
|
||||
"pth_inside_courtyard": "ignore",
|
||||
"shorting_items": "error",
|
||||
"silk_edge_clearance": "warning",
|
||||
"silk_over_copper": "warning",
|
||||
"silk_overlap": "warning",
|
||||
"skew_out_of_range": "error",
|
||||
"solder_mask_bridge": "error",
|
||||
"starved_thermal": "error",
|
||||
"text_height": "warning",
|
||||
"text_thickness": "warning",
|
||||
"through_hole_pad_without_hole": "error",
|
||||
"too_many_vias": "error",
|
||||
"track_dangling": "warning",
|
||||
"track_width": "error",
|
||||
"tracks_crossing": "error",
|
||||
"unconnected_items": "error",
|
||||
"unresolved_variable": "error",
|
||||
"via_dangling": "warning",
|
||||
"zones_intersect": "error"
|
||||
},
|
||||
"rule_severitieslegacy_courtyards_overlap": true,
|
||||
"rule_severitieslegacy_no_courtyard_defined": false,
|
||||
"rules": {
|
||||
"allow_blind_buried_vias": false,
|
||||
"allow_microvias": false,
|
||||
"max_error": 0.005,
|
||||
"min_clearance": 0.0,
|
||||
"min_connection": 0.0,
|
||||
"min_copper_edge_clearance": 0.09999999999999999,
|
||||
"min_hole_clearance": 0.25,
|
||||
"min_hole_to_hole": 0.25,
|
||||
"min_microvia_diameter": 0.19999999999999998,
|
||||
"min_microvia_drill": 0.09999999999999999,
|
||||
"min_resolved_spokes": 2,
|
||||
"min_silk_clearance": 0.0,
|
||||
"min_text_height": 0.7999999999999999,
|
||||
"min_text_thickness": 0.08,
|
||||
"min_through_hole_diameter": 0.3,
|
||||
"min_track_width": 0.19999999999999998,
|
||||
"min_via_annular_width": 0.049999999999999996,
|
||||
"min_via_diameter": 0.39999999999999997,
|
||||
"solder_mask_to_copper_clearance": 0.005,
|
||||
"use_height_for_length_calcs": true
|
||||
},
|
||||
"teardrop_options": [
|
||||
{
|
||||
"td_allow_use_two_tracks": true,
|
||||
"td_curve_segcount": 5,
|
||||
"td_on_pad_in_zone": false,
|
||||
"td_onpadsmd": true,
|
||||
"td_onroundshapesonly": false,
|
||||
"td_ontrackend": false,
|
||||
"td_onviapad": true
|
||||
}
|
||||
],
|
||||
"teardrop_parameters": [
|
||||
{
|
||||
"td_curve_segcount": 5,
|
||||
"td_height_ratio": 1.0,
|
||||
"td_length_ratio": 0.5,
|
||||
"td_maxheight": 2.0,
|
||||
"td_maxlen": 1.0,
|
||||
"td_target_name": "td_round_shape",
|
||||
"td_width_to_size_filter_ratio": 0.9
|
||||
},
|
||||
{
|
||||
"td_curve_segcount": 5,
|
||||
"td_height_ratio": 1.0,
|
||||
"td_length_ratio": 0.5,
|
||||
"td_maxheight": 2.0,
|
||||
"td_maxlen": 1.0,
|
||||
"td_target_name": "td_rect_shape",
|
||||
"td_width_to_size_filter_ratio": 0.9
|
||||
},
|
||||
{
|
||||
"td_curve_segcount": 5,
|
||||
"td_height_ratio": 1.0,
|
||||
"td_length_ratio": 0.5,
|
||||
"td_maxheight": 2.0,
|
||||
"td_maxlen": 1.0,
|
||||
"td_target_name": "td_track_end",
|
||||
"td_width_to_size_filter_ratio": 0.9
|
||||
}
|
||||
],
|
||||
"track_widths": [
|
||||
0.0,
|
||||
0.2032,
|
||||
0.254,
|
||||
0.5,
|
||||
0.508
|
||||
],
|
||||
"via_dimensions": [
|
||||
{
|
||||
"diameter": 0.0,
|
||||
"drill": 0.0
|
||||
}
|
||||
],
|
||||
"zones_allow_external_fillets": false,
|
||||
"zones_use_no_outline": true
|
||||
},
|
||||
"layer_presets": [],
|
||||
"viewports": []
|
||||
},
|
||||
"boards": [],
|
||||
"cvpcb": {
|
||||
"equivalence_files": []
|
||||
},
|
||||
"erc": {
|
||||
"erc_exclusions": [],
|
||||
"meta": {
|
||||
"version": 0
|
||||
},
|
||||
"pin_map": [
|
||||
[
|
||||
0,
|
||||
0,
|
||||
0,
|
||||
0,
|
||||
0,
|
||||
0,
|
||||
1,
|
||||
0,
|
||||
0,
|
||||
0,
|
||||
0,
|
||||
2
|
||||
],
|
||||
[
|
||||
0,
|
||||
2,
|
||||
0,
|
||||
1,
|
||||
0,
|
||||
0,
|
||||
1,
|
||||
0,
|
||||
2,
|
||||
2,
|
||||
2,
|
||||
2
|
||||
],
|
||||
[
|
||||
0,
|
||||
0,
|
||||
0,
|
||||
0,
|
||||
0,
|
||||
0,
|
||||
1,
|
||||
0,
|
||||
1,
|
||||
0,
|
||||
1,
|
||||
2
|
||||
],
|
||||
[
|
||||
0,
|
||||
1,
|
||||
0,
|
||||
0,
|
||||
0,
|
||||
0,
|
||||
1,
|
||||
1,
|
||||
2,
|
||||
1,
|
||||
1,
|
||||
2
|
||||
],
|
||||
[
|
||||
0,
|
||||
0,
|
||||
0,
|
||||
0,
|
||||
0,
|
||||
0,
|
||||
1,
|
||||
0,
|
||||
0,
|
||||
0,
|
||||
0,
|
||||
2
|
||||
],
|
||||
[
|
||||
0,
|
||||
0,
|
||||
0,
|
||||
0,
|
||||
0,
|
||||
0,
|
||||
0,
|
||||
0,
|
||||
0,
|
||||
0,
|
||||
0,
|
||||
2
|
||||
],
|
||||
[
|
||||
1,
|
||||
1,
|
||||
1,
|
||||
1,
|
||||
1,
|
||||
0,
|
||||
1,
|
||||
1,
|
||||
1,
|
||||
1,
|
||||
1,
|
||||
2
|
||||
],
|
||||
[
|
||||
0,
|
||||
0,
|
||||
0,
|
||||
1,
|
||||
0,
|
||||
0,
|
||||
1,
|
||||
0,
|
||||
0,
|
||||
0,
|
||||
0,
|
||||
2
|
||||
],
|
||||
[
|
||||
0,
|
||||
2,
|
||||
1,
|
||||
2,
|
||||
0,
|
||||
0,
|
||||
1,
|
||||
0,
|
||||
2,
|
||||
2,
|
||||
2,
|
||||
2
|
||||
],
|
||||
[
|
||||
0,
|
||||
2,
|
||||
0,
|
||||
1,
|
||||
0,
|
||||
0,
|
||||
1,
|
||||
0,
|
||||
2,
|
||||
0,
|
||||
0,
|
||||
2
|
||||
],
|
||||
[
|
||||
0,
|
||||
2,
|
||||
1,
|
||||
1,
|
||||
0,
|
||||
0,
|
||||
1,
|
||||
0,
|
||||
2,
|
||||
0,
|
||||
0,
|
||||
2
|
||||
],
|
||||
[
|
||||
2,
|
||||
2,
|
||||
2,
|
||||
2,
|
||||
2,
|
||||
2,
|
||||
2,
|
||||
2,
|
||||
2,
|
||||
2,
|
||||
2,
|
||||
2
|
||||
]
|
||||
],
|
||||
"rule_severities": {
|
||||
"bus_definition_conflict": "error",
|
||||
"bus_entry_needed": "error",
|
||||
"bus_label_syntax": "error",
|
||||
"bus_to_bus_conflict": "error",
|
||||
"bus_to_net_conflict": "error",
|
||||
"different_unit_footprint": "error",
|
||||
"different_unit_net": "error",
|
||||
"duplicate_reference": "error",
|
||||
"duplicate_sheet_names": "error",
|
||||
"extra_units": "error",
|
||||
"global_label_dangling": "warning",
|
||||
"hier_label_mismatch": "error",
|
||||
"label_dangling": "error",
|
||||
"lib_symbol_issues": "warning",
|
||||
"multiple_net_names": "warning",
|
||||
"net_not_bus_member": "warning",
|
||||
"no_connect_connected": "warning",
|
||||
"no_connect_dangling": "warning",
|
||||
"pin_not_connected": "error",
|
||||
"pin_not_driven": "error",
|
||||
"pin_to_pin": "warning",
|
||||
"power_pin_not_driven": "error",
|
||||
"similar_labels": "warning",
|
||||
"unannotated": "error",
|
||||
"unit_value_mismatch": "error",
|
||||
"unresolved_variable": "error",
|
||||
"wire_dangling": "error"
|
||||
}
|
||||
},
|
||||
"libraries": {
|
||||
"pinned_footprint_libs": [],
|
||||
"pinned_symbol_libs": []
|
||||
},
|
||||
"meta": {
|
||||
"filename": "corne-ultralight.kicad_pro",
|
||||
"version": 1
|
||||
},
|
||||
"net_settings": {
|
||||
"classes": [
|
||||
{
|
||||
"bus_width": 12,
|
||||
"clearance": 0.2,
|
||||
"diff_pair_gap": 0.25,
|
||||
"diff_pair_via_gap": 0.25,
|
||||
"diff_pair_width": 0.2,
|
||||
"line_style": 0,
|
||||
"microvia_diameter": 0.3,
|
||||
"microvia_drill": 0.1,
|
||||
"name": "Default",
|
||||
"pcb_color": "rgba(0, 0, 0, 0.000)",
|
||||
"schematic_color": "rgba(0, 0, 0, 0.000)",
|
||||
"track_width": 0.25,
|
||||
"via_diameter": 0.6,
|
||||
"via_drill": 0.4,
|
||||
"wire_width": 6
|
||||
},
|
||||
{
|
||||
"bus_width": 12,
|
||||
"clearance": 1e-05,
|
||||
"diff_pair_gap": 1e-05,
|
||||
"diff_pair_via_gap": 0.25,
|
||||
"diff_pair_width": 0.2,
|
||||
"line_style": 0,
|
||||
"microvia_diameter": 0.2,
|
||||
"microvia_drill": 0.1,
|
||||
"name": "Min",
|
||||
"pcb_color": "rgba(0, 0, 0, 0.000)",
|
||||
"schematic_color": "rgba(0, 0, 0, 0.000)",
|
||||
"track_width": 0.2,
|
||||
"via_diameter": 0.4,
|
||||
"via_drill": 0.3,
|
||||
"wire_width": 6
|
||||
},
|
||||
{
|
||||
"bus_width": 12,
|
||||
"clearance": 0.2,
|
||||
"diff_pair_gap": 0.25,
|
||||
"diff_pair_via_gap": 0.25,
|
||||
"diff_pair_width": 0.2,
|
||||
"line_style": 0,
|
||||
"microvia_diameter": 0.3,
|
||||
"microvia_drill": 0.1,
|
||||
"name": "Power",
|
||||
"pcb_color": "rgba(0, 0, 0, 0.000)",
|
||||
"schematic_color": "rgba(0, 0, 0, 0.000)",
|
||||
"track_width": 0.5,
|
||||
"via_diameter": 0.8,
|
||||
"via_drill": 0.4,
|
||||
"wire_width": 6
|
||||
}
|
||||
],
|
||||
"meta": {
|
||||
"version": 3
|
||||
},
|
||||
"net_colors": null,
|
||||
"netclass_assignments": null,
|
||||
"netclass_patterns": [
|
||||
{
|
||||
"netclass": "Power",
|
||||
"pattern": "+BATT"
|
||||
},
|
||||
{
|
||||
"netclass": "Power",
|
||||
"pattern": "+BATTA"
|
||||
},
|
||||
{
|
||||
"netclass": "Power",
|
||||
"pattern": "GND"
|
||||
},
|
||||
{
|
||||
"netclass": "Power",
|
||||
"pattern": "GNDA"
|
||||
},
|
||||
{
|
||||
"netclass": "Power",
|
||||
"pattern": "Net-(BATJ1-Pad2)"
|
||||
},
|
||||
{
|
||||
"netclass": "Power",
|
||||
"pattern": "Net-(BATJ3-Pad2)"
|
||||
}
|
||||
]
|
||||
},
|
||||
"pcbnew": {
|
||||
"last_paths": {
|
||||
"gencad": "",
|
||||
"idf": "",
|
||||
"netlist": "corne-light.net",
|
||||
"specctra_dsn": "",
|
||||
"step": "",
|
||||
"vrml": ""
|
||||
},
|
||||
"page_layout_descr_file": ""
|
||||
},
|
||||
"schematic": {
|
||||
"annotate_start_num": 0,
|
||||
"drawing": {
|
||||
"default_line_thickness": 6.0,
|
||||
"default_text_size": 50.0,
|
||||
"field_names": [],
|
||||
"intersheets_ref_own_page": false,
|
||||
"intersheets_ref_prefix": "",
|
||||
"intersheets_ref_short": false,
|
||||
"intersheets_ref_show": false,
|
||||
"intersheets_ref_suffix": "",
|
||||
"junction_size_choice": 3,
|
||||
"label_size_ratio": 0.25,
|
||||
"pin_symbol_size": 0.0,
|
||||
"text_offset_ratio": 0.08
|
||||
},
|
||||
"legacy_lib_dir": "",
|
||||
"legacy_lib_list": [],
|
||||
"meta": {
|
||||
"version": 1
|
||||
},
|
||||
"net_format_name": "Pcbnew",
|
||||
"ngspice": {
|
||||
"fix_include_paths": true,
|
||||
"fix_passive_vals": false,
|
||||
"meta": {
|
||||
"version": 0
|
||||
},
|
||||
"model_mode": 0,
|
||||
"workbook_filename": ""
|
||||
},
|
||||
"page_layout_descr_file": "",
|
||||
"plot_directory": "",
|
||||
"spice_adjust_passive_values": false,
|
||||
"spice_external_command": "spice \"%I\"",
|
||||
"subpart_first_id": 65,
|
||||
"subpart_id_separator": 0
|
||||
},
|
||||
"sheets": [
|
||||
[
|
||||
"4d161fd0-88a3-46fc-b3eb-e2fe3659386b",
|
||||
""
|
||||
]
|
||||
],
|
||||
"text_variables": {}
|
||||
}
|
||||
5888
corne-ultralight/pcb/corne-ultralight.kicad_sch
Normal file
5888
corne-ultralight/pcb/corne-ultralight.kicad_sch
Normal file
File diff suppressed because it is too large
Load Diff
1907
corne-ultralight/pcb/corne-ultralight.xml
Normal file
1907
corne-ultralight/pcb/corne-ultralight.xml
Normal file
File diff suppressed because it is too large
Load Diff
7
corne-ultralight/pcb/fp-lib-table
Normal file
7
corne-ultralight/pcb/fp-lib-table
Normal file
@ -0,0 +1,7 @@
|
||||
(fp_lib_table
|
||||
(version 7)
|
||||
(lib (name "kbd")(type "KiCad")(uri "/home/kabbone/Projects/kbd/kicad-footprints/kbd.pretty")(options "")(descr ""))
|
||||
(lib (name "gateron-ks27")(type "KiCad")(uri "${KIPRJMOD}/gateron-ks27.pretty")(options "")(descr ""))
|
||||
(lib (name "nice_view")(type "KiCad")(uri "${KIPRJMOD}/nice_view.pretty")(options "")(descr ""))
|
||||
(lib (name "kbd_shapes")(type "KiCad")(uri "/home/kabbone/Projects/kbd/kicad-packages3D/kbd.3dshapes")(options "")(descr ""))
|
||||
)
|
||||
@ -0,0 +1,33 @@
|
||||
(footprint "gateron-ks27-choc-v1-1.5u" (version 20211014) (generator pcbnew)
|
||||
(layer "F.Cu")
|
||||
(tedit 6259DA75)
|
||||
(attr through_hole)
|
||||
(fp_text reference "REF**" (at 0 -4.5 unlocked) (layer "F.SilkS")
|
||||
(effects (font (size 1 1) (thickness 0.15)))
|
||||
(tstamp 4c9fdea7-ba0c-45cc-8f66-240980c37d5c)
|
||||
)
|
||||
(fp_text value "gateron-ks27-choc-v1-1.5u" (at 0 8.5 unlocked) (layer "F.Fab")
|
||||
(effects (font (size 1 1) (thickness 0.15)))
|
||||
(tstamp c58960d9-4cac-4036-ad2e-1aef26946dae)
|
||||
)
|
||||
(fp_line (start 1.8 -6.3) (end -3.2 -6.3) (layer "Eco2.User") (width 0.12) (tstamp 21ae9c3a-7138-444e-be38-56a4842ab594))
|
||||
(fp_line (start -7 -7) (end -7 7) (layer "Eco2.User") (width 0.12) (tstamp 632acde9-b7fd-4f04-8cb4-d2cbb06b3595))
|
||||
(fp_line (start 7 7) (end 7 -7) (layer "Eco2.User") (width 0.12) (tstamp 67621f9e-0a6a-4778-ad69-04dcf300659c))
|
||||
(fp_line (start -3.2 -6.3) (end -3.2 -3.1) (layer "Eco2.User") (width 0.12) (tstamp 81a15393-727e-448b-a777-b18773023d89))
|
||||
(fp_line (start 7 -7) (end -7 -7) (layer "Eco2.User") (width 0.12) (tstamp 98e81e80-1f85-4152-be3f-99785ea97751))
|
||||
(fp_line (start -7 7) (end 7 7) (layer "Eco2.User") (width 0.12) (tstamp 9dab0cb7-2557-4419-963b-5ae736517f62))
|
||||
(fp_line (start 1.8 -6.3) (end 1.8 -3.1) (layer "Eco2.User") (width 0.12) (tstamp a29f8df0-3fae-4edf-8d9c-bd5a875b13e3))
|
||||
(fp_line (start 1.8 -3.1) (end -3.2 -3.1) (layer "Eco2.User") (width 0.12) (tstamp abe07c9a-17c3-43b5-b7a6-ae867ac27ea7))
|
||||
(fp_line (start 14.2875 7.5) (end 14.2875 -7.5) (layer "F.Fab") (width 0.1) (tstamp 0d35483a-0b12-46cc-b9f2-896fd6831779))
|
||||
(fp_line (start -14.2875 -7.5) (end -14.2875 7.5) (layer "F.Fab") (width 0.1) (tstamp 786b6072-5772-4bc1-8eeb-6c4e19f2a91b))
|
||||
(fp_line (start -14.2875 7.5) (end 14.2875 7.5) (layer "F.Fab") (width 0.1) (tstamp c3c93de0-69b1-4a04-8e0b-d78caf487c63))
|
||||
(fp_line (start 14.2875 -7.5) (end -14.2875 -7.5) (layer "F.Fab") (width 0.1) (tstamp ef1b4b98-541b-4673-a04f-2043250fc40a))
|
||||
(pad "" np_thru_hole circle (at 0 0) (size 5 5) (drill 5) (layers F&B.Cu *.Mask) (tstamp afb8e687-4a13-41a1-b8c0-89a749e897fe))
|
||||
(pad "" np_thru_hole circle (at 5.22 -4.2) (size 0.9906 0.9906) (drill 0.9906) (layers F&B.Cu *.Mask) (tstamp f2a44eaf-666f-422c-bb4d-a717499c3d1a))
|
||||
(pad "" np_thru_hole circle (at 5.5 0) (size 1.7018 1.7018) (drill 1.7018) (layers F&B.Cu *.Mask) (tstamp f565cf54-67ba-4424-8d47-087433645499))
|
||||
(pad "" np_thru_hole circle (at -5.5 0) (size 1.7018 1.7018) (drill 1.7018) (layers F&B.Cu *.Mask) (tstamp fe4869dc-e96e-4bb4-a38d-2ca990635f2d))
|
||||
(pad "1" thru_hole circle (at 2.6 5.75) (size 2.5 2.5) (drill 1.5) (layers *.Cu *.Mask) (tstamp babeabf2-f3b0-4ed5-8d9e-0215947e6cf3))
|
||||
(pad "1" thru_hole circle (at 0 5.9) (size 2.5 2.5) (drill 1.5) (layers *.Cu *.Mask) (tstamp edc9ab4f-487a-48dc-95f2-4d87f0e9cf9e))
|
||||
(pad "2" thru_hole circle (at -5 3.8) (size 2.5 2.5) (drill 1.5) (layers *.Cu *.Mask) (tstamp 4e66a44f-7fa6-4e16-bf9b-62ec864301a5))
|
||||
(pad "2" thru_hole circle (at -4.4 4.7) (size 2.5 2.5) (drill 1.5) (layers *.Cu *.Mask) (tstamp 7bbf981c-a063-4e30-8911-e4228e1c0743))
|
||||
)
|
||||
@ -0,0 +1,37 @@
|
||||
(footprint "gateron-ks27-choc-v1-mx-1.5u" (version 20211014) (generator pcbnew)
|
||||
(layer "F.Cu")
|
||||
(tedit 62A8BDB3)
|
||||
(attr through_hole)
|
||||
(fp_text reference "REF**" (at -4.5 -4.5 unlocked) (layer "F.SilkS")
|
||||
(effects (font (size 1 1) (thickness 0.15)))
|
||||
(tstamp 4c9fdea7-ba0c-45cc-8f66-240980c37d5c)
|
||||
)
|
||||
(fp_text value "gateron-ks27-choc-v1-mx-1.5u" (at 0 8.5 unlocked) (layer "F.Fab")
|
||||
(effects (font (size 1 1) (thickness 0.15)))
|
||||
(tstamp c58960d9-4cac-4036-ad2e-1aef26946dae)
|
||||
)
|
||||
(fp_line (start 2.5 -6.3) (end -2.5 -6.3) (layer "Eco2.User") (width 0.12) (tstamp 21ae9c3a-7138-444e-be38-56a4842ab594))
|
||||
(fp_line (start -7 -7) (end -7 7) (layer "Eco2.User") (width 0.12) (tstamp 632acde9-b7fd-4f04-8cb4-d2cbb06b3595))
|
||||
(fp_line (start 7 7) (end 7 -7) (layer "Eco2.User") (width 0.12) (tstamp 67621f9e-0a6a-4778-ad69-04dcf300659c))
|
||||
(fp_line (start -2.5 -6.3) (end -2.5 -3.1) (layer "Eco2.User") (width 0.12) (tstamp 81a15393-727e-448b-a777-b18773023d89))
|
||||
(fp_line (start 7 -7) (end -7 -7) (layer "Eco2.User") (width 0.12) (tstamp 98e81e80-1f85-4152-be3f-99785ea97751))
|
||||
(fp_line (start -7 7) (end 7 7) (layer "Eco2.User") (width 0.12) (tstamp 9dab0cb7-2557-4419-963b-5ae736517f62))
|
||||
(fp_line (start 2.5 -6.3) (end 2.5 -3.1) (layer "Eco2.User") (width 0.12) (tstamp a29f8df0-3fae-4edf-8d9c-bd5a875b13e3))
|
||||
(fp_line (start 2.5 -3.1) (end -2.5 -3.1) (layer "Eco2.User") (width 0.12) (tstamp abe07c9a-17c3-43b5-b7a6-ae867ac27ea7))
|
||||
(fp_line (start 14.2875 7.5) (end 14.2875 -7.5) (layer "F.Fab") (width 0.1) (tstamp 0d35483a-0b12-46cc-b9f2-896fd6831779))
|
||||
(fp_line (start -14.2875 -7.5) (end -14.2875 7.5) (layer "F.Fab") (width 0.1) (tstamp 786b6072-5772-4bc1-8eeb-6c4e19f2a91b))
|
||||
(fp_line (start -14.2875 7.5) (end 14.2875 7.5) (layer "F.Fab") (width 0.1) (tstamp c3c93de0-69b1-4a04-8e0b-d78caf487c63))
|
||||
(fp_line (start 14.2875 -7.5) (end -14.2875 -7.5) (layer "F.Fab") (width 0.1) (tstamp ef1b4b98-541b-4673-a04f-2043250fc40a))
|
||||
(pad "" np_thru_hole circle (at 0 0) (size 5 5) (drill 5) (layers F&B.Cu *.Mask) (tstamp afb8e687-4a13-41a1-b8c0-89a749e897fe))
|
||||
(pad "" np_thru_hole circle (at 5.22 -4.2) (size 0.9906 0.9906) (drill 0.9906) (layers F&B.Cu *.Mask) (tstamp f2a44eaf-666f-422c-bb4d-a717499c3d1a))
|
||||
(pad "" np_thru_hole circle (at 5.5 0) (size 1.7018 1.7018) (drill 1.7018) (layers F&B.Cu *.Mask) (tstamp f565cf54-67ba-4424-8d47-087433645499))
|
||||
(pad "" np_thru_hole circle (at -5.5 0) (size 1.7018 1.7018) (drill 1.7018) (layers F&B.Cu *.Mask) (tstamp fe4869dc-e96e-4bb4-a38d-2ca990635f2d))
|
||||
(pad "" np_thru_hole circle (at -5.08 0 48.0996) (size 1.75 1.75) (drill 1.75) (layers *.Cu *.Mask))
|
||||
(pad "" np_thru_hole circle (at 5.08 0 48.0996) (size 1.75 1.75) (drill 1.75) (layers *.Cu *.Mask))
|
||||
(pad "1" thru_hole circle (at 3.81 2.54) (size 2.5 2.5) (drill 1.5) (layers *.Cu *.Mask) (tstamp 2d6db888-4e40-41c8-b701-07170fc894bc))
|
||||
(pad "1" thru_hole circle (at 2.6 5.75) (size 2.5 2.5) (drill 1.5) (layers *.Cu *.Mask) (tstamp babeabf2-f3b0-4ed5-8d9e-0215947e6cf3))
|
||||
(pad "1" thru_hole circle (at 0 5.9) (size 2.5 2.5) (drill 1.5) (layers *.Cu *.Mask) (tstamp edc9ab4f-487a-48dc-95f2-4d87f0e9cf9e))
|
||||
(pad "2" thru_hole circle (at -5 3.8) (size 2.5 2.5) (drill 1.5) (layers *.Cu *.Mask) (tstamp 4e66a44f-7fa6-4e16-bf9b-62ec864301a5))
|
||||
(pad "2" thru_hole circle (at -4.4 4.7) (size 2.5 2.5) (drill 1.5) (layers *.Cu *.Mask) (tstamp 7bbf981c-a063-4e30-8911-e4228e1c0743))
|
||||
(pad "2" thru_hole circle (at -2.54 5.08) (size 2.286 2.286) (drill 1.5) (layers *.Cu *.Mask) (tstamp dde3dba8-1b81-466c-93a3-c284ff4da1ef))
|
||||
)
|
||||
@ -0,0 +1,37 @@
|
||||
(footprint "gateron-ks27-choc-v1-mx" (version 20211014) (generator pcbnew)
|
||||
(layer "F.Cu")
|
||||
(tedit 62A8BDB3)
|
||||
(attr through_hole)
|
||||
(fp_text reference "REF**" (at -4.5 -4.5 unlocked) (layer "F.SilkS")
|
||||
(effects (font (size 1 1) (thickness 0.15)))
|
||||
(tstamp 4c9fdea7-ba0c-45cc-8f66-240980c37d5c)
|
||||
)
|
||||
(fp_text value "gateron-ks27-choc-v1-mx" (at 0 8.5 unlocked) (layer "F.Fab")
|
||||
(effects (font (size 1 1) (thickness 0.15)))
|
||||
(tstamp c58960d9-4cac-4036-ad2e-1aef26946dae)
|
||||
)
|
||||
(fp_line (start 2.5 -6.3) (end -2.5 -6.3) (layer "Eco2.User") (width 0.12) (tstamp 21ae9c3a-7138-444e-be38-56a4842ab594))
|
||||
(fp_line (start -7 -7) (end -7 7) (layer "Eco2.User") (width 0.12) (tstamp 632acde9-b7fd-4f04-8cb4-d2cbb06b3595))
|
||||
(fp_line (start 7 7) (end 7 -7) (layer "Eco2.User") (width 0.12) (tstamp 67621f9e-0a6a-4778-ad69-04dcf300659c))
|
||||
(fp_line (start -2.5 -6.3) (end -2.5 -3.1) (layer "Eco2.User") (width 0.12) (tstamp 81a15393-727e-448b-a777-b18773023d89))
|
||||
(fp_line (start 7 -7) (end -7 -7) (layer "Eco2.User") (width 0.12) (tstamp 98e81e80-1f85-4152-be3f-99785ea97751))
|
||||
(fp_line (start -7 7) (end 7 7) (layer "Eco2.User") (width 0.12) (tstamp 9dab0cb7-2557-4419-963b-5ae736517f62))
|
||||
(fp_line (start 2.5 -6.3) (end 2.5 -3.1) (layer "Eco2.User") (width 0.12) (tstamp a29f8df0-3fae-4edf-8d9c-bd5a875b13e3))
|
||||
(fp_line (start 2.5 -3.1) (end -2.5 -3.1) (layer "Eco2.User") (width 0.12) (tstamp abe07c9a-17c3-43b5-b7a6-ae867ac27ea7))
|
||||
(fp_line (start 7.5 7.5) (end 7.5 -7.5) (layer "F.Fab") (width 0.1) (tstamp 0d35483a-0b12-46cc-b9f2-896fd6831779))
|
||||
(fp_line (start -7.5 -7.5) (end -7.5 7.5) (layer "F.Fab") (width 0.1) (tstamp 786b6072-5772-4bc1-8eeb-6c4e19f2a91b))
|
||||
(fp_line (start -7.5 7.5) (end 7.5 7.5) (layer "F.Fab") (width 0.1) (tstamp c3c93de0-69b1-4a04-8e0b-d78caf487c63))
|
||||
(fp_line (start 7.5 -7.5) (end -7.5 -7.5) (layer "F.Fab") (width 0.1) (tstamp ef1b4b98-541b-4673-a04f-2043250fc40a))
|
||||
(pad "" np_thru_hole circle (at 0 0) (size 5 5) (drill 5) (layers F&B.Cu *.Mask) (tstamp afb8e687-4a13-41a1-b8c0-89a749e897fe))
|
||||
(pad "" np_thru_hole circle (at 5.22 -4.2) (size 0.9906 0.9906) (drill 0.9906) (layers F&B.Cu *.Mask) (tstamp f2a44eaf-666f-422c-bb4d-a717499c3d1a))
|
||||
(pad "" np_thru_hole circle (at 5.5 0) (size 1.7018 1.7018) (drill 1.7018) (layers F&B.Cu *.Mask) (tstamp f565cf54-67ba-4424-8d47-087433645499))
|
||||
(pad "" np_thru_hole circle (at -5.5 0) (size 1.7018 1.7018) (drill 1.7018) (layers F&B.Cu *.Mask) (tstamp fe4869dc-e96e-4bb4-a38d-2ca990635f2d))
|
||||
(pad "" np_thru_hole circle (at -5.08 0 48.0996) (size 1.75 1.75) (drill 1.75) (layers *.Cu *.Mask))
|
||||
(pad "" np_thru_hole circle (at 5.08 0 48.0996) (size 1.75 1.75) (drill 1.75) (layers *.Cu *.Mask))
|
||||
(pad "1" thru_hole circle (at 3.81 2.54) (size 2.5 2.5) (drill 1.5) (layers *.Cu *.Mask) (tstamp 2d6db888-4e40-41c8-b701-07170fc894bc))
|
||||
(pad "1" thru_hole circle (at 2.6 5.75) (size 2.5 2.5) (drill 1.5) (layers *.Cu *.Mask) (tstamp babeabf2-f3b0-4ed5-8d9e-0215947e6cf3))
|
||||
(pad "1" thru_hole circle (at 0 5.9) (size 2.5 2.5) (drill 1.5) (layers *.Cu *.Mask) (tstamp edc9ab4f-487a-48dc-95f2-4d87f0e9cf9e))
|
||||
(pad "2" thru_hole circle (at -5 3.8) (size 2.5 2.5) (drill 1.5) (layers *.Cu *.Mask) (tstamp 4e66a44f-7fa6-4e16-bf9b-62ec864301a5))
|
||||
(pad "2" thru_hole circle (at -4.4 4.7) (size 2.5 2.5) (drill 1.5) (layers *.Cu *.Mask) (tstamp 7bbf981c-a063-4e30-8911-e4228e1c0743))
|
||||
(pad "2" thru_hole circle (at -2.54 5.08) (size 2.286 2.286) (drill 1.5) (layers *.Cu *.Mask) (tstamp dde3dba8-1b81-466c-93a3-c284ff4da1ef))
|
||||
)
|
||||
@ -0,0 +1,33 @@
|
||||
(footprint "gateron-ks27-choc-v1" (version 20211014) (generator pcbnew)
|
||||
(layer "F.Cu")
|
||||
(tedit 6259DA75)
|
||||
(attr through_hole)
|
||||
(fp_text reference "REF**" (at 0 -4.5 unlocked) (layer "F.SilkS")
|
||||
(effects (font (size 1 1) (thickness 0.15)))
|
||||
(tstamp 4c9fdea7-ba0c-45cc-8f66-240980c37d5c)
|
||||
)
|
||||
(fp_text value "gateron-ks27-choc-v1" (at 0 8.5 unlocked) (layer "F.Fab")
|
||||
(effects (font (size 1 1) (thickness 0.15)))
|
||||
(tstamp c58960d9-4cac-4036-ad2e-1aef26946dae)
|
||||
)
|
||||
(fp_line (start 1.8 -6.3) (end -3.2 -6.3) (layer "Eco2.User") (width 0.12) (tstamp 21ae9c3a-7138-444e-be38-56a4842ab594))
|
||||
(fp_line (start -7 -7) (end -7 7) (layer "Eco2.User") (width 0.12) (tstamp 632acde9-b7fd-4f04-8cb4-d2cbb06b3595))
|
||||
(fp_line (start 7 7) (end 7 -7) (layer "Eco2.User") (width 0.12) (tstamp 67621f9e-0a6a-4778-ad69-04dcf300659c))
|
||||
(fp_line (start -3.2 -6.3) (end -3.2 -3.1) (layer "Eco2.User") (width 0.12) (tstamp 81a15393-727e-448b-a777-b18773023d89))
|
||||
(fp_line (start 7 -7) (end -7 -7) (layer "Eco2.User") (width 0.12) (tstamp 98e81e80-1f85-4152-be3f-99785ea97751))
|
||||
(fp_line (start -7 7) (end 7 7) (layer "Eco2.User") (width 0.12) (tstamp 9dab0cb7-2557-4419-963b-5ae736517f62))
|
||||
(fp_line (start 1.8 -6.3) (end 1.8 -3.1) (layer "Eco2.User") (width 0.12) (tstamp a29f8df0-3fae-4edf-8d9c-bd5a875b13e3))
|
||||
(fp_line (start 1.8 -3.1) (end -3.2 -3.1) (layer "Eco2.User") (width 0.12) (tstamp abe07c9a-17c3-43b5-b7a6-ae867ac27ea7))
|
||||
(fp_line (start 7.5 7.5) (end 7.5 -7.5) (layer "F.Fab") (width 0.1) (tstamp 0d35483a-0b12-46cc-b9f2-896fd6831779))
|
||||
(fp_line (start -7.5 -7.5) (end -7.5 7.5) (layer "F.Fab") (width 0.1) (tstamp 786b6072-5772-4bc1-8eeb-6c4e19f2a91b))
|
||||
(fp_line (start -7.5 7.5) (end 7.5 7.5) (layer "F.Fab") (width 0.1) (tstamp c3c93de0-69b1-4a04-8e0b-d78caf487c63))
|
||||
(fp_line (start 7.5 -7.5) (end -7.5 -7.5) (layer "F.Fab") (width 0.1) (tstamp ef1b4b98-541b-4673-a04f-2043250fc40a))
|
||||
(pad "" np_thru_hole circle (at 0 0) (size 5 5) (drill 5) (layers F&B.Cu *.Mask) (tstamp afb8e687-4a13-41a1-b8c0-89a749e897fe))
|
||||
(pad "" np_thru_hole circle (at 5.22 -4.2) (size 0.9906 0.9906) (drill 0.9906) (layers F&B.Cu *.Mask) (tstamp f2a44eaf-666f-422c-bb4d-a717499c3d1a))
|
||||
(pad "" np_thru_hole circle (at 5.5 0) (size 1.7018 1.7018) (drill 1.7018) (layers F&B.Cu *.Mask) (tstamp f565cf54-67ba-4424-8d47-087433645499))
|
||||
(pad "" np_thru_hole circle (at -5.5 0) (size 1.7018 1.7018) (drill 1.7018) (layers F&B.Cu *.Mask) (tstamp fe4869dc-e96e-4bb4-a38d-2ca990635f2d))
|
||||
(pad "1" thru_hole circle (at 2.6 5.75) (size 2.5 2.5) (drill 1.5) (layers *.Cu *.Mask) (tstamp babeabf2-f3b0-4ed5-8d9e-0215947e6cf3))
|
||||
(pad "1" thru_hole circle (at 0 5.9) (size 2.5 2.5) (drill 1.5) (layers *.Cu *.Mask) (tstamp edc9ab4f-487a-48dc-95f2-4d87f0e9cf9e))
|
||||
(pad "2" thru_hole circle (at -5 3.8) (size 2.5 2.5) (drill 1.5) (layers *.Cu *.Mask) (tstamp 4e66a44f-7fa6-4e16-bf9b-62ec864301a5))
|
||||
(pad "2" thru_hole circle (at -4.4 4.7) (size 2.5 2.5) (drill 1.5) (layers *.Cu *.Mask) (tstamp 7bbf981c-a063-4e30-8911-e4228e1c0743))
|
||||
)
|
||||
2336
corne-ultralight/pcb/kabtop.kicad_mod
Normal file
2336
corne-ultralight/pcb/kabtop.kicad_mod
Normal file
File diff suppressed because it is too large
Load Diff
2350
corne-ultralight/pcb/kabtop.kicad_sym
Normal file
2350
corne-ultralight/pcb/kabtop.kicad_sym
Normal file
File diff suppressed because it is too large
Load Diff
1
corne-ultralight/pcb/kbd
Submodule
1
corne-ultralight/pcb/kbd
Submodule
@ -0,0 +1 @@
|
||||
Subproject commit cd89af5095260c046921e293260bcc8a6b1db679
|
||||
523
corne-ultralight/pcb/kbd.kicad_sym
Normal file
523
corne-ultralight/pcb/kbd.kicad_sym
Normal file
@ -0,0 +1,523 @@
|
||||
(kicad_symbol_lib (version 20220914) (generator kicad_symbol_editor)
|
||||
(symbol "MJ-4PP-9" (pin_names (offset 1.016)) (in_bom yes) (on_board yes)
|
||||
(property "Reference" "J" (at 0 3.81 0)
|
||||
(effects (font (size 1.27 1.27)))
|
||||
)
|
||||
(property "Value" "MJ-4PP-9" (at 0 -3.81 0)
|
||||
(effects (font (size 1.27 1.27)))
|
||||
)
|
||||
(property "Footprint" "" (at 6.985 4.445 0)
|
||||
(effects (font (size 1.27 1.27)) hide)
|
||||
)
|
||||
(property "Datasheet" "~" (at 6.985 4.445 0)
|
||||
(effects (font (size 1.27 1.27)) hide)
|
||||
)
|
||||
(property "ki_keywords" "audio jack receptable stereo headphones TRRS connector" (at 0 0 0)
|
||||
(effects (font (size 1.27 1.27)) hide)
|
||||
)
|
||||
(property "ki_description" "4-pin (audio) jack receptable (stereo + 4th pin/TRRS connector), compatible with PJ320A" (at 0 0 0)
|
||||
(effects (font (size 1.27 1.27)) hide)
|
||||
)
|
||||
(symbol "MJ-4PP-9_0_1"
|
||||
(rectangle (start -1.905 -1.905) (end -3.175 1.27)
|
||||
(stroke (width 0) (type solid))
|
||||
(fill (type none))
|
||||
)
|
||||
(polyline
|
||||
(pts
|
||||
(xy -2.54 1.27)
|
||||
(xy -2.54 1.905)
|
||||
(xy 3.175 1.905)
|
||||
)
|
||||
(stroke (width 0) (type solid))
|
||||
(fill (type none))
|
||||
)
|
||||
(polyline
|
||||
(pts
|
||||
(xy -1.27 -1.905)
|
||||
(xy -0.635 -1.27)
|
||||
(xy 0 -1.905)
|
||||
(xy 3.175 -1.905)
|
||||
)
|
||||
(stroke (width 0) (type solid))
|
||||
(fill (type none))
|
||||
)
|
||||
(polyline
|
||||
(pts
|
||||
(xy 0 -0.635)
|
||||
(xy 0.635 0)
|
||||
(xy 1.27 -0.635)
|
||||
(xy 3.175 -0.635)
|
||||
)
|
||||
(stroke (width 0) (type solid))
|
||||
(fill (type none))
|
||||
)
|
||||
(polyline
|
||||
(pts
|
||||
(xy 1.27 0.635)
|
||||
(xy 1.905 1.27)
|
||||
(xy 2.54 0.635)
|
||||
(xy 3.175 0.635)
|
||||
)
|
||||
(stroke (width 0) (type solid))
|
||||
(fill (type none))
|
||||
)
|
||||
(rectangle (start 3.175 2.54) (end -3.81 -2.54)
|
||||
(stroke (width 0.3048) (type solid))
|
||||
(fill (type none))
|
||||
)
|
||||
)
|
||||
(symbol "MJ-4PP-9_1_1"
|
||||
(pin input line (at 5.08 1.905 180) (length 2.0066)
|
||||
(name "~" (effects (font (size 0.508 0.508))))
|
||||
(number "A" (effects (font (size 0.7112 0.7112))))
|
||||
)
|
||||
(pin input line (at 5.08 -1.905 180) (length 2.0066)
|
||||
(name "~" (effects (font (size 0.508 0.508))))
|
||||
(number "B" (effects (font (size 0.7112 0.7112))))
|
||||
)
|
||||
(pin input line (at 5.08 -0.635 180) (length 2.0066)
|
||||
(name "~" (effects (font (size 0.508 0.508))))
|
||||
(number "C" (effects (font (size 0.7112 0.7112))))
|
||||
)
|
||||
(pin input line (at 5.08 0.635 180) (length 2.0066)
|
||||
(name "~" (effects (font (size 0.508 0.508))))
|
||||
(number "D" (effects (font (size 0.7112 0.7112))))
|
||||
)
|
||||
)
|
||||
)
|
||||
(symbol "OLED" (pin_names (offset 1.016)) (in_bom yes) (on_board yes)
|
||||
(property "Reference" "OL" (at 0 2.54 0)
|
||||
(effects (font (size 1.2954 1.2954)))
|
||||
)
|
||||
(property "Value" "OLED" (at 0 -1.27 0)
|
||||
(effects (font (size 1.1938 1.1938)))
|
||||
)
|
||||
(property "Footprint" "" (at 0 2.54 0)
|
||||
(effects (font (size 1.524 1.524)) hide)
|
||||
)
|
||||
(property "Datasheet" "" (at 0 2.54 0)
|
||||
(effects (font (size 1.524 1.524)) hide)
|
||||
)
|
||||
(symbol "OLED_0_1"
|
||||
(rectangle (start -13.97 8.89) (end 15.24 -7.62)
|
||||
(stroke (width 0) (type solid))
|
||||
(fill (type none))
|
||||
)
|
||||
)
|
||||
(symbol "OLED_1_1"
|
||||
(pin bidirectional line (at -19.05 6.35 0) (length 5.08)
|
||||
(name "SDA" (effects (font (size 1.27 1.27))))
|
||||
(number "1" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin bidirectional line (at -19.05 2.54 0) (length 5.08)
|
||||
(name "SCL" (effects (font (size 1.27 1.27))))
|
||||
(number "2" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin power_in line (at -19.05 -1.27 0) (length 5.08)
|
||||
(name "VCC" (effects (font (size 1.27 1.27))))
|
||||
(number "3" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin power_in line (at -19.05 -5.08 0) (length 5.08)
|
||||
(name "GND" (effects (font (size 1.27 1.27))))
|
||||
(number "4" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
)
|
||||
)
|
||||
(symbol "ProMicro" (pin_names (offset 1.016)) (in_bom yes) (on_board yes)
|
||||
(property "Reference" "U" (at 0 19.05 0)
|
||||
(effects (font (size 1.524 1.524)))
|
||||
)
|
||||
(property "Value" "ProMicro" (at 0 -19.05 0)
|
||||
(effects (font (size 1.524 1.524)))
|
||||
)
|
||||
(property "Footprint" "" (at 2.54 -26.67 0)
|
||||
(effects (font (size 1.524 1.524)))
|
||||
)
|
||||
(property "Datasheet" "" (at 2.54 -26.67 0)
|
||||
(effects (font (size 1.524 1.524)))
|
||||
)
|
||||
(symbol "ProMicro_0_1"
|
||||
(rectangle (start -12.7 16.51) (end 12.7 -16.51)
|
||||
(stroke (width 0) (type solid))
|
||||
(fill (type none))
|
||||
)
|
||||
)
|
||||
(symbol "ProMicro_1_1"
|
||||
(pin bidirectional line (at -17.78 13.97 0) (length 5.08)
|
||||
(name "TX0/D3" (effects (font (size 1.27 1.27))))
|
||||
(number "1" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin bidirectional line (at -17.78 -8.89 0) (length 5.08)
|
||||
(name "7/E6" (effects (font (size 1.27 1.27))))
|
||||
(number "10" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin bidirectional line (at -17.78 -11.43 0) (length 5.08)
|
||||
(name "8/B4" (effects (font (size 1.27 1.27))))
|
||||
(number "11" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin bidirectional line (at -17.78 -13.97 0) (length 5.08)
|
||||
(name "9/B5" (effects (font (size 1.27 1.27))))
|
||||
(number "12" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin bidirectional line (at 17.78 -13.97 180) (length 5.08)
|
||||
(name "B6/10" (effects (font (size 1.27 1.27))))
|
||||
(number "13" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin bidirectional line (at 17.78 -11.43 180) (length 5.08)
|
||||
(name "B2/16" (effects (font (size 1.27 1.27))))
|
||||
(number "14" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin bidirectional line (at 17.78 -8.89 180) (length 5.08)
|
||||
(name "B3/14" (effects (font (size 1.27 1.27))))
|
||||
(number "15" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin bidirectional line (at 17.78 -6.35 180) (length 5.08)
|
||||
(name "B1/15" (effects (font (size 1.27 1.27))))
|
||||
(number "16" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin bidirectional line (at 17.78 -3.81 180) (length 5.08)
|
||||
(name "F7/A0" (effects (font (size 1.27 1.27))))
|
||||
(number "17" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin bidirectional line (at 17.78 -1.27 180) (length 5.08)
|
||||
(name "F6/A1" (effects (font (size 1.27 1.27))))
|
||||
(number "18" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin bidirectional line (at 17.78 1.27 180) (length 5.08)
|
||||
(name "F5/A2" (effects (font (size 1.27 1.27))))
|
||||
(number "19" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin bidirectional line (at -17.78 11.43 0) (length 5.08)
|
||||
(name "RX1/D2" (effects (font (size 1.27 1.27))))
|
||||
(number "2" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin bidirectional line (at 17.78 3.81 180) (length 5.08)
|
||||
(name "F4/A3" (effects (font (size 1.27 1.27))))
|
||||
(number "20" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin power_in line (at 17.78 6.35 180) (length 5.08)
|
||||
(name "VCC" (effects (font (size 1.27 1.27))))
|
||||
(number "21" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin input line (at 17.78 8.89 180) (length 5.08)
|
||||
(name "RST" (effects (font (size 1.27 1.27))))
|
||||
(number "22" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin power_in line (at 17.78 11.43 180) (length 5.08)
|
||||
(name "GND" (effects (font (size 1.27 1.27))))
|
||||
(number "23" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin power_out line (at 17.78 13.97 180) (length 5.08)
|
||||
(name "RAW" (effects (font (size 1.27 1.27))))
|
||||
(number "24" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin power_in line (at -17.78 8.89 0) (length 5.08)
|
||||
(name "GND" (effects (font (size 1.27 1.27))))
|
||||
(number "3" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin power_in line (at -17.78 6.35 0) (length 5.08)
|
||||
(name "GND" (effects (font (size 1.27 1.27))))
|
||||
(number "4" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin bidirectional line (at -17.78 3.81 0) (length 5.08)
|
||||
(name "2/D1/SDA" (effects (font (size 1.27 1.27))))
|
||||
(number "5" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin bidirectional line (at -17.78 1.27 0) (length 5.08)
|
||||
(name "3/D0/SCL" (effects (font (size 1.27 1.27))))
|
||||
(number "6" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin bidirectional line (at -17.78 -1.27 0) (length 5.08)
|
||||
(name "4/D4" (effects (font (size 1.27 1.27))))
|
||||
(number "7" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin bidirectional line (at -17.78 -3.81 0) (length 5.08)
|
||||
(name "5/C6" (effects (font (size 1.27 1.27))))
|
||||
(number "8" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin bidirectional line (at -17.78 -6.35 0) (length 5.08)
|
||||
(name "6/D7" (effects (font (size 1.27 1.27))))
|
||||
(number "9" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
)
|
||||
)
|
||||
(symbol "ProMicro_r" (pin_names (offset 1.016)) (in_bom yes) (on_board yes)
|
||||
(property "Reference" "U" (at 1.27 22.86 0)
|
||||
(effects (font (size 1.524 1.524)))
|
||||
)
|
||||
(property "Value" "ProMicro_r" (at 1.27 -15.24 0)
|
||||
(effects (font (size 1.524 1.524)))
|
||||
)
|
||||
(property "Footprint" "" (at 3.81 -26.67 0)
|
||||
(effects (font (size 1.524 1.524)))
|
||||
)
|
||||
(property "Datasheet" "" (at 3.81 -26.67 0)
|
||||
(effects (font (size 1.524 1.524)))
|
||||
)
|
||||
(symbol "ProMicro_r_0_1"
|
||||
(rectangle (start 13.97 20.32) (end -11.43 -12.7)
|
||||
(stroke (width 0) (type solid))
|
||||
(fill (type none))
|
||||
)
|
||||
)
|
||||
(symbol "ProMicro_r_1_1"
|
||||
(pin bidirectional line (at 19.05 17.78 180) (length 5.08)
|
||||
(name "D3/TX0" (effects (font (size 1.27 1.27))))
|
||||
(number "1" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin bidirectional line (at 19.05 -5.08 180) (length 5.08)
|
||||
(name "E6/7" (effects (font (size 1.27 1.27))))
|
||||
(number "10" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin bidirectional line (at 19.05 -7.62 180) (length 5.08)
|
||||
(name "B4/8" (effects (font (size 1.27 1.27))))
|
||||
(number "11" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin bidirectional line (at 19.05 -10.16 180) (length 5.08)
|
||||
(name "B5/9" (effects (font (size 1.27 1.27))))
|
||||
(number "12" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin bidirectional line (at -16.51 -10.16 0) (length 5.08)
|
||||
(name "10/B6" (effects (font (size 1.27 1.27))))
|
||||
(number "13" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin bidirectional line (at -16.51 -7.62 0) (length 5.08)
|
||||
(name "16/B2" (effects (font (size 1.27 1.27))))
|
||||
(number "14" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin bidirectional line (at -16.51 -5.08 0) (length 5.08)
|
||||
(name "14/B3" (effects (font (size 1.27 1.27))))
|
||||
(number "15" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin bidirectional line (at -16.51 -2.54 0) (length 5.08)
|
||||
(name "15/B1" (effects (font (size 1.27 1.27))))
|
||||
(number "16" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin bidirectional line (at -16.51 0 0) (length 5.08)
|
||||
(name "A0/F7" (effects (font (size 1.27 1.27))))
|
||||
(number "17" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin bidirectional line (at -16.51 2.54 0) (length 5.08)
|
||||
(name "A1/F6" (effects (font (size 1.27 1.27))))
|
||||
(number "18" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin bidirectional line (at -16.51 5.08 0) (length 5.08)
|
||||
(name "A2/F5" (effects (font (size 1.27 1.27))))
|
||||
(number "19" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin bidirectional line (at 19.05 15.24 180) (length 5.08)
|
||||
(name "D2/RX1" (effects (font (size 1.27 1.27))))
|
||||
(number "2" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin bidirectional line (at -16.51 7.62 0) (length 5.08)
|
||||
(name "A3/F4" (effects (font (size 1.27 1.27))))
|
||||
(number "20" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin power_in line (at -16.51 10.16 0) (length 5.08)
|
||||
(name "VCC" (effects (font (size 1.27 1.27))))
|
||||
(number "21" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin input line (at -16.51 12.7 0) (length 5.08)
|
||||
(name "RST" (effects (font (size 1.27 1.27))))
|
||||
(number "22" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin power_in line (at -16.51 15.24 0) (length 5.08)
|
||||
(name "GND" (effects (font (size 1.27 1.27))))
|
||||
(number "23" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin power_out line (at -16.51 17.78 0) (length 5.08)
|
||||
(name "RAW" (effects (font (size 1.27 1.27))))
|
||||
(number "24" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin power_in line (at 19.05 12.7 180) (length 5.08)
|
||||
(name "GND" (effects (font (size 1.27 1.27))))
|
||||
(number "3" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin power_in line (at 19.05 10.16 180) (length 5.08)
|
||||
(name "GND" (effects (font (size 1.27 1.27))))
|
||||
(number "4" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin bidirectional line (at 19.05 7.62 180) (length 5.08)
|
||||
(name "SDA/D1/2" (effects (font (size 1.27 1.27))))
|
||||
(number "5" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin bidirectional line (at 19.05 5.08 180) (length 5.08)
|
||||
(name "SCL/D0/3" (effects (font (size 1.27 1.27))))
|
||||
(number "6" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin bidirectional line (at 19.05 2.54 180) (length 5.08)
|
||||
(name "D4/4" (effects (font (size 1.27 1.27))))
|
||||
(number "7" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin bidirectional line (at 19.05 0 180) (length 5.08)
|
||||
(name "C6/5" (effects (font (size 1.27 1.27))))
|
||||
(number "8" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin bidirectional line (at 19.05 -2.54 180) (length 5.08)
|
||||
(name "D7/6" (effects (font (size 1.27 1.27))))
|
||||
(number "9" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
)
|
||||
)
|
||||
(symbol "SELIAL_LED_TEAP" (pin_names (offset 1.016)) (in_bom yes) (on_board yes)
|
||||
(property "Reference" "L" (at 0 2.54 0)
|
||||
(effects (font (size 1.2954 1.2954)))
|
||||
)
|
||||
(property "Value" "SELIAL_LED_TEAP" (at 0 -1.27 0)
|
||||
(effects (font (size 1.1938 1.1938)))
|
||||
)
|
||||
(property "Footprint" "" (at 0 2.54 0)
|
||||
(effects (font (size 1.524 1.524)) hide)
|
||||
)
|
||||
(property "Datasheet" "" (at 0 2.54 0)
|
||||
(effects (font (size 1.524 1.524)) hide)
|
||||
)
|
||||
(symbol "SELIAL_LED_TEAP_0_1"
|
||||
(rectangle (start -13.97 6.35) (end 15.24 -6.35)
|
||||
(stroke (width 0) (type solid))
|
||||
(fill (type none))
|
||||
)
|
||||
)
|
||||
(symbol "SELIAL_LED_TEAP_1_1"
|
||||
(pin power_in line (at 20.32 3.81 180) (length 5.08)
|
||||
(name "+5V" (effects (font (size 1.27 1.27))))
|
||||
(number "1" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin input line (at 20.32 0 180) (length 5.08)
|
||||
(name "Din" (effects (font (size 1.27 1.27))))
|
||||
(number "2" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin power_in line (at 20.32 -3.81 180) (length 5.08)
|
||||
(name "GND" (effects (font (size 1.27 1.27))))
|
||||
(number "3" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin power_out line (at -19.05 3.81 0) (length 5.08)
|
||||
(name "+5V" (effects (font (size 1.27 1.27))))
|
||||
(number "4" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin output line (at -19.05 0 0) (length 5.08)
|
||||
(name "DO" (effects (font (size 1.27 1.27))))
|
||||
(number "5" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin power_out line (at -19.05 -3.81 0) (length 5.08)
|
||||
(name "GND" (effects (font (size 1.27 1.27))))
|
||||
(number "6" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
)
|
||||
)
|
||||
(symbol "SK6812MINI" (pin_names (offset 1.016)) (in_bom yes) (on_board yes)
|
||||
(property "Reference" "L" (at 0 0 0)
|
||||
(effects (font (size 1.2954 1.2954)))
|
||||
)
|
||||
(property "Value" "SK6812MINI" (at 0 -1.27 0)
|
||||
(effects (font (size 0.4064 0.4064)))
|
||||
)
|
||||
(property "Footprint" "" (at 0 0 0)
|
||||
(effects (font (size 1.524 1.524)) hide)
|
||||
)
|
||||
(property "Datasheet" "" (at 0 0 0)
|
||||
(effects (font (size 1.524 1.524)) hide)
|
||||
)
|
||||
(symbol "SK6812MINI_0_1"
|
||||
(rectangle (start -3.81 3.81) (end 3.81 -3.81)
|
||||
(stroke (width 0) (type solid))
|
||||
(fill (type none))
|
||||
)
|
||||
)
|
||||
(symbol "SK6812MINI_1_1"
|
||||
(pin output line (at -5.08 2.54 0) (length 1.1938)
|
||||
(name "DOUT" (effects (font (size 0.7112 0.7112))))
|
||||
(number "1" (effects (font (size 0.7112 0.7112))))
|
||||
)
|
||||
(pin power_in line (at -5.08 -2.54 0) (length 1.1938)
|
||||
(name "VSS" (effects (font (size 0.7112 0.7112))))
|
||||
(number "2" (effects (font (size 0.7112 0.7112))))
|
||||
)
|
||||
(pin input line (at 5.08 -2.54 180) (length 1.1938)
|
||||
(name "DIN" (effects (font (size 0.7112 0.7112))))
|
||||
(number "3" (effects (font (size 0.7112 0.7112))))
|
||||
)
|
||||
(pin power_in line (at 5.08 2.54 180) (length 1.1938)
|
||||
(name "VDD" (effects (font (size 0.7112 0.7112))))
|
||||
(number "4" (effects (font (size 0.7112 0.7112))))
|
||||
)
|
||||
)
|
||||
)
|
||||
(symbol "SW_PUSH" (pin_numbers hide) (pin_names (offset 1.016) hide) (in_bom yes) (on_board yes)
|
||||
(property "Reference" "SW" (at 3.81 2.794 0)
|
||||
(effects (font (size 1.27 1.27)))
|
||||
)
|
||||
(property "Value" "SW_PUSH" (at 0 -2.032 0)
|
||||
(effects (font (size 1.27 1.27)))
|
||||
)
|
||||
(property "Footprint" "" (at 0 0 0)
|
||||
(effects (font (size 1.27 1.27)))
|
||||
)
|
||||
(property "Datasheet" "" (at 0 0 0)
|
||||
(effects (font (size 1.27 1.27)))
|
||||
)
|
||||
(symbol "SW_PUSH_0_1"
|
||||
(rectangle (start -4.318 1.27) (end 4.318 1.524)
|
||||
(stroke (width 0) (type solid))
|
||||
(fill (type none))
|
||||
)
|
||||
(polyline
|
||||
(pts
|
||||
(xy -1.016 1.524)
|
||||
(xy -0.762 2.286)
|
||||
(xy 0.762 2.286)
|
||||
(xy 1.016 1.524)
|
||||
)
|
||||
(stroke (width 0) (type solid))
|
||||
(fill (type none))
|
||||
)
|
||||
(pin passive inverted (at -7.62 0 0) (length 5.08)
|
||||
(name "1" (effects (font (size 1.27 1.27))))
|
||||
(number "1" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin passive inverted (at 7.62 0 180) (length 5.08)
|
||||
(name "2" (effects (font (size 1.27 1.27))))
|
||||
(number "2" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
)
|
||||
)
|
||||
(symbol "YS-SK6812MINI-E" (pin_names (offset 1.016)) (in_bom yes) (on_board yes)
|
||||
(property "Reference" "LED" (at 2.54 -7.62 0)
|
||||
(effects (font (size 0.7366 0.7366)))
|
||||
)
|
||||
(property "Value" "YS-SK6812MINI-E" (at 6.35 -6.35 0)
|
||||
(effects (font (size 0.7366 0.7366)))
|
||||
)
|
||||
(property "Footprint" "" (at 2.54 -6.35 0)
|
||||
(effects (font (size 1.27 1.27)) hide)
|
||||
)
|
||||
(property "Datasheet" "" (at 2.54 -6.35 0)
|
||||
(effects (font (size 1.27 1.27)) hide)
|
||||
)
|
||||
(symbol "YS-SK6812MINI-E_0_1"
|
||||
(rectangle (start -5.08 5.08) (end 5.08 -5.08)
|
||||
(stroke (width 0.254) (type solid))
|
||||
(fill (type background))
|
||||
)
|
||||
)
|
||||
(symbol "YS-SK6812MINI-E_1_1"
|
||||
(pin power_in line (at 0 7.62 270) (length 2.54)
|
||||
(name "VDD" (effects (font (size 0.9906 0.9906))))
|
||||
(number "1" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin output line (at 7.62 0 180) (length 2.54)
|
||||
(name "DOUT" (effects (font (size 0.9906 0.9906))))
|
||||
(number "2" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin power_in line (at 0 -7.62 90) (length 2.54)
|
||||
(name "VSS" (effects (font (size 0.9906 0.9906))))
|
||||
(number "3" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
(pin input line (at -7.62 0 0) (length 2.54)
|
||||
(name "DIN" (effects (font (size 0.9906 0.9906))))
|
||||
(number "4" (effects (font (size 1.27 1.27))))
|
||||
)
|
||||
)
|
||||
)
|
||||
)
|
||||
@ -0,0 +1,38 @@
|
||||
(footprint "nice_view_1side" (version 20211014) (generator pcbnew)
|
||||
(layer "F.Cu")
|
||||
(tedit 5F8C836B)
|
||||
(descr "Connecteur 6 pins")
|
||||
(tags "CONN DEV")
|
||||
(attr through_hole)
|
||||
(fp_text reference "J2" (at 3.7 2.1 180) (layer "F.Fab")
|
||||
(effects (font (size 0.8128 0.8128) (thickness 0.15)))
|
||||
(tstamp 56f2280e-a38f-400f-8c55-81ec4ba13b5b)
|
||||
)
|
||||
(fp_text value "OLED" (at 3.6 3.3) (layer "F.SilkS") hide
|
||||
(effects (font (size 0.8128 0.8128) (thickness 0.15)))
|
||||
(tstamp dbe0e00e-ee13-4ff5-9ed6-9e730d15a0fd)
|
||||
)
|
||||
(fp_text user "nice!view" (at 5.07 -2.1) (layer "F.SilkS")
|
||||
(effects (font (size 1 1) (thickness 0.15)))
|
||||
(tstamp 546a7e9a-9866-4d99-965e-9a201be0662f)
|
||||
)
|
||||
(fp_line (start -1.15 -1.15) (end 11.29 -1.15) (layer "F.SilkS") (width 0.15) (tstamp 3a32a334-0179-4e81-ab53-2b936f5ba6b0))
|
||||
(fp_line (start -1.15 1.15) (end 11.29 1.15) (layer "F.SilkS") (width 0.15) (tstamp a51e66d5-1d52-443c-9336-c601a7f7238e))
|
||||
(fp_line (start -1.15 1.15) (end -1.15 -1.15) (layer "F.SilkS") (width 0.15) (tstamp adbe6ee1-e426-4624-96ba-b45a4a620af0))
|
||||
(fp_line (start 11.29 -1.15) (end 11.29 1.15) (layer "F.SilkS") (width 0.15) (tstamp d01984f2-1c30-4d20-a7b8-30d4cba1c0ee))
|
||||
(pad "1" thru_hole oval (at 0 0) (size 1.397 1.778) (drill 0.8128) (layers *.Cu "B.Mask") (tstamp 4291a49e-edf6-49c4-b6b3-9a2a9a1b45c3))
|
||||
(pad "2" thru_hole oval (at 2.54 0) (size 1.397 1.778) (drill 0.8128) (layers *.Cu "B.Mask") (tstamp 79c47f26-d9b9-4bdb-88e5-0023d0721463))
|
||||
(pad "3" thru_hole oval (at 5.08 0) (size 1.397 1.778) (drill 0.8128) (layers *.Cu "B.Mask") (tstamp c68df3a8-5eab-49ec-b728-854292682696))
|
||||
(pad "4" thru_hole oval (at 7.62 0) (size 1.397 1.778) (drill 0.8128) (layers *.Cu "B.Mask") (tstamp fc95fabb-535a-48ae-9a0a-c37fd8f7d81b))
|
||||
(pad "5" thru_hole oval (at 10.16 0) (size 1.397 1.778) (drill 0.8128) (layers *.Cu "B.Mask") (tstamp 739f32c0-4ecf-4974-bdeb-a2a6a4cf89f9))
|
||||
(model "/Users/foostan/src/github.com/foostan/kbd/kicad-packages3D/kbd.3dshapes/pin-header-1x4.step"
|
||||
(offset (xyz 3.8 0 0))
|
||||
(scale (xyz 1 1 1))
|
||||
(rotate (xyz 0 0 0))
|
||||
)
|
||||
(model "/Users/foostan/src/github.com/foostan/kbd/kicad-packages3D/kbd.3dshapes/OLED-Module-with-Pins.step"
|
||||
(offset (xyz 3.8 0 0))
|
||||
(scale (xyz 1 1 1))
|
||||
(rotate (xyz 0 0 0))
|
||||
)
|
||||
)
|
||||
BIN
corne-ultralight/pcb/plate_gerbers.zip
Normal file
BIN
corne-ultralight/pcb/plate_gerbers.zip
Normal file
Binary file not shown.
Binary file not shown.
@ -0,0 +1,6 @@
|
||||
Designator,Footprint,Quantity,Value,LCSC Part #
|
||||
"D1, D10, D11, D12, D13, D14, D15, D16, D17, D18, D19, D2, D20, D21, D22, D23, D24, D25, D26, D27, D28, D29, D3, D30, D31, D32, D33, D34, D35, D36, D37, D38, D39, D4, D40, D41, D42, D5, D6, D7, D8, D9",D3_TH,42,0805 1n4148 SOD-123,C444720
|
||||
"J5_8, J5_7, J5_6, J5_5, J5_4, J5_3, J5_2, J5",Breakaway_Tabs,8,Breakaway_Tabs,
|
||||
"RSW1, RSW2",ResetSW_1side,2,SW_Push_Reset,C5333465
|
||||
"SW1, SW10, SW11, SW12, SW13, SW14, SW15, SW16, SW17, SW18, SW19, SW2, SW20, SW22, SW23, SW24, SW25, SW26, SW27, SW28, SW29, SW3, SW30, SW31, SW32, SW33, SW34, SW35, SW36, SW37, SW38, SW39, SW4, SW40, SW41, SW5, SW6, SW7, SW8, SW9",ChocV1_V2_Hotswap,40,Kailh PG1350,C5333465
|
||||
"SW21, SW42",ChocV1_V2_Hotswap_1.5u,2,Kailh PG1350,C5333465
|
||||
|
@ -0,0 +1,99 @@
|
||||
BATJ1:1
|
||||
BATJ2:1
|
||||
BATJ3:1
|
||||
BATJ4:1
|
||||
D1:1
|
||||
D10:1
|
||||
D11:1
|
||||
D12:1
|
||||
D13:1
|
||||
D14:1
|
||||
D15:1
|
||||
D16:1
|
||||
D17:1
|
||||
D18:1
|
||||
D19:1
|
||||
D2:1
|
||||
D20:1
|
||||
D21:1
|
||||
D22:1
|
||||
D23:1
|
||||
D24:1
|
||||
D25:1
|
||||
D26:1
|
||||
D27:1
|
||||
D28:1
|
||||
D29:1
|
||||
D3:1
|
||||
D30:1
|
||||
D31:1
|
||||
D32:1
|
||||
D33:1
|
||||
D34:1
|
||||
D35:1
|
||||
D36:1
|
||||
D37:1
|
||||
D38:1
|
||||
D39:1
|
||||
D4:1
|
||||
D40:1
|
||||
D41:1
|
||||
D42:1
|
||||
D5:1
|
||||
D6:1
|
||||
D7:1
|
||||
D8:1
|
||||
D9:1
|
||||
G***:6
|
||||
J2:1
|
||||
J5:8
|
||||
J7:1
|
||||
PSW1:1
|
||||
PSW2:1
|
||||
RSW1:1
|
||||
RSW2:1
|
||||
Ref**:18
|
||||
SW1:1
|
||||
SW10:1
|
||||
SW11:1
|
||||
SW12:1
|
||||
SW13:1
|
||||
SW14:1
|
||||
SW15:1
|
||||
SW16:1
|
||||
SW17:1
|
||||
SW18:1
|
||||
SW19:1
|
||||
SW2:1
|
||||
SW20:1
|
||||
SW21:1
|
||||
SW22:1
|
||||
SW23:1
|
||||
SW24:1
|
||||
SW25:1
|
||||
SW26:1
|
||||
SW27:1
|
||||
SW28:1
|
||||
SW29:1
|
||||
SW3:1
|
||||
SW30:1
|
||||
SW31:1
|
||||
SW32:1
|
||||
SW33:1
|
||||
SW34:1
|
||||
SW35:1
|
||||
SW36:1
|
||||
SW37:1
|
||||
SW38:1
|
||||
SW39:1
|
||||
SW4:1
|
||||
SW40:1
|
||||
SW41:1
|
||||
SW42:1
|
||||
SW5:1
|
||||
SW6:1
|
||||
SW7:1
|
||||
SW8:1
|
||||
SW9:1
|
||||
U1:1
|
||||
U2:1
|
||||
|
@ -0,0 +1,675 @@
|
||||
P CODE 00
|
||||
P UNITS CUST 0
|
||||
P arrayDim N
|
||||
317ROW1 VIA MD0157PA00X-002579Y+015388X0236Y0000R000S3
|
||||
317ROW1 VIA MD0157PA00X+004921Y+015388X0236Y0000R000S3
|
||||
317ROW1 VIA MD0157PA00X+012421Y+014538X0236Y0000R000S3
|
||||
317COL0 VIA MD0157PA00X+019871Y+019788X0236Y0000R000S3
|
||||
317COL0 VIA MD0157PA00X+019872Y+015538X0236Y0000R000S3
|
||||
317COL1 VIA MD0157PA00X+019371Y+019888X0236Y0000R000S3
|
||||
317COL1 VIA MD0157PA00X+019571Y+014488X0236Y0000R000S3
|
||||
317COL2 VIA MD0157PA00X+019571Y+013988X0236Y0000R000S3
|
||||
317COL2 VIA MD0157PA00X-006604Y+014963X0236Y0000R000S3
|
||||
317COL3 VIA MD0157PA00X+019571Y+013438X0236Y0000R000S3
|
||||
317COL3 VIA MD0157PA00X-001556Y+014588X0236Y0000R000S3
|
||||
317COL4 VIA MD0157PA00X+005921Y+014488X0236Y0000R000S3
|
||||
317COL4 VIA MD0157PA00X+019571Y+012888X0236Y0000R000S3
|
||||
317-(BATJ1-PIN_2) VIA MD0157PA00X+020501Y+005095X0315Y0000R000S3
|
||||
317-(BATJ3-PIN_2) VIA MD0157PA00X+033680Y+002063X0315Y0000R000S3
|
||||
317ROW1_R VIA MD0157PA00X+039671Y+012938X0236Y0000R000S3
|
||||
317ROW2_R VIA MD0157PA00X+039471Y+008288X0236Y0000R000S3
|
||||
317ROW2_R VIA MD0157PA00X+040971Y+005738X0236Y0000R000S3
|
||||
317ROW2_R VIA MD0157PA00X+040971Y+007688X0236Y0000R000S3
|
||||
317COL0_R VIA MD0157PA00X+077921Y+007888X0236Y0000R000S3
|
||||
317COL0_R VIA MD0157PA00X+039471Y+007388X0236Y0000R000S3
|
||||
317COL1_R VIA MD0157PA00X+039221Y+007088X0236Y0000R000S3
|
||||
317COL1_R VIA MD0157PA00X+070871Y+007738X0236Y0000R000S3
|
||||
317COL2_R VIA MD0157PA00X+039471Y+006788X0236Y0000R000S3
|
||||
317COL2_R VIA MD0157PA00X+062021Y+007538X0236Y0000R000S3
|
||||
317COL3_R VIA MD0157PA00X+039221Y+006438X0236Y0000R000S3
|
||||
317COL3_R VIA MD0157PA00X+054571Y+006688X0236Y0000R000S3
|
||||
317COL4_R VIA MD0157PA00X+039471Y+006088X0236Y0000R000S3
|
||||
317COL4_R VIA MD0157PA00X+047065Y+006238X0236Y0000R000S3
|
||||
317COL5_R VIA MD0157PA00X+039221Y+005738X0236Y0000R000S3
|
||||
317COL5_R VIA MD0157PA00X+040321Y+005738X0236Y0000R000S3
|
||||
317RESET_R RSW2 -1 D0512PA00X+031958Y+004574X0787Y0000R090S1
|
||||
317GNDA RSW2 -2 D0512PA00X+031958Y+007133X0787Y0000R090S1
|
||||
317RGB U1 -1 D0320PA00X+027427Y+019529X0600Y0000R000S1
|
||||
317CS U1 -2 D0320PA00X+027427Y+018529X0600Y0000R000S1
|
||||
317GND U1 -3 D0320PA00X+027427Y+017529X0600Y0000R000S1
|
||||
317GND U1 -4 D0320PA00X+027427Y+016529X0600Y0000R000S1
|
||||
317SDA U1 -5 D0320PA00X+027427Y+015529X0600Y0000R000S1
|
||||
317SCL U1 -6 D0320PA00X+027427Y+014529X0600Y0000R000S1
|
||||
317ROW0 U1 -7 D0320PA00X+027427Y+013529X0600Y0000R000S1
|
||||
317ROW1 U1 -8 D0320PA00X+027427Y+012529X0600Y0000R000S1
|
||||
317ROW2 U1 -9 D0320PA00X+027427Y+011529X0600Y0000R000S1
|
||||
317ROW3 U1 -10 D0320PA00X+027427Y+010529X0600Y0000R000S1
|
||||
317LASH}B4-PAD11) U1 -11 D0320PA00X+027427Y+009529X0600Y0000R000S1
|
||||
317LASH}B5-PAD12) U1 -12 D0320PA00X+027427Y+008529X0600Y0000R000S1
|
||||
317LASH}10-PAD13) U1 -13 D0320PA00X+021435Y+008529X0600Y0000R000S1
|
||||
317LASH}16-PAD14) U1 -14 D0320PA00X+021435Y+009529X0600Y0000R000S1
|
||||
317COL5 U1 -15 D0320PA00X+021435Y+010529X0600Y0000R000S1
|
||||
317COL4 U1 -16 D0320PA00X+021435Y+011529X0600Y0000R000S1
|
||||
317COL3 U1 -17 D0320PA00X+021435Y+012529X0600Y0000R000S1
|
||||
317COL2 U1 -18 D0320PA00X+021435Y+013529X0600Y0000R000S1
|
||||
317COL1 U1 -19 D0320PA00X+021435Y+014529X0600Y0000R000S1
|
||||
317COL0 U1 -20 D0320PA00X+021435Y+015529X0600Y0000R000S1
|
||||
317VCC U1 -21 D0320PA00X+021435Y+016529X0600Y0000R000S1
|
||||
317RESET U1 -22 D0320PA00X+021435Y+017529X0600Y0000R000S1
|
||||
317GND U1 -23 D0320PA00X+021435Y+018529X0600Y0000R000S1
|
||||
317+BATT U1 -24 D0320PA00X+021435Y+019529X0600Y0000R000S1
|
||||
317RGB_R U2 -1 D0320PA00X+038124Y+019479X0600Y0000R000S1
|
||||
317CS_R U2 -2 D0320PA00X+038124Y+018479X0600Y0000R000S1
|
||||
317GNDA U2 -3 D0320PA00X+038124Y+017479X0600Y0000R000S1
|
||||
317GNDA U2 -4 D0320PA00X+038124Y+016479X0600Y0000R000S1
|
||||
317SDA_R U2 -5 D0320PA00X+038124Y+015479X0600Y0000R000S1
|
||||
317SCL_R U2 -6 D0320PA00X+038124Y+014479X0600Y0000R000S1
|
||||
317ROW0_R U2 -7 D0320PA00X+038124Y+013479X0600Y0000R000S1
|
||||
317ROW1_R U2 -8 D0320PA00X+038124Y+012479X0600Y0000R000S1
|
||||
317ROW2_R U2 -9 D0320PA00X+038124Y+011479X0600Y0000R000S1
|
||||
317ROW3_R U2 -10 D0320PA00X+038124Y+010479X0600Y0000R000S1
|
||||
317}B4-PAD11)#1 U2 -11 D0320PA00X+038124Y+009479X0600Y0000R000S1
|
||||
317}B5-PAD12)#1 U2 -12 D0320PA00X+038124Y+008479X0600Y0000R000S1
|
||||
317}10-PAD13)#1 U2 -13 D0320PA00X+032132Y+008479X0600Y0000R000S1
|
||||
317}16-PAD14)#1 U2 -14 D0320PA00X+032132Y+009479X0600Y0000R000S1
|
||||
317COL5_R U2 -15 D0320PA00X+032132Y+010479X0600Y0000R000S1
|
||||
317COL4_R U2 -16 D0320PA00X+032132Y+011479X0600Y0000R000S1
|
||||
317COL3_R U2 -17 D0320PA00X+032132Y+012479X0600Y0000R000S1
|
||||
317COL2_R U2 -18 D0320PA00X+032132Y+013479X0600Y0000R000S1
|
||||
317COL1_R U2 -19 D0320PA00X+032132Y+014479X0600Y0000R000S1
|
||||
317COL0_R U2 -20 D0320PA00X+032132Y+015479X0600Y0000R000S1
|
||||
317VDD U2 -21 D0320PA00X+032132Y+016479X0600Y0000R000S1
|
||||
317RESET_R U2 -22 D0320PA00X+032132Y+017479X0600Y0000R000S1
|
||||
317GNDA U2 -23 D0320PA00X+032132Y+018479X0600Y0000R000S1
|
||||
317+BATT U2 -24 D0320PA00X+032132Y+019479X0600Y0000R000S1
|
||||
367N/C Ref** D0906UA00X+032083Y-000551X0906Y0000R000S0
|
||||
367N/C Ref** D0906UA00X+037815Y+002812X0906Y0000R000S0
|
||||
317SDA J2 -1 D0320PA00X+022409Y+005716X0550Y0700R000S1
|
||||
317SCL J2 -2 D0320PA00X+023409Y+005716X0550Y0700R000S1
|
||||
317VCC J2 -3 D0320PA00X+024409Y+005716X0550Y0700R000S1
|
||||
317GND J2 -4 D0320PA00X+025409Y+005716X0550Y0700R000S1
|
||||
317CS J2 -5 D0320PA00X+026409Y+005716X0550Y0700R000S1
|
||||
317RESET RSW1 -1 D0512PA00X+027568Y+004632X0787Y0000R090S1
|
||||
317GND RSW1 -2 D0512PA00X+027568Y+007191X0787Y0000R090S1
|
||||
367N/C J5 D0118UA00X-021661Y-000667X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X-021427Y-000667X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X-021193Y-000667X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X-020959Y-000667X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X-020726Y-000667X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X-020492Y-000667X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X-020258Y-000667X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X-020024Y-000667X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X-019791Y-000667X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X-006705Y-000667X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X-006471Y-000667X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X-006237Y-000667X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X-006003Y-000667X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X-005770Y-000667X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X-005536Y-000667X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X-005302Y-000667X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X-005068Y-000667X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X-004835Y-000667X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X-006664Y+023510X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X-006430Y+023510X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X-006197Y+023510X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X-005963Y+023510X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X-005729Y+023510X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X-005495Y+023510X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X-005262Y+023510X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X-005028Y+023510X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X-004794Y+023510X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+008285Y+023510X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+008518Y+023510X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+008752Y+023510X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+008986Y+023510X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+009220Y+023510X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+009453Y+023510X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+009687Y+023510X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+009921Y+023510X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+010155Y+023510X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+049434Y+023506X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+049668Y+023506X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+049902Y+023506X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+050136Y+023506X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+050369Y+023506X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+050603Y+023506X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+050837Y+023506X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+051071Y+023506X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+051304Y+023506X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+064403Y+023510X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+064637Y+023510X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+064870Y+023510X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+065104Y+023510X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+065338Y+023510X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+065572Y+023510X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+065805Y+023510X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+066039Y+023510X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+066273Y+023510X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+079375Y-000671X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+079609Y-000671X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+079843Y-000671X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+080076Y-000671X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+080310Y-000671X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+080544Y-000671X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+080778Y-000671X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+081012Y-000671X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+081245Y-000671X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+064415Y-000671X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+064648Y-000671X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+064882Y-000671X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+065116Y-000671X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+065350Y-000671X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+065583Y-000671X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+065817Y-000671X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+066051Y-000671X0118Y0000R000S0
|
||||
367N/C J5 D0118UA00X+066285Y-000671X0118Y0000R000S0
|
||||
317SDA_R J7 -1 D0320PA00X+033129Y+005660X0550Y0700R000S1
|
||||
317SCL_R J7 -2 D0320PA00X+034129Y+005660X0550Y0700R000S1
|
||||
317VDD J7 -3 D0320PA00X+035129Y+005660X0550Y0700R000S1
|
||||
317GNDA J7 -4 D0320PA00X+036129Y+005660X0550Y0700R000S1
|
||||
317CS_R J7 -5 D0320PA00X+037129Y+005660X0550Y0700R000S1
|
||||
327N/C PSW2 A01X+032312Y+003776X0394Y0315R090S2
|
||||
327N/C PSW2 A01X+031442Y+003776X0394Y0315R090S2
|
||||
367N/C PSW2 D0354UA00X+031875Y+002929X0354Y0000R090S0
|
||||
367N/C PSW2 D0354UA00X+031875Y+001748X0354Y0000R090S0
|
||||
327N/C PSW2 A01X+032312Y+000902X0394Y0315R090S2
|
||||
327N/C PSW2 A01X+031442Y+000902X0394Y0315R090S2
|
||||
327+BATT PSW2 -1 A01X+032568Y+003225X0276Y0591R090S2
|
||||
327-(BATJ3-PIN_2) PSW2 -2 A01X+032568Y+002044X0276Y0591R090S2
|
||||
327-(PSW2-C-PAD3) PSW2 -3 A01X+032568Y+001453X0276Y0591R090S2
|
||||
317-(BATJ3-PIN_2) BATJ4 -1 D0295PA00X+033739Y+003402X0472Y0689R270S0
|
||||
317GNDA BATJ4 -2 D0295PA00X+033739Y+004189X0472Y0689R270S0
|
||||
317GNDA BATJ3 -1 D0394PA00X+035698Y+007516X0669Y0669R090S0
|
||||
317-(BATJ3-PIN_2) BATJ3 -2 D0394PA00X+034698Y+007516X0669Y0669R090S0
|
||||
317GND BATJ1 -1 D0394PA00X+023871Y+007516X0669Y0669R270S0
|
||||
317-(BATJ1-PIN_2) BATJ1 -2 D0394PA00X+024871Y+007516X0669Y0669R270S0
|
||||
327N/C PSW1 A01X+027231Y+000902X0394Y0315R270S2
|
||||
327N/C PSW1 A01X+028102Y+000902X0394Y0315R270S2
|
||||
367N/C PSW1 D0354UA00X+027669Y+001748X0354Y0000R270S0
|
||||
367N/C PSW1 D0354UA00X+027669Y+002929X0354Y0000R270S0
|
||||
327N/C PSW1 A01X+027231Y+003776X0394Y0315R270S2
|
||||
327N/C PSW1 A01X+028102Y+003776X0394Y0315R270S2
|
||||
327-(PSW1-A-PAD1) PSW1 -1 A01X+026976Y+001453X0276Y0591R270S2
|
||||
327+BATT PSW1 -2 A01X+026976Y+002634X0276Y0591R270S2
|
||||
327-(BATJ1-PIN_2) PSW1 -3 A01X+026976Y+003225X0276Y0591R270S2
|
||||
317-(BATJ1-PIN_2) BATJ2 -1 D0295PA00X+025806Y+004268X0472Y0689R090S0
|
||||
317GND BATJ2 -2 D0295PA00X+025806Y+003481X0472Y0689R090S0
|
||||
317ROW2_R D34 -1 D0320PA00X+079197Y+006288X0700Y0550R000S1
|
||||
327ROW2_R D34 -1 A02X+079679Y+006288X0551Y0394R180S1
|
||||
327NET-(D34-A) D34 -2 A02X+081077Y+006288X0551Y0394R180S1
|
||||
317NET-(D34-A) D34 -2 D0320PA00X+081559Y+006288X0700Y0550R000S1
|
||||
317ROW2_R D36 -1 D0320PA00X+068571Y+004969X0700Y0550R090S1
|
||||
327ROW2_R D36 -1 A02X+068571Y+004486X0551Y0394R270S1
|
||||
327NET-(D36-A) D36 -2 A02X+068571Y+003089X0551Y0394R270S1
|
||||
317NET-(D36-A) D36 -2 D0320PA00X+068571Y+002606X0700Y0550R090S1
|
||||
317ROW2_R D37 -1 D0320PA00X+061071Y+005869X0700Y0550R090S1
|
||||
327ROW2_R D37 -1 A02X+061071Y+005386X0551Y0394R270S1
|
||||
327NET-(D37-A) D37 -2 A02X+061071Y+003989X0551Y0394R270S1
|
||||
317NET-(D37-A) D37 -2 D0320PA00X+061071Y+003506X0700Y0550R090S1
|
||||
317ROW2_R D38 -1 D0320PA00X+053571Y+004969X0700Y0550R090S1
|
||||
327ROW2_R D38 -1 A02X+053571Y+004486X0551Y0394R270S1
|
||||
327NET-(D38-A) D38 -2 A02X+053571Y+003089X0551Y0394R270S1
|
||||
317NET-(D38-A) D38 -2 D0320PA00X+053571Y+002606X0700Y0550R090S1
|
||||
317ROW2_R D39 -1 D0320PA00X+046121Y+004019X0700Y0550R090S1
|
||||
327ROW2_R D39 -1 A02X+046121Y+003536X0551Y0394R270S1
|
||||
327NET-(D39-A) D39 -2 A02X+046121Y+002139X0551Y0394R270S1
|
||||
317NET-(D39-A) D39 -2 D0320PA00X+046121Y+001656X0700Y0550R090S1
|
||||
317ROW3_R D40 -1 D0320PA00X+057321Y-002281X0700Y0550R090S1
|
||||
327ROW3_R D40 -1 A02X+057321Y-002764X0551Y0394R270S1
|
||||
327NET-(D40-A) D40 -2 A02X+057321Y-004161X0551Y0394R270S1
|
||||
317NET-(D40-A) D40 -2 D0320PA00X+057321Y-004644X0700Y0550R090S1
|
||||
317ROW3_R D41 -1 D0320PA00X+039921Y+000569X0700Y0550R090S1
|
||||
327ROW3_R D41 -1 A02X+039921Y+000086X0551Y0394R270S1
|
||||
327NET-(D41-A) D41 -2 A02X+039921Y-001311X0551Y0394R270S1
|
||||
317NET-(D41-A) D41 -2 D0320PA00X+039921Y-001794X0700Y0550R090S1
|
||||
317ROW3_R D42 -1 D0320PA00X+038821Y+000569X0700Y0550R090S1
|
||||
327ROW3_R D42 -1 A02X+038821Y+000086X0551Y0394R270S1
|
||||
327NET-(D42-A) D42 -2 A02X+038821Y-001311X0551Y0394R270S1
|
||||
317NET-(D42-A) D42 -2 D0320PA00X+038821Y-001794X0700Y0550R090S1
|
||||
367N/C SW22 D0748UA00X+082419Y+018018X0748Y0000R090S3
|
||||
367N/C SW22 D1181UA00X+080254Y+015695X1181Y0000R090S0
|
||||
367N/C SW22 D1969UA00X+080254Y+018018X1969Y0000R090S3
|
||||
367N/C SW22 D1181UA00X+078286Y+016561X1181Y0000R090S0
|
||||
367N/C SW22 D0748UA00X+078089Y+018018X0748Y0000R090S3
|
||||
327COL0_R SW22 -1 A02X+076986Y+016561X1024Y1024R000S1
|
||||
327NET-(D22-A) SW22 -2 A02X+081553Y+015695X1024Y1024R000S1
|
||||
367N/C SW23 D0748UA00X+074939Y+018018X0748Y0000R090S3
|
||||
367N/C SW23 D1181UA00X+072774Y+015695X1181Y0000R090S0
|
||||
367N/C SW23 D1969UA00X+072774Y+018018X1969Y0000R090S3
|
||||
367N/C SW23 D1181UA00X+070805Y+016561X1181Y0000R090S0
|
||||
367N/C SW23 D0748UA00X+070608Y+018018X0748Y0000R090S3
|
||||
327COL1_R SW23 -1 A02X+069506Y+016561X1024Y1024R000S1
|
||||
327NET-(D23-A) SW23 -2 A02X+074073Y+015695X1024Y1024R000S1
|
||||
367N/C SW24 D0748UA00X+067459Y+019888X0748Y0000R090S3
|
||||
367N/C SW24 D1181UA00X+065293Y+017565X1181Y0000R090S0
|
||||
367N/C SW24 D1969UA00X+065293Y+019888X1969Y0000R090S3
|
||||
367N/C SW24 D1181UA00X+063325Y+018431X1181Y0000R090S0
|
||||
367N/C SW24 D0748UA00X+063128Y+019888X0748Y0000R090S3
|
||||
327COL2_R SW24 -1 A02X+062026Y+018431X1024Y1024R000S1
|
||||
327NET-(D24-A) SW24 -2 A02X+066593Y+017565X1024Y1024R000S1
|
||||
367N/C SW25 D0748UA00X+059978Y+020823X0748Y0000R090S3
|
||||
367N/C SW25 D1181UA00X+057813Y+018500X1181Y0000R090S0
|
||||
367N/C SW25 D1969UA00X+057813Y+020823X1969Y0000R090S3
|
||||
367N/C SW25 D1181UA00X+055845Y+019366X1181Y0000R090S0
|
||||
367N/C SW25 D0748UA00X+055648Y+020823X0748Y0000R090S3
|
||||
327COL3_R SW25 -1 A02X+054545Y+019366X1024Y1024R000S1
|
||||
327NET-(D25-A) SW25 -2 A02X+059112Y+018500X1024Y1024R000S1
|
||||
367N/C SW26 D0748UA00X+052498Y+019888X0748Y0000R090S3
|
||||
367N/C SW26 D1181UA00X+050333Y+017565X1181Y0000R090S0
|
||||
367N/C SW26 D1969UA00X+050333Y+019888X1969Y0000R090S3
|
||||
367N/C SW26 D1181UA00X+048364Y+018431X1181Y0000R090S0
|
||||
367N/C SW26 D0748UA00X+048167Y+019888X0748Y0000R090S3
|
||||
327COL4_R SW26 -1 A02X+047065Y+018431X1024Y1024R000S1
|
||||
327NET-(D26-A) SW26 -2 A02X+051632Y+017565X1024Y1024R000S1
|
||||
367N/C SW27 D0748UA00X+045018Y+018953X0748Y0000R090S3
|
||||
367N/C SW27 D1181UA00X+042852Y+016630X1181Y0000R090S0
|
||||
367N/C SW27 D1969UA00X+042852Y+018953X1969Y0000R090S3
|
||||
367N/C SW27 D1181UA00X+040884Y+017496X1181Y0000R090S0
|
||||
367N/C SW27 D0748UA00X+040687Y+018953X0748Y0000R090S3
|
||||
327COL5_R SW27 -1 A02X+039585Y+017496X1024Y1024R000S1
|
||||
327NET-(D27-A) SW27 -2 A02X+044152Y+016630X1024Y1024R000S1
|
||||
367N/C SW28 D0748UA00X+082419Y+010537X0748Y0000R090S3
|
||||
367N/C SW28 D1181UA00X+080254Y+008215X1181Y0000R090S0
|
||||
367N/C SW28 D1969UA00X+080254Y+010537X1969Y0000R090S3
|
||||
367N/C SW28 D1181UA00X+078286Y+009081X1181Y0000R090S0
|
||||
367N/C SW28 D0748UA00X+078089Y+010537X0748Y0000R090S3
|
||||
327COL0_R SW28 -1 A02X+076986Y+009081X1024Y1024R000S1
|
||||
327NET-(D28-A) SW28 -2 A02X+081553Y+008215X1024Y1024R000S1
|
||||
367N/C SW29 D0748UA00X+074939Y+010537X0748Y0000R090S3
|
||||
367N/C SW29 D1181UA00X+072774Y+008215X1181Y0000R090S0
|
||||
367N/C SW29 D1969UA00X+072774Y+010537X1969Y0000R090S3
|
||||
367N/C SW29 D1181UA00X+070805Y+009081X1181Y0000R090S0
|
||||
367N/C SW29 D0748UA00X+070608Y+010537X0748Y0000R090S3
|
||||
327COL1_R SW29 -1 A02X+069506Y+009081X1024Y1024R000S1
|
||||
327NET-(D29-A) SW29 -2 A02X+074073Y+008215X1024Y1024R000S1
|
||||
367N/C SW30 D0748UA00X+067459Y+012408X0748Y0000R090S3
|
||||
367N/C SW30 D1181UA00X+065293Y+010085X1181Y0000R090S0
|
||||
367N/C SW30 D1969UA00X+065293Y+012408X1969Y0000R090S3
|
||||
367N/C SW30 D1181UA00X+063325Y+010951X1181Y0000R090S0
|
||||
367N/C SW30 D0748UA00X+063128Y+012408X0748Y0000R090S3
|
||||
327COL2_R SW30 -1 A02X+062026Y+010951X1024Y1024R000S1
|
||||
327NET-(D30-A) SW30 -2 A02X+066593Y+010085X1024Y1024R000S1
|
||||
367N/C SW31 D0748UA00X+059978Y+013343X0748Y0000R090S3
|
||||
367N/C SW31 D1181UA00X+057813Y+011020X1181Y0000R090S0
|
||||
367N/C SW31 D1969UA00X+057813Y+013343X1969Y0000R090S3
|
||||
367N/C SW31 D1181UA00X+055845Y+011886X1181Y0000R090S0
|
||||
367N/C SW31 D0748UA00X+055648Y+013343X0748Y0000R090S3
|
||||
327COL3_R SW31 -1 A02X+054545Y+011886X1024Y1024R000S1
|
||||
327NET-(D31-A) SW31 -2 A02X+059112Y+011020X1024Y1024R000S1
|
||||
367N/C SW32 D0748UA00X+052498Y+012408X0748Y0000R090S3
|
||||
367N/C SW32 D1181UA00X+050333Y+010085X1181Y0000R090S0
|
||||
367N/C SW32 D1969UA00X+050333Y+012408X1969Y0000R090S3
|
||||
367N/C SW32 D1181UA00X+048364Y+010951X1181Y0000R090S0
|
||||
367N/C SW32 D0748UA00X+048167Y+012408X0748Y0000R090S3
|
||||
327COL4_R SW32 -1 A02X+047065Y+010951X1024Y1024R000S1
|
||||
327NET-(D32-A) SW32 -2 A02X+051632Y+010085X1024Y1024R000S1
|
||||
367N/C SW33 D0748UA00X+045018Y+011472X0748Y0000R090S3
|
||||
367N/C SW33 D1181UA00X+042852Y+009150X1181Y0000R090S0
|
||||
367N/C SW33 D1969UA00X+042852Y+011472X1969Y0000R090S3
|
||||
367N/C SW33 D1181UA00X+040884Y+010016X1181Y0000R090S0
|
||||
367N/C SW33 D0748UA00X+040687Y+011472X0748Y0000R090S3
|
||||
327COL5_R SW33 -1 A02X+039585Y+010016X1024Y1024R000S1
|
||||
327NET-(D33-A) SW33 -2 A02X+044152Y+009150X1024Y1024R000S1
|
||||
367N/C SW34 D0748UA00X+082419Y+003057X0748Y0000R090S3
|
||||
367N/C SW34 D1181UA00X+080254Y+000734X1181Y0000R090S0
|
||||
367N/C SW34 D1969UA00X+080254Y+003057X1969Y0000R090S3
|
||||
367N/C SW34 D1181UA00X+078286Y+001600X1181Y0000R090S0
|
||||
367N/C SW34 D0748UA00X+078089Y+003057X0748Y0000R090S3
|
||||
327COL0_R SW34 -1 A02X+076986Y+001600X1024Y1024R000S1
|
||||
327NET-(D34-A) SW34 -2 A02X+081553Y+000734X1024Y1024R000S1
|
||||
367N/C SW35 D0748UA00X+074939Y+003057X0748Y0000R090S3
|
||||
367N/C SW35 D1181UA00X+072774Y+000734X1181Y0000R090S0
|
||||
367N/C SW35 D1969UA00X+072774Y+003057X1969Y0000R090S3
|
||||
367N/C SW35 D1181UA00X+070805Y+001600X1181Y0000R090S0
|
||||
367N/C SW35 D0748UA00X+070608Y+003057X0748Y0000R090S3
|
||||
327COL1_R SW35 -1 A02X+069506Y+001600X1024Y1024R000S1
|
||||
327NET-(D35-A) SW35 -2 A02X+074073Y+000734X1024Y1024R000S1
|
||||
367N/C SW36 D0748UA00X+067459Y+004927X0748Y0000R090S3
|
||||
367N/C SW36 D1181UA00X+065293Y+002604X1181Y0000R090S0
|
||||
367N/C SW36 D1969UA00X+065293Y+004927X1969Y0000R090S3
|
||||
367N/C SW36 D1181UA00X+063325Y+003470X1181Y0000R090S0
|
||||
367N/C SW36 D0748UA00X+063128Y+004927X0748Y0000R090S3
|
||||
327COL2_R SW36 -1 A02X+062026Y+003470X1024Y1024R000S1
|
||||
327NET-(D36-A) SW36 -2 A02X+066593Y+002604X1024Y1024R000S1
|
||||
367N/C SW37 D0748UA00X+059978Y+005862X0748Y0000R090S3
|
||||
367N/C SW37 D1181UA00X+057813Y+003539X1181Y0000R090S0
|
||||
367N/C SW37 D1969UA00X+057813Y+005862X1969Y0000R090S3
|
||||
367N/C SW37 D1181UA00X+055845Y+004406X1181Y0000R090S0
|
||||
367N/C SW37 D0748UA00X+055648Y+005862X0748Y0000R090S3
|
||||
327COL3_R SW37 -1 A02X+054545Y+004406X1024Y1024R000S1
|
||||
327NET-(D37-A) SW37 -2 A02X+059112Y+003539X1024Y1024R000S1
|
||||
367N/C SW38 D0748UA00X+052498Y+004927X0748Y0000R090S3
|
||||
367N/C SW38 D1181UA00X+050333Y+002604X1181Y0000R090S0
|
||||
367N/C SW38 D1969UA00X+050333Y+004927X1969Y0000R090S3
|
||||
367N/C SW38 D1181UA00X+048364Y+003470X1181Y0000R090S0
|
||||
367N/C SW38 D0748UA00X+048167Y+004927X0748Y0000R090S3
|
||||
327COL4_R SW38 -1 A02X+047065Y+003470X1024Y1024R000S1
|
||||
327NET-(D38-A) SW38 -2 A02X+051632Y+002604X1024Y1024R000S1
|
||||
367N/C SW40 D0748UA00X+056238Y-002799X0748Y0000R090S3
|
||||
367N/C SW40 D1181UA00X+054073Y-005122X1181Y0000R090S0
|
||||
367N/C SW40 D1969UA00X+054073Y-002799X1969Y0000R090S3
|
||||
367N/C SW40 D1181UA00X+052104Y-004256X1181Y0000R090S0
|
||||
367N/C SW40 D0748UA00X+051908Y-002799X0748Y0000R090S3
|
||||
327COL3_R SW40 -1 A02X+050805Y-004256X1024Y1024R000S1
|
||||
327NET-(D40-A) SW40 -2 A02X+055372Y-005122X1024Y1024R000S1
|
||||
367N/C SW41 D0748UA00X+047897Y-003321X0748Y0000R075S3
|
||||
367N/C SW41 D1181UA00X+046406Y-006126X1181Y0000R075S0
|
||||
367N/C SW41 D1969UA00X+045805Y-003882X1969Y0000R075S3
|
||||
367N/C SW41 D1181UA00X+044281Y-005798X1181Y0000R075S0
|
||||
367N/C SW41 D0748UA00X+043714Y-004442X0748Y0000R075S3
|
||||
327COL4_R SW41 -1 A02X+043026Y-006135X1024Y1024R345S1
|
||||
327NET-(D41-A) SW41 -2 A02X+047661Y-005789X1024Y1024R345S1
|
||||
367N/C SW39 D0748UA00X+045018Y+003992X0748Y0000R090S3
|
||||
367N/C SW39 D1181UA00X+042852Y+001669X1181Y0000R090S0
|
||||
367N/C SW39 D1969UA00X+042852Y+003992X1969Y0000R090S3
|
||||
367N/C SW39 D1181UA00X+040884Y+002535X1181Y0000R090S0
|
||||
367N/C SW39 D0748UA00X+040687Y+003992X0748Y0000R090S3
|
||||
327COL5_R SW39 -1 A02X+039585Y+002535X1024Y1024R000S1
|
||||
327NET-(D39-A) SW39 -2 A02X+044152Y+001669X1024Y1024R000S1
|
||||
317ROW0_R D22 -1 D0320PA00X+079197Y+021138X0700Y0550R000S1
|
||||
327ROW0_R D22 -1 A02X+079679Y+021138X0551Y0394R180S1
|
||||
327NET-(D22-A) D22 -2 A02X+081077Y+021138X0551Y0394R180S1
|
||||
317NET-(D22-A) D22 -2 D0320PA00X+081559Y+021138X0700Y0550R000S1
|
||||
317ROW0_R D23 -1 D0320PA00X+076021Y+019869X0700Y0550R090S1
|
||||
327ROW0_R D23 -1 A02X+076021Y+019386X0551Y0394R270S1
|
||||
327NET-(D23-A) D23 -2 A02X+076021Y+017989X0551Y0394R270S1
|
||||
317NET-(D23-A) D23 -2 D0320PA00X+076021Y+017506X0700Y0550R090S1
|
||||
317ROW0_R D24 -1 D0320PA00X+068521Y+019919X0700Y0550R090S1
|
||||
327ROW0_R D24 -1 A02X+068521Y+019436X0551Y0394R270S1
|
||||
327NET-(D24-A) D24 -2 A02X+068521Y+018039X0551Y0394R270S1
|
||||
317NET-(D24-A) D24 -2 D0320PA00X+068521Y+017556X0700Y0550R090S1
|
||||
317ROW0_R D25 -1 D0320PA00X+061071Y+020869X0700Y0550R090S1
|
||||
327ROW0_R D25 -1 A02X+061071Y+020386X0551Y0394R270S1
|
||||
327NET-(D25-A) D25 -2 A02X+061071Y+018989X0551Y0394R270S1
|
||||
317NET-(D25-A) D25 -2 D0320PA00X+061071Y+018506X0700Y0550R090S1
|
||||
317ROW0_R D26 -1 D0320PA00X+053571Y+019919X0700Y0550R090S1
|
||||
327ROW0_R D26 -1 A02X+053571Y+019436X0551Y0394R270S1
|
||||
327NET-(D26-A) D26 -2 A02X+053571Y+018039X0551Y0394R270S1
|
||||
317NET-(D26-A) D26 -2 D0320PA00X+053571Y+017556X0700Y0550R090S1
|
||||
317ROW0_R D27 -1 D0320PA00X+046071Y+019519X0700Y0550R090S1
|
||||
327ROW0_R D27 -1 A02X+046071Y+019036X0551Y0394R270S1
|
||||
327NET-(D27-A) D27 -2 A02X+046071Y+017639X0551Y0394R270S1
|
||||
317NET-(D27-A) D27 -2 D0320PA00X+046071Y+017156X0700Y0550R090S1
|
||||
317ROW1_R D28 -1 D0320PA00X+079197Y+013788X0700Y0550R000S1
|
||||
327ROW1_R D28 -1 A02X+079679Y+013788X0551Y0394R180S1
|
||||
327NET-(D28-A) D28 -2 A02X+081077Y+013788X0551Y0394R180S1
|
||||
317NET-(D28-A) D28 -2 D0320PA00X+081559Y+013788X0700Y0550R000S1
|
||||
317ROW1_R D29 -1 D0320PA00X+071717Y+013788X0700Y0550R000S1
|
||||
327ROW1_R D29 -1 A02X+072199Y+013788X0551Y0394R180S1
|
||||
327NET-(D29-A) D29 -2 A02X+073597Y+013788X0551Y0394R180S1
|
||||
317NET-(D29-A) D29 -2 D0320PA00X+074079Y+013788X0700Y0550R000S1
|
||||
317ROW1_R D30 -1 D0320PA00X+068521Y+011819X0700Y0550R090S1
|
||||
327ROW1_R D30 -1 A02X+068521Y+011336X0551Y0394R270S1
|
||||
327NET-(D30-A) D30 -2 A02X+068521Y+009939X0551Y0394R270S1
|
||||
317NET-(D30-A) D30 -2 D0320PA00X+068521Y+009456X0700Y0550R090S1
|
||||
317ROW1_R D31 -1 D0320PA00X+061071Y+013369X0700Y0550R090S1
|
||||
327ROW1_R D31 -1 A02X+061071Y+012886X0551Y0394R270S1
|
||||
327NET-(D31-A) D31 -2 A02X+061071Y+011489X0551Y0394R270S1
|
||||
317NET-(D31-A) D31 -2 D0320PA00X+061071Y+011006X0700Y0550R090S1
|
||||
317ROW1_R D32 -1 D0320PA00X+053571Y+012469X0700Y0550R090S1
|
||||
327ROW1_R D32 -1 A02X+053571Y+011986X0551Y0394R270S1
|
||||
327NET-(D32-A) D32 -2 A02X+053571Y+010589X0551Y0394R270S1
|
||||
317NET-(D32-A) D32 -2 D0320PA00X+053571Y+010106X0700Y0550R090S1
|
||||
317ROW2 D14 -1 D0320PA00X-010029Y+003119X0700Y0550R090S1
|
||||
327ROW2 D14 -1 A02X-010029Y+002636X0551Y0394R270S1
|
||||
327NET-(D14-A) D14 -2 A02X-010029Y+001239X0551Y0394R270S1
|
||||
317NET-(D14-A) D14 -2 D0320PA00X-010029Y+000756X0700Y0550R090S1
|
||||
317ROW1 D8 -1 D0320PA00X-010029Y+010569X0700Y0550R090S1
|
||||
327ROW1 D8 -1 A02X-010029Y+010086X0551Y0394R270S1
|
||||
327NET-(D8-A) D8 -2 A02X-010029Y+008689X0551Y0394R270S1
|
||||
317NET-(D8-A) D8 -2 D0320PA00X-010029Y+008206X0700Y0550R090S1
|
||||
317ROW0 D2 -1 D0320PA00X-010079Y+018069X0700Y0550R090S1
|
||||
327ROW0 D2 -1 A02X-010079Y+017586X0551Y0394R270S1
|
||||
327NET-(D2-A) D2 -2 A02X-010079Y+016189X0551Y0394R270S1
|
||||
317NET-(D2-A) D2 -2 D0320PA00X-010079Y+015706X0700Y0550R090S1
|
||||
317ROW1_R D33 -1 D0320PA00X+046071Y+011519X0700Y0550R090S1
|
||||
327ROW1_R D33 -1 A02X+046071Y+011036X0551Y0394R270S1
|
||||
327NET-(D33-A) D33 -2 A02X+046071Y+009639X0551Y0394R270S1
|
||||
317NET-(D33-A) D33 -2 D0320PA00X+046071Y+009156X0700Y0550R090S1
|
||||
367N/C SW6 D0748UA00X+018838Y+018953X0748Y0000R090S3
|
||||
367N/C SW6 D1181UA00X+016672Y+016630X1181Y0000R090S0
|
||||
367N/C SW6 D1969UA00X+016672Y+018953X1969Y0000R090S3
|
||||
367N/C SW6 D1181UA00X+014704Y+017496X1181Y0000R090S0
|
||||
367N/C SW6 D0748UA00X+014507Y+018953X0748Y0000R090S3
|
||||
327COL5 SW6 -1 A02X+013405Y+017496X1024Y1024R000S1
|
||||
327NET-(D6-A) SW6 -2 A02X+017972Y+016630X1024Y1024R000S1
|
||||
367N/C SW5 D0748UA00X+011357Y+019888X0748Y0000R090S3
|
||||
367N/C SW5 D1181UA00X+009192Y+017565X1181Y0000R090S0
|
||||
367N/C SW5 D1969UA00X+009192Y+019888X1969Y0000R090S3
|
||||
367N/C SW5 D1181UA00X+007224Y+018431X1181Y0000R090S0
|
||||
367N/C SW5 D0748UA00X+007027Y+019888X0748Y0000R090S3
|
||||
327COL4 SW5 -1 A02X+005924Y+018431X1024Y1024R000S1
|
||||
327NET-(D5-A) SW5 -2 A02X+010491Y+017565X1024Y1024R000S1
|
||||
367N/C SW4 D0748UA00X+003877Y+020823X0748Y0000R090S3
|
||||
367N/C SW4 D1181UA00X+001712Y+018500X1181Y0000R090S0
|
||||
367N/C SW4 D1969UA00X+001712Y+020823X1969Y0000R090S3
|
||||
367N/C SW4 D1181UA00X-000257Y+019366X1181Y0000R090S0
|
||||
367N/C SW4 D0748UA00X-000454Y+020823X0748Y0000R090S3
|
||||
327COL3 SW4 -1 A02X-001556Y+019366X1024Y1024R000S1
|
||||
327NET-(D4-A) SW4 -2 A02X+003011Y+018500X1024Y1024R000S1
|
||||
367N/C SW3 D0748UA00X-003603Y+019888X0748Y0000R090S3
|
||||
367N/C SW3 D1181UA00X-005769Y+017565X1181Y0000R090S0
|
||||
367N/C SW3 D1969UA00X-005769Y+019888X1969Y0000R090S3
|
||||
367N/C SW3 D1181UA00X-007737Y+018431X1181Y0000R090S0
|
||||
367N/C SW3 D0748UA00X-007934Y+019888X0748Y0000R090S3
|
||||
327COL2 SW3 -1 A02X-009036Y+018431X1024Y1024R000S1
|
||||
327NET-(D3-A) SW3 -2 A02X-004469Y+017565X1024Y1024R000S1
|
||||
367N/C SW2 D0748UA00X-011083Y+018018X0748Y0000R090S3
|
||||
367N/C SW2 D1181UA00X-013249Y+015695X1181Y0000R090S0
|
||||
367N/C SW2 D1969UA00X-013249Y+018018X1969Y0000R090S3
|
||||
367N/C SW2 D1181UA00X-015217Y+016561X1181Y0000R090S0
|
||||
367N/C SW2 D0748UA00X-015414Y+018018X0748Y0000R090S3
|
||||
327COL1 SW2 -1 A02X-016517Y+016561X1024Y1024R000S1
|
||||
327NET-(D2-A) SW2 -2 A02X-011950Y+015695X1024Y1024R000S1
|
||||
367N/C SW18 D0748UA00X+018838Y+003992X0748Y0000R090S3
|
||||
367N/C SW18 D1181UA00X+016672Y+001669X1181Y0000R090S0
|
||||
367N/C SW18 D1969UA00X+016672Y+003992X1969Y0000R090S3
|
||||
367N/C SW18 D1181UA00X+014704Y+002536X1181Y0000R090S0
|
||||
367N/C SW18 D0748UA00X+014507Y+003992X0748Y0000R090S3
|
||||
327COL5 SW18 -1 A02X+013405Y+002536X1024Y1024R000S1
|
||||
327NET-(D18-A) SW18 -2 A02X+017972Y+001669X1024Y1024R000S1
|
||||
367N/C SW21 D0748UA00X+023562Y-003483X0748Y0000R030S3
|
||||
367N/C SW21 D1181UA00X+024491Y-006519X1181Y0000R030S0
|
||||
367N/C SW21 D1969UA00X+022480Y-005358X1969Y0000R030S3
|
||||
367N/C SW21 D1181UA00X+022757Y-007791X1181Y0000R030S0
|
||||
367N/C SW21 D0748UA00X+021397Y-007233X0748Y0000R030S3
|
||||
327COL5 SW21 -1 A02X+022107Y-008916X1024Y1024R300S1
|
||||
327NET-(D21-A) SW21 -2 A02X+025141Y-005394X1024Y1024R300S1
|
||||
317ROW3 D21 -1 D0320PA00X+021071Y+000719X0700Y0550R090S1
|
||||
327ROW3 D21 -1 A02X+021071Y+000236X0551Y0394R270S1
|
||||
327NET-(D21-A) D21 -2 A02X+021071Y-001161X0551Y0394R270S1
|
||||
317NET-(D21-A) D21 -2 D0320PA00X+021071Y-001644X0700Y0550R090S1
|
||||
317ROW3 D20 -1 D0320PA00X+019821Y+000719X0700Y0550R090S1
|
||||
327ROW3 D20 -1 A02X+019821Y+000236X0551Y0394R270S1
|
||||
327NET-(D20-A) D20 -2 A02X+019821Y-001161X0551Y0394R270S1
|
||||
317NET-(D20-A) D20 -2 D0320PA00X+019821Y-001644X0700Y0550R090S1
|
||||
317ROW3 D19 -1 D0320PA00X+008671Y-002731X0700Y0550R090S1
|
||||
327ROW3 D19 -1 A02X+008671Y-003214X0551Y0394R270S1
|
||||
327NET-(D19-A) D19 -2 A02X+008671Y-004611X0551Y0394R270S1
|
||||
317NET-(D19-A) D19 -2 D0320PA00X+008671Y-005094X0700Y0550R090S1
|
||||
317ROW2 D18 -1 D0320PA00X+015590Y+007238X0700Y0550R000S1
|
||||
327ROW2 D18 -1 A02X+016072Y+007238X0551Y0394R180S1
|
||||
327NET-(D18-A) D18 -2 A02X+017470Y+007238X0551Y0394R180S1
|
||||
317NET-(D18-A) D18 -2 D0320PA00X+017952Y+007238X0700Y0550R000S1
|
||||
317ROW2 D17 -1 D0320PA00X+012421Y+004969X0700Y0550R090S1
|
||||
327ROW2 D17 -1 A02X+012421Y+004486X0551Y0394R270S1
|
||||
327NET-(D17-A) D17 -2 A02X+012421Y+003089X0551Y0394R270S1
|
||||
317NET-(D17-A) D17 -2 D0320PA00X+012421Y+002606X0700Y0550R090S1
|
||||
317ROW2 D16 -1 D0320PA00X+004921Y+005919X0700Y0550R090S1
|
||||
327ROW2 D16 -1 A02X+004921Y+005436X0551Y0394R270S1
|
||||
327NET-(D16-A) D16 -2 A02X+004921Y+004039X0551Y0394R270S1
|
||||
317NET-(D16-A) D16 -2 D0320PA00X+004921Y+003556X0700Y0550R090S1
|
||||
317ROW2 D15 -1 D0320PA00X-002579Y+004969X0700Y0550R090S1
|
||||
327ROW2 D15 -1 A02X-002579Y+004486X0551Y0394R270S1
|
||||
327NET-(D15-A) D15 -2 A02X-002579Y+003089X0551Y0394R270S1
|
||||
317NET-(D15-A) D15 -2 D0320PA00X-002579Y+002606X0700Y0550R090S1
|
||||
317ROW2 D13 -1 D0320PA00X-017529Y+003119X0700Y0550R090S1
|
||||
327ROW2 D13 -1 A02X-017529Y+002636X0551Y0394R270S1
|
||||
327NET-(D13-A) D13 -2 A02X-017529Y+001239X0551Y0394R270S1
|
||||
317NET-(D13-A) D13 -2 D0320PA00X-017529Y+000756X0700Y0550R090S1
|
||||
317ROW1 D12 -1 D0320PA00X+015640Y+014538X0700Y0550R000S1
|
||||
327ROW1 D12 -1 A02X+016122Y+014538X0551Y0394R180S1
|
||||
327NET-(D12-A) D12 -2 A02X+017520Y+014538X0551Y0394R180S1
|
||||
317NET-(D12-A) D12 -2 D0320PA00X+018002Y+014538X0700Y0550R000S1
|
||||
317ROW1 D11 -1 D0320PA00X+012421Y+012469X0700Y0550R090S1
|
||||
327ROW1 D11 -1 A02X+012421Y+011986X0551Y0394R270S1
|
||||
327NET-(D11-A) D11 -2 A02X+012421Y+010589X0551Y0394R270S1
|
||||
317NET-(D11-A) D11 -2 D0320PA00X+012421Y+010106X0700Y0550R090S1
|
||||
317ROW1 D10 -1 D0320PA00X+004921Y+013369X0700Y0550R090S1
|
||||
327ROW1 D10 -1 A02X+004921Y+012886X0551Y0394R270S1
|
||||
327NET-(D10-A) D10 -2 A02X+004921Y+011489X0551Y0394R270S1
|
||||
317NET-(D10-A) D10 -2 D0320PA00X+004921Y+011006X0700Y0550R090S1
|
||||
317ROW1 D9 -1 D0320PA00X-002579Y+012469X0700Y0550R090S1
|
||||
327ROW1 D9 -1 A02X-002579Y+011986X0551Y0394R270S1
|
||||
327NET-(D9-A) D9 -2 A02X-002579Y+010589X0551Y0394R270S1
|
||||
317NET-(D9-A) D9 -2 D0320PA00X-002579Y+010106X0700Y0550R090S1
|
||||
317ROW1 D7 -1 D0320PA00X-017529Y+010569X0700Y0550R090S1
|
||||
327ROW1 D7 -1 A02X-017529Y+010086X0551Y0394R270S1
|
||||
327NET-(D7-A) D7 -2 A02X-017529Y+008689X0551Y0394R270S1
|
||||
317NET-(D7-A) D7 -2 D0320PA00X-017529Y+008206X0700Y0550R090S1
|
||||
317ROW0 D6 -1 D0320PA00X+013371Y+021069X0700Y0550R090S1
|
||||
327ROW0 D6 -1 A02X+013371Y+020586X0551Y0394R270S1
|
||||
327NET-(D6-A) D6 -2 A02X+013371Y+019189X0551Y0394R270S1
|
||||
317NET-(D6-A) D6 -2 D0320PA00X+013371Y+018706X0700Y0550R090S1
|
||||
317ROW0 D5 -1 D0320PA00X+012521Y+021069X0700Y0550R090S1
|
||||
327ROW0 D5 -1 A02X+012521Y+020586X0551Y0394R270S1
|
||||
327NET-(D5-A) D5 -2 A02X+012521Y+019189X0551Y0394R270S1
|
||||
317NET-(D5-A) D5 -2 D0320PA00X+012521Y+018706X0700Y0550R090S1
|
||||
317ROW0 D4 -1 D0320PA00X+004921Y+020869X0700Y0550R090S1
|
||||
327ROW0 D4 -1 A02X+004921Y+020386X0551Y0394R270S1
|
||||
327NET-(D4-A) D4 -2 A02X+004921Y+018989X0551Y0394R270S1
|
||||
317NET-(D4-A) D4 -2 D0320PA00X+004921Y+018506X0700Y0550R090S1
|
||||
317ROW0 D3 -1 D0320PA00X-002579Y+019969X0700Y0550R090S1
|
||||
327ROW0 D3 -1 A02X-002579Y+019486X0551Y0394R270S1
|
||||
327NET-(D3-A) D3 -2 A02X-002579Y+018089X0551Y0394R270S1
|
||||
317NET-(D3-A) D3 -2 D0320PA00X-002579Y+017606X0700Y0550R090S1
|
||||
317ROW0 D1 -1 D0320PA00X-017529Y+018069X0700Y0550R090S1
|
||||
327ROW0 D1 -1 A02X-017529Y+017586X0551Y0394R270S1
|
||||
327NET-(D1-A) D1 -2 A02X-017529Y+016189X0551Y0394R270S1
|
||||
317NET-(D1-A) D1 -2 D0320PA00X-017529Y+015706X0700Y0550R090S1
|
||||
367N/C SW13 D0748UA00X-018564Y+003057X0748Y0000R090S3
|
||||
367N/C SW13 D1181UA00X-020729Y+000734X1181Y0000R090S0
|
||||
367N/C SW13 D1969UA00X-020729Y+003057X1969Y0000R090S3
|
||||
367N/C SW13 D1181UA00X-022698Y+001601X1181Y0000R090S0
|
||||
367N/C SW13 D0748UA00X-022894Y+003057X0748Y0000R090S3
|
||||
327COL0 SW13 -1 A02X-023997Y+001601X1024Y1024R000S1
|
||||
327NET-(D13-A) SW13 -2 A02X-019430Y+000734X1024Y1024R000S1
|
||||
367N/C SW20 D0748UA00X+015811Y-004442X0748Y0000R105S3
|
||||
367N/C SW20 D1181UA00X+013118Y-006125X1181Y0000R105S0
|
||||
367N/C SW20 D1969UA00X+013720Y-003882X1969Y0000R105S3
|
||||
367N/C SW20 D1181UA00X+011441Y-004779X1181Y0000R105S0
|
||||
367N/C SW20 D0748UA00X+011628Y-003321X0748Y0000R105S3
|
||||
327COL4 SW20 -1 A02X+010186Y-004443X1024Y1024R015S1
|
||||
327NET-(D20-A) SW20 -2 A02X+014373Y-006462X1024Y1024R015S1
|
||||
367N/C SW19 D0748UA00X+007617Y-002799X0748Y0000R090S3
|
||||
367N/C SW19 D1181UA00X+005452Y-005122X1181Y0000R090S0
|
||||
367N/C SW19 D1969UA00X+005452Y-002799X1969Y0000R090S3
|
||||
367N/C SW19 D1181UA00X+003483Y-004256X1181Y0000R090S0
|
||||
367N/C SW19 D0748UA00X+003287Y-002799X0748Y0000R090S3
|
||||
327COL3 SW19 -1 A02X+002184Y-004256X1024Y1024R000S1
|
||||
327NET-(D19-A) SW19 -2 A02X+006751Y-005122X1024Y1024R000S1
|
||||
367N/C SW17 D0748UA00X+011357Y+004927X0748Y0000R090S3
|
||||
367N/C SW17 D1181UA00X+009192Y+002605X1181Y0000R090S0
|
||||
367N/C SW17 D1969UA00X+009192Y+004927X1969Y0000R090S3
|
||||
367N/C SW17 D1181UA00X+007224Y+003471X1181Y0000R090S0
|
||||
367N/C SW17 D0748UA00X+007027Y+004927X0748Y0000R090S3
|
||||
327COL4 SW17 -1 A02X+005924Y+003471X1024Y1024R000S1
|
||||
327NET-(D17-A) SW17 -2 A02X+010491Y+002605X1024Y1024R000S1
|
||||
367N/C SW16 D0748UA00X+003877Y+005862X0748Y0000R090S3
|
||||
367N/C SW16 D1181UA00X+001712Y+003540X1181Y0000R090S0
|
||||
367N/C SW16 D1969UA00X+001712Y+005862X1969Y0000R090S3
|
||||
367N/C SW16 D1181UA00X-000257Y+004406X1181Y0000R090S0
|
||||
367N/C SW16 D0748UA00X-000454Y+005862X0748Y0000R090S3
|
||||
327COL3 SW16 -1 A02X-001556Y+004406X1024Y1024R000S1
|
||||
327NET-(D16-A) SW16 -2 A02X+003011Y+003540X1024Y1024R000S1
|
||||
367N/C SW15 D0748UA00X-003603Y+004927X0748Y0000R090S3
|
||||
367N/C SW15 D1181UA00X-005769Y+002605X1181Y0000R090S0
|
||||
367N/C SW15 D1969UA00X-005769Y+004927X1969Y0000R090S3
|
||||
367N/C SW15 D1181UA00X-007737Y+003471X1181Y0000R090S0
|
||||
367N/C SW15 D0748UA00X-007934Y+004927X0748Y0000R090S3
|
||||
327COL2 SW15 -1 A02X-009036Y+003471X1024Y1024R000S1
|
||||
327NET-(D15-A) SW15 -2 A02X-004469Y+002605X1024Y1024R000S1
|
||||
367N/C SW14 D0748UA00X-011083Y+003057X0748Y0000R090S3
|
||||
367N/C SW14 D1181UA00X-013249Y+000734X1181Y0000R090S0
|
||||
367N/C SW14 D1969UA00X-013249Y+003057X1969Y0000R090S3
|
||||
367N/C SW14 D1181UA00X-015217Y+001601X1181Y0000R090S0
|
||||
367N/C SW14 D0748UA00X-015414Y+003057X0748Y0000R090S3
|
||||
327COL1 SW14 -1 A02X-016517Y+001601X1024Y1024R000S1
|
||||
327NET-(D14-A) SW14 -2 A02X-011950Y+000734X1024Y1024R000S1
|
||||
367N/C SW12 D0748UA00X+018838Y+011473X0748Y0000R090S3
|
||||
367N/C SW12 D1181UA00X+016672Y+009150X1181Y0000R090S0
|
||||
367N/C SW12 D1969UA00X+016672Y+011473X1969Y0000R090S3
|
||||
367N/C SW12 D1181UA00X+014704Y+010016X1181Y0000R090S0
|
||||
367N/C SW12 D0748UA00X+014507Y+011473X0748Y0000R090S3
|
||||
327COL5 SW12 -1 A02X+013405Y+010016X1024Y1024R000S1
|
||||
327NET-(D12-A) SW12 -2 A02X+017972Y+009150X1024Y1024R000S1
|
||||
367N/C SW11 D0748UA00X+011357Y+012408X0748Y0000R090S3
|
||||
367N/C SW11 D1181UA00X+009192Y+010085X1181Y0000R090S0
|
||||
367N/C SW11 D1969UA00X+009192Y+012408X1969Y0000R090S3
|
||||
367N/C SW11 D1181UA00X+007224Y+010951X1181Y0000R090S0
|
||||
367N/C SW11 D0748UA00X+007027Y+012408X0748Y0000R090S3
|
||||
327COL4 SW11 -1 A02X+005924Y+010951X1024Y1024R000S1
|
||||
327NET-(D11-A) SW11 -2 A02X+010491Y+010085X1024Y1024R000S1
|
||||
367N/C SW10 D0748UA00X+003877Y+013343X0748Y0000R090S3
|
||||
367N/C SW10 D1181UA00X+001712Y+011020X1181Y0000R090S0
|
||||
367N/C SW10 D1969UA00X+001712Y+013343X1969Y0000R090S3
|
||||
367N/C SW10 D1181UA00X-000257Y+011886X1181Y0000R090S0
|
||||
367N/C SW10 D0748UA00X-000454Y+013343X0748Y0000R090S3
|
||||
327COL3 SW10 -1 A02X-001556Y+011886X1024Y1024R000S1
|
||||
327NET-(D10-A) SW10 -2 A02X+003011Y+011020X1024Y1024R000S1
|
||||
367N/C SW9 D0748UA00X-003603Y+012408X0748Y0000R090S3
|
||||
367N/C SW9 D1181UA00X-005769Y+010085X1181Y0000R090S0
|
||||
367N/C SW9 D1969UA00X-005769Y+012408X1969Y0000R090S3
|
||||
367N/C SW9 D1181UA00X-007737Y+010951X1181Y0000R090S0
|
||||
367N/C SW9 D0748UA00X-007934Y+012408X0748Y0000R090S3
|
||||
327COL2 SW9 -1 A02X-009036Y+010951X1024Y1024R000S1
|
||||
327NET-(D9-A) SW9 -2 A02X-004469Y+010085X1024Y1024R000S1
|
||||
367N/C SW8 D0748UA00X-011083Y+010538X0748Y0000R090S3
|
||||
367N/C SW8 D1181UA00X-013249Y+008215X1181Y0000R090S0
|
||||
367N/C SW8 D1969UA00X-013249Y+010538X1969Y0000R090S3
|
||||
367N/C SW8 D1181UA00X-015217Y+009081X1181Y0000R090S0
|
||||
367N/C SW8 D0748UA00X-015414Y+010538X0748Y0000R090S3
|
||||
327COL1 SW8 -1 A02X-016517Y+009081X1024Y1024R000S1
|
||||
327NET-(D8-A) SW8 -2 A02X-011950Y+008215X1024Y1024R000S1
|
||||
367N/C SW7 D0748UA00X-018564Y+010538X0748Y0000R090S3
|
||||
367N/C SW7 D1181UA00X-020729Y+008215X1181Y0000R090S0
|
||||
367N/C SW7 D1969UA00X-020729Y+010538X1969Y0000R090S3
|
||||
367N/C SW7 D1181UA00X-022698Y+009081X1181Y0000R090S0
|
||||
367N/C SW7 D0748UA00X-022894Y+010538X0748Y0000R090S3
|
||||
327COL0 SW7 -1 A02X-023997Y+009081X1024Y1024R000S1
|
||||
327NET-(D7-A) SW7 -2 A02X-019430Y+008215X1024Y1024R000S1
|
||||
367N/C SW1 D0748UA00X-018564Y+018018X0748Y0000R090S3
|
||||
367N/C SW1 D1181UA00X-020729Y+015695X1181Y0000R090S0
|
||||
367N/C SW1 D1969UA00X-020729Y+018018X1969Y0000R090S3
|
||||
367N/C SW1 D1181UA00X-022698Y+016561X1181Y0000R090S0
|
||||
367N/C SW1 D0748UA00X-022894Y+018018X0748Y0000R090S3
|
||||
327COL0 SW1 -1 A02X-023997Y+016561X1024Y1024R000S1
|
||||
327NET-(D1-A) SW1 -2 A02X-019430Y+015695X1024Y1024R000S1
|
||||
317ROW2_R D35 -1 D0320PA00X+071717Y+006338X0700Y0550R000S1
|
||||
327ROW2_R D35 -1 A02X+072199Y+006338X0551Y0394R180S1
|
||||
327NET-(D35-A) D35 -2 A02X+073597Y+006338X0551Y0394R180S1
|
||||
317NET-(D35-A) D35 -2 D0320PA00X+074079Y+006338X0700Y0550R000S1
|
||||
367N/C Ref** D1693UA00X-016986Y+006797X1693Y0000R180S0
|
||||
367N/C Ref** D1693UA00X+012918Y+015652X1693Y0000R180S0
|
||||
367N/C Ref** D1693UA00X-016986Y+014278X1693Y0000R180S0
|
||||
367N/C Ref** D1693UA00X+000000Y+000000X1693Y0000R180S0
|
||||
367N/C Ref** D1693UA00X+018333Y-002998X1693Y0000R180S0
|
||||
367N/C Ref** D0906UA00X+021695Y+002861X0906Y0000R180S0
|
||||
367N/C Ref** D0906UA00X+027377Y-000494X0906Y0000R180S0
|
||||
367N/C SW42 D0748UA00X+038128Y-007233X0748Y0000R150S3
|
||||
367N/C SW42 D1181UA00X+035034Y-006520X1181Y0000R150S0
|
||||
367N/C SW42 D1969UA00X+037045Y-005358X1969Y0000R150S3
|
||||
367N/C SW42 D1181UA00X+034800Y-004382X1181Y0000R150S0
|
||||
367N/C SW42 D0748UA00X+035963Y-003483X0748Y0000R150S3
|
||||
327COL5_R SW42 -1 A02X+034150Y-003257X1024Y1024R060S1
|
||||
327NET-(D42-A) SW42 -2 A02X+035683Y-007645X1024Y1024R060S1
|
||||
367N/C Ref** D1693UA00X+046613Y+015649X1693Y0000R180S0
|
||||
367N/C Ref** D1693UA00X+041199Y-003056X1693Y0000R180S0
|
||||
367N/C Ref** D1693UA00X+059534Y-000005X1693Y0000R180S0
|
||||
367N/C Ref** D1693UA00X+076518Y+014275X1693Y0000R180S0
|
||||
367N/C Ref** D1693UA00X+076518Y+006795X1693Y0000R180S0
|
||||
367N/C Ref** D1693UA00X-009499Y+006788X1693Y0000R180S0
|
||||
367N/C Ref** D1693UA00X-009499Y+014268X1693Y0000R180S0
|
||||
367N/C Ref** D1693UA00X+069044Y+006795X1693Y0000R180S0
|
||||
367N/C Ref** D1693UA00X+069044Y+014275X1693Y0000R180S0
|
||||
999
|
||||
@ -0,0 +1,97 @@
|
||||
Designator,Mid X,Mid Y,Rotation,Layer
|
||||
D1,-44.524,42.8945,270.0,bottom
|
||||
D10,12.499,30.9565,270.0,bottom
|
||||
D11,31.549,28.6705,270.0,bottom
|
||||
D12,42.725,36.9255,180.0,bottom
|
||||
D13,-44.524,4.9215,270.0,bottom
|
||||
D14,-25.474,4.9215,270.0,bottom
|
||||
D15,-6.551,9.6205,270.0,bottom
|
||||
D16,12.499,12.0335,270.0,bottom
|
||||
D17,31.549,9.6205,270.0,bottom
|
||||
D18,42.598,18.3835,180.0,bottom
|
||||
D19,22.024,-9.9375,270.0,bottom
|
||||
D2,-25.601,42.8945,270.0,bottom
|
||||
D20,50.345,-1.1745,270.0,bottom
|
||||
D21,53.52,-1.1745,270.0,bottom
|
||||
D22,204.1605,53.6895,180.0,bottom
|
||||
D23,193.093,47.4665,270.0,bottom
|
||||
D24,174.043,47.5935,270.0,bottom
|
||||
D25,155.12,50.0065,270.0,bottom
|
||||
D26,136.07,47.5935,270.0,bottom
|
||||
D27,117.02,46.5775,270.0,bottom
|
||||
D28,204.1605,35.0205,180.0,bottom
|
||||
D29,185.1605,35.0205,180.0,bottom
|
||||
D3,-6.551,47.7205,270.0,bottom
|
||||
D30,174.043,27.0195,270.0,bottom
|
||||
D31,155.12,30.9565,270.0,bottom
|
||||
D32,136.07,28.6705,270.0,bottom
|
||||
D33,117.02,26.2575,270.0,bottom
|
||||
D34,204.1605,15.9705,180.0,bottom
|
||||
D35,185.1605,16.0975,180.0,bottom
|
||||
D36,174.17,9.6205,270.0,bottom
|
||||
D37,155.12,11.9065,270.0,bottom
|
||||
D38,136.07,9.6205,270.0,bottom
|
||||
D39,117.147,7.2075,270.0,bottom
|
||||
D4,12.499,50.0065,270.0,bottom
|
||||
D40,145.595,-8.7945,270.0,bottom
|
||||
D41,101.399,-1.5555,270.0,bottom
|
||||
D42,98.605,-1.5555,270.0,bottom
|
||||
D5,31.803,50.5145,270.0,bottom
|
||||
D6,33.962,50.5145,270.0,bottom
|
||||
D7,-44.524,23.8445,270.0,bottom
|
||||
D8,-25.474,23.8445,270.0,bottom
|
||||
D9,-6.551,28.6705,270.0,bottom
|
||||
J2,56.919,14.5175,0.0,top
|
||||
J5_8,-52.64325,-1.6945,0.0,top
|
||||
J5_7,-14.655,-1.6945,0.0,top
|
||||
J5_6,-14.552,59.7155,0.0,top
|
||||
J5_5,23.418,59.7155,0.0,top
|
||||
J5_4,127.938,59.7055,0.0,top
|
||||
J5_3,165.958,59.7155,0.0,top
|
||||
J5_2,203.988,-1.7045,0.0,top
|
||||
J5,165.988,-1.7045,0.0,top
|
||||
J7,84.148,14.3755,0.0,top
|
||||
SW1,-52.652,45.7655,0.0,bottom
|
||||
SW10,4.348,33.8905,0.0,bottom
|
||||
SW11,23.348,31.5155,0.0,bottom
|
||||
SW12,42.348,29.1405,0.0,bottom
|
||||
SW13,-52.652,7.7655,0.0,bottom
|
||||
SW14,-33.652,7.7655,0.0,bottom
|
||||
SW15,-14.652,12.5155,0.0,bottom
|
||||
SW16,4.348,14.8905,0.0,bottom
|
||||
SW17,23.348,12.5155,0.0,bottom
|
||||
SW18,42.348,10.1405,0.0,bottom
|
||||
SW19,13.848,-7.1095,0.0,bottom
|
||||
SW2,-33.652,45.7655,0.0,bottom
|
||||
SW20,34.848,-9.8595,15.0,bottom
|
||||
SW21,57.098,-13.6095,300.0,bottom
|
||||
SW22,203.845347,45.765068,0.0,bottom
|
||||
SW23,184.845347,45.765068,0.0,bottom
|
||||
SW24,165.845347,50.515068,0.0,bottom
|
||||
SW25,146.845347,52.890068,0.0,bottom
|
||||
SW26,127.845347,50.515068,0.0,bottom
|
||||
SW27,108.845347,48.140068,0.0,bottom
|
||||
SW28,203.845347,26.765068,0.0,bottom
|
||||
SW29,184.845347,26.765068,0.0,bottom
|
||||
SW3,-14.652,50.5155,0.0,bottom
|
||||
SW30,165.845347,31.515068,0.0,bottom
|
||||
SW31,146.845347,33.890068,0.0,bottom
|
||||
SW32,127.845347,31.515068,0.0,bottom
|
||||
SW33,108.845347,29.140068,0.0,bottom
|
||||
SW34,203.845347,7.765068,0.0,bottom
|
||||
SW35,184.845347,7.765068,0.0,bottom
|
||||
SW36,165.845347,12.515068,0.0,bottom
|
||||
SW37,146.845347,14.890068,0.0,bottom
|
||||
SW38,127.845347,12.515068,0.0,bottom
|
||||
SW39,108.845347,10.140068,0.0,bottom
|
||||
SW4,4.348,52.8905,0.0,bottom
|
||||
SW40,137.345347,-7.109932,0.0,bottom
|
||||
SW41,116.345347,-9.859932,345.0,bottom
|
||||
SW42,94.095347,-13.609932,60.0,bottom
|
||||
SW5,23.348,50.5155,0.0,bottom
|
||||
SW6,42.348,48.1405,0.0,bottom
|
||||
SW7,-52.652,26.7655,0.0,bottom
|
||||
SW8,-33.652,26.7655,0.0,bottom
|
||||
SW9,-14.652,31.5155,0.0,bottom
|
||||
U1,62.053,35.1255,0.0,top
|
||||
U2,89.223347,34.999068,0.0,top
|
||||
|
BIN
corne-ultralight/pcb/production/assembly_position.zip
Normal file
BIN
corne-ultralight/pcb/production/assembly_position.zip
Normal file
Binary file not shown.
@ -0,0 +1,85 @@
|
||||
Designator,Val,Package,Mid X,Mid Y,Rotation,Layer
|
||||
"D1","0805 1n4148 SOD-123","D3_TH",-44.524000,42.894500,-90.000000,bottom
|
||||
"D2","0805 1n4148 SOD-123","D3_TH",-25.601000,42.894500,-90.000000,bottom
|
||||
"D3","0805 1n4148 SOD-123","D3_TH",-6.551000,47.720500,-90.000000,bottom
|
||||
"D4","0805 1n4148 SOD-123","D3_TH",12.499000,50.006500,-90.000000,bottom
|
||||
"D5","0805 1n4148 SOD-123","D3_TH",31.803000,50.514500,-90.000000,bottom
|
||||
"D6","0805 1n4148 SOD-123","D3_TH",33.962000,50.514500,-90.000000,bottom
|
||||
"D7","0805 1n4148 SOD-123","D3_TH",-44.524000,23.844500,-90.000000,bottom
|
||||
"D8","0805 1n4148 SOD-123","D3_TH",-25.474000,23.844500,-90.000000,bottom
|
||||
"D9","0805 1n4148 SOD-123","D3_TH",-6.551000,28.670500,-90.000000,bottom
|
||||
"D10","0805 1n4148 SOD-123","D3_TH",12.499000,30.956500,-90.000000,bottom
|
||||
"D11","0805 1n4148 SOD-123","D3_TH",31.549000,28.670500,-90.000000,bottom
|
||||
"D12","0805 1n4148 SOD-123","D3_TH",42.725000,36.925500,0.000000,bottom
|
||||
"D13","0805 1n4148 SOD-123","D3_TH",-44.524000,4.921500,-90.000000,bottom
|
||||
"D14","0805 1n4148 SOD-123","D3_TH",-25.474000,4.921500,-90.000000,bottom
|
||||
"D15","0805 1n4148 SOD-123","D3_TH",-6.551000,9.620500,-90.000000,bottom
|
||||
"D16","0805 1n4148 SOD-123","D3_TH",12.499000,12.033500,-90.000000,bottom
|
||||
"D17","0805 1n4148 SOD-123","D3_TH",31.549000,9.620500,-90.000000,bottom
|
||||
"D18","0805 1n4148 SOD-123","D3_TH",42.598000,18.383500,0.000000,bottom
|
||||
"D19","0805 1n4148 SOD-123","D3_TH",22.024000,-9.937500,-90.000000,bottom
|
||||
"D20","0805 1n4148 SOD-123","D3_TH",50.345000,-1.174500,-90.000000,bottom
|
||||
"D21","0805 1n4148 SOD-123","D3_TH",53.520000,-1.174500,-90.000000,bottom
|
||||
"D22","0805 1n4148 SOD-123","D3_TH",204.160500,53.689500,0.000000,bottom
|
||||
"D23","0805 1n4148 SOD-123","D3_TH",193.093000,47.466500,-90.000000,bottom
|
||||
"D24","0805 1n4148 SOD-123","D3_TH",174.043000,47.593500,-90.000000,bottom
|
||||
"D25","0805 1n4148 SOD-123","D3_TH",155.120000,50.006500,-90.000000,bottom
|
||||
"D26","0805 1n4148 SOD-123","D3_TH",136.070000,47.593500,-90.000000,bottom
|
||||
"D27","0805 1n4148 SOD-123","D3_TH",117.020000,46.577500,-90.000000,bottom
|
||||
"D28","0805 1n4148 SOD-123","D3_TH",204.160500,35.020500,0.000000,bottom
|
||||
"D29","0805 1n4148 SOD-123","D3_TH",185.160500,35.020500,0.000000,bottom
|
||||
"D30","0805 1n4148 SOD-123","D3_TH",174.043000,27.019500,-90.000000,bottom
|
||||
"D31","0805 1n4148 SOD-123","D3_TH",155.120000,30.956500,-90.000000,bottom
|
||||
"D32","0805 1n4148 SOD-123","D3_TH",136.070000,28.670500,-90.000000,bottom
|
||||
"D33","0805 1n4148 SOD-123","D3_TH",117.020000,26.257500,-90.000000,bottom
|
||||
"D34","0805 1n4148 SOD-123","D3_TH",204.160500,15.970500,0.000000,bottom
|
||||
"D35","0805 1n4148 SOD-123","D3_TH",185.160500,16.097500,0.000000,bottom
|
||||
"D36","0805 1n4148 SOD-123","D3_TH",174.170000,9.620500,-90.000000,bottom
|
||||
"D37","0805 1n4148 SOD-123","D3_TH",155.120000,11.906500,-90.000000,bottom
|
||||
"D38","0805 1n4148 SOD-123","D3_TH",136.070000,9.620500,-90.000000,bottom
|
||||
"D39","0805 1n4148 SOD-123","D3_TH",117.147000,7.207500,-90.000000,bottom
|
||||
"D40","0805 1n4148 SOD-123","D3_TH",145.595000,-8.794500,-90.000000,bottom
|
||||
"D41","0805 1n4148 SOD-123","D3_TH",101.399000,-1.555500,-90.000000,bottom
|
||||
"D42","0805 1n4148 SOD-123","D3_TH",98.605000,-1.555500,-90.000000,bottom
|
||||
"SW1","Kailh PG1350","ChocV1_V2_Hotswap",-52.652000,45.765500,180.000000,bottom
|
||||
"SW2","Kailh PG1350","ChocV1_V2_Hotswap",-33.652000,45.765500,180.000000,bottom
|
||||
"SW3","Kailh PG1350","ChocV1_V2_Hotswap",-14.652000,50.515500,180.000000,bottom
|
||||
"SW4","Kailh PG1350","ChocV1_V2_Hotswap",4.348000,52.890500,180.000000,bottom
|
||||
"SW5","Kailh PG1350","ChocV1_V2_Hotswap",23.348000,50.515500,180.000000,bottom
|
||||
"SW6","Kailh PG1350","ChocV1_V2_Hotswap",42.348000,48.140500,180.000000,bottom
|
||||
"SW7","Kailh PG1350","ChocV1_V2_Hotswap",-52.652000,26.765500,180.000000,bottom
|
||||
"SW8","Kailh PG1350","ChocV1_V2_Hotswap",-33.652000,26.765500,180.000000,bottom
|
||||
"SW9","Kailh PG1350","ChocV1_V2_Hotswap",-14.652000,31.515500,180.000000,bottom
|
||||
"SW10","Kailh PG1350","ChocV1_V2_Hotswap",4.348000,33.890500,180.000000,bottom
|
||||
"SW11","Kailh PG1350","ChocV1_V2_Hotswap",23.348000,31.515500,180.000000,bottom
|
||||
"SW12","Kailh PG1350","ChocV1_V2_Hotswap",42.348000,29.140500,180.000000,bottom
|
||||
"SW13","Kailh PG1350","ChocV1_V2_Hotswap",-52.652000,7.765500,180.000000,bottom
|
||||
"SW14","Kailh PG1350","ChocV1_V2_Hotswap",-33.652000,7.765500,180.000000,bottom
|
||||
"SW15","Kailh PG1350","ChocV1_V2_Hotswap",-14.652000,12.515500,180.000000,bottom
|
||||
"SW16","Kailh PG1350","ChocV1_V2_Hotswap",4.348000,14.890500,180.000000,bottom
|
||||
"SW17","Kailh PG1350","ChocV1_V2_Hotswap",23.348000,12.515500,180.000000,bottom
|
||||
"SW18","Kailh PG1350","ChocV1_V2_Hotswap",42.348000,10.140500,180.000000,bottom
|
||||
"SW19","Kailh PG1350","ChocV1_V2_Hotswap",13.848000,-7.109500,180.000000,bottom
|
||||
"SW20","Kailh PG1350","ChocV1_V2_Hotswap",34.848000,-9.859500,165.000000,bottom
|
||||
"SW21","Kailh PG1350","ChocV1_V2_Hotswap_1.5u",57.098000,-13.609500,-120.000000,bottom
|
||||
"SW22","Kailh PG1350","ChocV1_V2_Hotswap",203.845347,45.765068,180.000000,bottom
|
||||
"SW23","Kailh PG1350","ChocV1_V2_Hotswap",184.845347,45.765068,180.000000,bottom
|
||||
"SW24","Kailh PG1350","ChocV1_V2_Hotswap",165.845347,50.515068,180.000000,bottom
|
||||
"SW25","Kailh PG1350","ChocV1_V2_Hotswap",146.845347,52.890068,180.000000,bottom
|
||||
"SW26","Kailh PG1350","ChocV1_V2_Hotswap",127.845347,50.515068,180.000000,bottom
|
||||
"SW27","Kailh PG1350","ChocV1_V2_Hotswap",108.845347,48.140068,180.000000,bottom
|
||||
"SW28","Kailh PG1350","ChocV1_V2_Hotswap",203.845347,26.765068,180.000000,bottom
|
||||
"SW29","Kailh PG1350","ChocV1_V2_Hotswap",184.845347,26.765068,180.000000,bottom
|
||||
"SW30","Kailh PG1350","ChocV1_V2_Hotswap",165.845347,31.515068,180.000000,bottom
|
||||
"SW31","Kailh PG1350","ChocV1_V2_Hotswap",146.845347,33.890068,180.000000,bottom
|
||||
"SW32","Kailh PG1350","ChocV1_V2_Hotswap",127.845347,31.515068,180.000000,bottom
|
||||
"SW33","Kailh PG1350","ChocV1_V2_Hotswap",108.845347,29.140068,180.000000,bottom
|
||||
"SW34","Kailh PG1350","ChocV1_V2_Hotswap",203.845347,7.765068,180.000000,bottom
|
||||
"SW35","Kailh PG1350","ChocV1_V2_Hotswap",184.845347,7.765068,180.000000,bottom
|
||||
"SW36","Kailh PG1350","ChocV1_V2_Hotswap",165.845347,12.515068,180.000000,bottom
|
||||
"SW37","Kailh PG1350","ChocV1_V2_Hotswap",146.845347,14.890068,180.000000,bottom
|
||||
"SW38","Kailh PG1350","ChocV1_V2_Hotswap",127.845347,12.515068,180.000000,bottom
|
||||
"SW39","Kailh PG1350","ChocV1_V2_Hotswap",108.845347,10.140068,180.000000,bottom
|
||||
"SW40","Kailh PG1350","ChocV1_V2_Hotswap",137.345347,-7.109932,180.000000,bottom
|
||||
"SW41","Kailh PG1350","ChocV1_V2_Hotswap",116.345347,-9.859932,-165.000000,bottom
|
||||
"SW42","Kailh PG1350","ChocV1_V2_Hotswap_1.5u",94.095347,-13.609932,120.000000,bottom
|
||||
|
@ -0,0 +1,85 @@
|
||||
Designator,Val,Package,Mid X,Mid Y,Rotation,Layer
|
||||
D1,0805 1n4148 SOD-123,D3_TH,30.3155,-48.791,-90,bottom
|
||||
D2,0805 1n4148 SOD-123,D3_TH,49.2385,-48.791,-90,bottom
|
||||
D3,0805 1n4148 SOD-123,D3_TH,68.2885,-43.965,-90,bottom
|
||||
D4,0805 1n4148 SOD-123,D3_TH,87.3385,-41.679,-90,bottom
|
||||
D5,0805 1n4148 SOD-123,D3_TH,106.6425,-41.171,-90,bottom
|
||||
D6,0805 1n4148 SOD-123,D3_TH,108.8015,-41.171,-90,bottom
|
||||
D7,0805 1n4148 SOD-123,D3_TH,30.3155,-67.841,-90,bottom
|
||||
D8,0805 1n4148 SOD-123,D3_TH,49.3655,-67.841,-90,bottom
|
||||
D9,0805 1n4148 SOD-123,D3_TH,68.2885,-63.015,-90,bottom
|
||||
D10,0805 1n4148 SOD-123,D3_TH,87.3385,-60.729,-90,bottom
|
||||
D11,0805 1n4148 SOD-123,D3_TH,106.3885,-63.015,-90,bottom
|
||||
D12,0805 1n4148 SOD-123,D3_TH,117.5645,-54.76,180,bottom
|
||||
D13,0805 1n4148 SOD-123,D3_TH,30.3155,-86.764,-90,bottom
|
||||
D14,0805 1n4148 SOD-123,D3_TH,49.3655,-86.764,-90,bottom
|
||||
D15,0805 1n4148 SOD-123,D3_TH,68.2885,-82.065,-90,bottom
|
||||
D16,0805 1n4148 SOD-123,D3_TH,87.3385,-79.652,-90,bottom
|
||||
D17,0805 1n4148 SOD-123,D3_TH,106.3885,-82.065,-90,bottom
|
||||
D18,0805 1n4148 SOD-123,D3_TH,117.4375,-73.302,180,bottom
|
||||
D19,0805 1n4148 SOD-123,D3_TH,96.8635,-101.623,-90,bottom
|
||||
D20,0805 1n4148 SOD-123,D3_TH,125.1845,-92.86,-90,bottom
|
||||
D21,0805 1n4148 SOD-123,D3_TH,128.3595,-92.86,-90,bottom
|
||||
D22,0805 1n4148 SOD-123,D3_TH,279,-37.996,180,bottom
|
||||
D23,0805 1n4148 SOD-123,D3_TH,267.9325,-44.219,-90,bottom
|
||||
D24,0805 1n4148 SOD-123,D3_TH,248.8825,-44.092,-90,bottom
|
||||
D25,0805 1n4148 SOD-123,D3_TH,229.9595,-41.679,-90,bottom
|
||||
D26,0805 1n4148 SOD-123,D3_TH,210.9095,-44.092,-90,bottom
|
||||
D27,0805 1n4148 SOD-123,D3_TH,191.8595,-45.108,-90,bottom
|
||||
D28,0805 1n4148 SOD-123,D3_TH,279,-56.665,180,bottom
|
||||
D29,0805 1n4148 SOD-123,D3_TH,260,-56.665,180,bottom
|
||||
D30,0805 1n4148 SOD-123,D3_TH,248.8825,-64.666,-90,bottom
|
||||
D31,0805 1n4148 SOD-123,D3_TH,229.9595,-60.729,-90,bottom
|
||||
D32,0805 1n4148 SOD-123,D3_TH,210.9095,-63.015,-90,bottom
|
||||
D33,0805 1n4148 SOD-123,D3_TH,191.8595,-65.428,-90,bottom
|
||||
D34,0805 1n4148 SOD-123,D3_TH,279,-75.715,180,bottom
|
||||
D35,0805 1n4148 SOD-123,D3_TH,260,-75.588,180,bottom
|
||||
D36,0805 1n4148 SOD-123,D3_TH,249.0095,-82.065,-90,bottom
|
||||
D37,0805 1n4148 SOD-123,D3_TH,229.9595,-79.779,-90,bottom
|
||||
D38,0805 1n4148 SOD-123,D3_TH,210.9095,-82.065,-90,bottom
|
||||
D39,0805 1n4148 SOD-123,D3_TH,191.9865,-84.478,-90,bottom
|
||||
D40,0805 1n4148 SOD-123,D3_TH,220.4345,-100.48,-90,bottom
|
||||
D41,0805 1n4148 SOD-123,D3_TH,176.2385,-93.241,-90,bottom
|
||||
D42,0805 1n4148 SOD-123,D3_TH,173.4445,-93.241,-90,bottom
|
||||
SW1,Kailh PG1350,ChocV1_V2_Hotswap,19.6925,-50.72,180,bottom
|
||||
SW2,Kailh PG1350,ChocV1_V2_Hotswap,38.6925,-50.72,180,bottom
|
||||
SW3,Kailh PG1350,ChocV1_V2_Hotswap,57.6925,-45.97,180,bottom
|
||||
SW4,Kailh PG1350,ChocV1_V2_Hotswap,76.6925,-43.595,180,bottom
|
||||
SW5,Kailh PG1350,ChocV1_V2_Hotswap,95.6925,-45.97,180,bottom
|
||||
SW6,Kailh PG1350,ChocV1_V2_Hotswap,114.6925,-48.345,180,bottom
|
||||
SW7,Kailh PG1350,ChocV1_V2_Hotswap,19.6925,-69.72,180,bottom
|
||||
SW8,Kailh PG1350,ChocV1_V2_Hotswap,38.6925,-69.72,180,bottom
|
||||
SW9,Kailh PG1350,ChocV1_V2_Hotswap,57.6925,-64.97,180,bottom
|
||||
SW10,Kailh PG1350,ChocV1_V2_Hotswap,76.6925,-62.595,180,bottom
|
||||
SW11,Kailh PG1350,ChocV1_V2_Hotswap,95.6925,-64.97,180,bottom
|
||||
SW12,Kailh PG1350,ChocV1_V2_Hotswap,114.6925,-67.345,180,bottom
|
||||
SW13,Kailh PG1350,ChocV1_V2_Hotswap,19.6925,-88.72,180,bottom
|
||||
SW14,Kailh PG1350,ChocV1_V2_Hotswap,38.6925,-88.72,180,bottom
|
||||
SW15,Kailh PG1350,ChocV1_V2_Hotswap,57.6925,-83.97,180,bottom
|
||||
SW16,Kailh PG1350,ChocV1_V2_Hotswap,76.6925,-81.595,180,bottom
|
||||
SW17,Kailh PG1350,ChocV1_V2_Hotswap,95.6925,-83.97,180,bottom
|
||||
SW18,Kailh PG1350,ChocV1_V2_Hotswap,114.6925,-86.345,180,bottom
|
||||
SW19,Kailh PG1350,ChocV1_V2_Hotswap,86.1925,-103.595,180,bottom
|
||||
SW20,Kailh PG1350,ChocV1_V2_Hotswap,106.035183646917,-105.535690448657,-165,bottom
|
||||
SW21,Kailh PG1350,ChocV1_V2_Hotswap_1.5u,134.846921938165,-109.855733382442,120,bottom
|
||||
SW22,Kailh PG1350,ChocV1_V2_Hotswap,276.189847,-50.720432,180,bottom
|
||||
SW23,Kailh PG1350,ChocV1_V2_Hotswap,257.189847,-50.720432,180,bottom
|
||||
SW24,Kailh PG1350,ChocV1_V2_Hotswap,238.189847,-45.970432,180,bottom
|
||||
SW25,Kailh PG1350,ChocV1_V2_Hotswap,219.189847,-43.595432,180,bottom
|
||||
SW26,Kailh PG1350,ChocV1_V2_Hotswap,200.189847,-45.970432,180,bottom
|
||||
SW27,Kailh PG1350,ChocV1_V2_Hotswap,181.189847,-48.345432,180,bottom
|
||||
SW28,Kailh PG1350,ChocV1_V2_Hotswap,276.189847,-69.720432,180,bottom
|
||||
SW29,Kailh PG1350,ChocV1_V2_Hotswap,257.189847,-69.720432,180,bottom
|
||||
SW30,Kailh PG1350,ChocV1_V2_Hotswap,238.189847,-64.970432,180,bottom
|
||||
SW31,Kailh PG1350,ChocV1_V2_Hotswap,219.189847,-62.595432,180,bottom
|
||||
SW32,Kailh PG1350,ChocV1_V2_Hotswap,200.189847,-64.970432,180,bottom
|
||||
SW33,Kailh PG1350,ChocV1_V2_Hotswap,181.189847,-67.345432,180,bottom
|
||||
SW34,Kailh PG1350,ChocV1_V2_Hotswap,276.189847,-88.720432,180,bottom
|
||||
SW35,Kailh PG1350,ChocV1_V2_Hotswap,257.189847,-88.720432,180,bottom
|
||||
SW36,Kailh PG1350,ChocV1_V2_Hotswap,238.189847,-83.970432,180,bottom
|
||||
SW37,Kailh PG1350,ChocV1_V2_Hotswap,219.189847,-81.595432,180,bottom
|
||||
SW38,Kailh PG1350,ChocV1_V2_Hotswap,200.189847,-83.970432,180,bottom
|
||||
SW39,Kailh PG1350,ChocV1_V2_Hotswap,181.189847,-86.345432,180,bottom
|
||||
SW40,Kailh PG1350,ChocV1_V2_Hotswap,209.689847,-103.595432,180,bottom
|
||||
SW41,Kailh PG1350,ChocV1_V2_Hotswap,190.017193479901,-106.827629483718,165,bottom
|
||||
SW42,Kailh PG1350,ChocV1_V2_Hotswap_1.5u,163.530425061835,-105.534698617558,-120,bottom
|
||||
|
15
corne-ultralight/pcb/production/corne-ultralight-top-pos.csv
Normal file
15
corne-ultralight/pcb/production/corne-ultralight-top-pos.csv
Normal file
@ -0,0 +1,15 @@
|
||||
Ref,Val,Package,PosX,PosY,Rot,Side
|
||||
"G***","LOGO","corne-logo-horizontal",-14.622000,0.755500,0.000000,top
|
||||
"G***","LOGO","corne-logo-horizontal",166.158000,0.675500,0.000000,top
|
||||
"J2","Conn_01x05","nice_view_1side",56.919000,14.517500,0.000000,top
|
||||
"J5","Breakaway_Tabs","Breakaway_Tabs",-52.643250,-1.694500,0.000000,top
|
||||
"J5","Breakaway_Tabs","Breakaway_Tabs",-14.655000,-1.694500,0.000000,top
|
||||
"J5","Breakaway_Tabs","Breakaway_Tabs",-14.552000,59.715500,0.000000,top
|
||||
"J5","Breakaway_Tabs","Breakaway_Tabs",23.418000,59.715500,0.000000,top
|
||||
"J5","Breakaway_Tabs","Breakaway_Tabs",127.938000,59.705500,0.000000,top
|
||||
"J5","Breakaway_Tabs","Breakaway_Tabs",165.958000,59.715500,0.000000,top
|
||||
"J5","Breakaway_Tabs","Breakaway_Tabs",203.988000,-1.704500,0.000000,top
|
||||
"J5","Breakaway_Tabs","Breakaway_Tabs",165.988000,-1.704500,0.000000,top
|
||||
"J7","Conn_01x05","nice_view_1side",84.148000,14.375500,0.000000,top
|
||||
"U1","ProMicro","ProMicro_v3",62.053000,35.125500,0.000000,top
|
||||
"U2","ProMicro","ProMicro_v3",89.223347,34.999068,0.000000,top
|
||||
|
BIN
corne-ultralight/pcb/production/corne-ultralight.png
Normal file
BIN
corne-ultralight/pcb/production/corne-ultralight.png
Normal file
Binary file not shown.
|
After Width: | Height: | Size: 596 KiB |
BIN
corne-ultralight/pcb/production/corne-ultralight2.png
Normal file
BIN
corne-ultralight/pcb/production/corne-ultralight2.png
Normal file
Binary file not shown.
|
After Width: | Height: | Size: 559 KiB |
@ -0,0 +1,4 @@
|
||||
"Comment","Designator","Footprint","LCSC Part #"
|
||||
"0805 1n4148 SOD-123","D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 D16 D17 D18 D19 D20 D21 D22 D23 D24 D25 D26 D27 D28 D29 D30 D31 D32 D33 D34 D35 D36 D37 D38 D39 D40 D41 D42","SOD-123","C444720"
|
||||
"Kailh PG1350","SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8 SW9 SW10 SW11 SW12 SW13 SW14 SW15 SW16 SW17 SW18 SW19 SW20 SW22 SW23 SW24 SW25 SW26 SW27 SW28 SW29 SW30 SW31 SW32 SW33 SW34 SW35 SW36 SW37 SW38 SW39 SW40 SW41","","C5333465"
|
||||
"Kailh PG1350","SW21 SW42","","C5333465"
|
||||
|
@ -0,0 +1 @@
|
||||
"Comment","Designator","Footprint","LCSC Part #"
|
||||
|
BIN
corne-ultralight/pcb/production/corne_gerbers.zip
Normal file
BIN
corne-ultralight/pcb/production/corne_gerbers.zip
Normal file
Binary file not shown.
BIN
corne-ultralight/pcb/production/plate_gerbers.zip
Normal file
BIN
corne-ultralight/pcb/production/plate_gerbers.zip
Normal file
Binary file not shown.
7247
corne-ultralight/pcb/svg/corne-light-B_Cu.svg
Normal file
7247
corne-ultralight/pcb/svg/corne-light-B_Cu.svg
Normal file
File diff suppressed because it is too large
Load Diff
|
After Width: | Height: | Size: 190 KiB |
4644
corne-ultralight/pcb/svg/corne-light-B_Mask.svg
Normal file
4644
corne-ultralight/pcb/svg/corne-light-B_Mask.svg
Normal file
File diff suppressed because it is too large
Load Diff
|
After Width: | Height: | Size: 143 KiB |
1220
corne-ultralight/pcb/svg/corne-light-B_SilkS.svg
Normal file
1220
corne-ultralight/pcb/svg/corne-light-B_SilkS.svg
Normal file
File diff suppressed because it is too large
Load Diff
|
After Width: | Height: | Size: 19 KiB |
2807
corne-ultralight/pcb/svg/corne-light-Edge_Cuts.svg
Normal file
2807
corne-ultralight/pcb/svg/corne-light-Edge_Cuts.svg
Normal file
File diff suppressed because it is too large
Load Diff
|
After Width: | Height: | Size: 35 KiB |
6822
corne-ultralight/pcb/svg/corne-light-F_Cu.svg
Normal file
6822
corne-ultralight/pcb/svg/corne-light-F_Cu.svg
Normal file
File diff suppressed because it is too large
Load Diff
|
After Width: | Height: | Size: 177 KiB |
2518
corne-ultralight/pcb/svg/corne-light-F_Mask.svg
Normal file
2518
corne-ultralight/pcb/svg/corne-light-F_Mask.svg
Normal file
File diff suppressed because it is too large
Load Diff
|
After Width: | Height: | Size: 80 KiB |
5310
corne-ultralight/pcb/svg/corne-light-F_SilkS.svg
Normal file
5310
corne-ultralight/pcb/svg/corne-light-F_SilkS.svg
Normal file
File diff suppressed because it is too large
Load Diff
|
After Width: | Height: | Size: 79 KiB |
4
corne-ultralight/pcb/sym-lib-table
Normal file
4
corne-ultralight/pcb/sym-lib-table
Normal file
@ -0,0 +1,4 @@
|
||||
(sym_lib_table
|
||||
(version 7)
|
||||
(lib (name "kbd")(type "KiCad")(uri "/home/kabbone/Projects/kbd/kicad-symbols/kbd.kicad_sym")(options "")(descr ""))
|
||||
)
|
||||
3049
plates/pcb/bottom-mini/corne-bottom-plate.kicad_pcb
Normal file
3049
plates/pcb/bottom-mini/corne-bottom-plate.kicad_pcb
Normal file
File diff suppressed because it is too large
Load Diff
74
plates/pcb/bottom-mini/corne-bottom-plate.kicad_prl
Normal file
74
plates/pcb/bottom-mini/corne-bottom-plate.kicad_prl
Normal file
@ -0,0 +1,74 @@
|
||||
{
|
||||
"board": {
|
||||
"active_layer": 0,
|
||||
"active_layer_preset": "",
|
||||
"auto_track_width": true,
|
||||
"hidden_nets": [],
|
||||
"high_contrast_mode": 0,
|
||||
"net_color_mode": 1,
|
||||
"opacity": {
|
||||
"pads": 1.0,
|
||||
"tracks": 1.0,
|
||||
"vias": 1.0,
|
||||
"zones": 0.6
|
||||
},
|
||||
"ratsnest_display_mode": 0,
|
||||
"selection_filter": {
|
||||
"dimensions": true,
|
||||
"footprints": true,
|
||||
"graphics": true,
|
||||
"keepouts": true,
|
||||
"lockedItems": true,
|
||||
"otherItems": true,
|
||||
"pads": true,
|
||||
"text": true,
|
||||
"tracks": true,
|
||||
"vias": true,
|
||||
"zones": true
|
||||
},
|
||||
"visible_items": [
|
||||
0,
|
||||
1,
|
||||
2,
|
||||
3,
|
||||
4,
|
||||
5,
|
||||
8,
|
||||
9,
|
||||
10,
|
||||
12,
|
||||
13,
|
||||
14,
|
||||
15,
|
||||
16,
|
||||
17,
|
||||
18,
|
||||
19,
|
||||
20,
|
||||
21,
|
||||
22,
|
||||
23,
|
||||
24,
|
||||
25,
|
||||
26,
|
||||
27,
|
||||
28,
|
||||
29,
|
||||
30,
|
||||
32,
|
||||
33,
|
||||
34,
|
||||
35,
|
||||
36
|
||||
],
|
||||
"visible_layers": "fffffff_7ffffffe",
|
||||
"zone_display_mode": 0
|
||||
},
|
||||
"meta": {
|
||||
"filename": "corne-bottom-plate.kicad_prl",
|
||||
"version": 3
|
||||
},
|
||||
"project": {
|
||||
"files": []
|
||||
}
|
||||
}
|
||||
179
plates/pcb/bottom-mini/corne-bottom-plate.kicad_pro
Normal file
179
plates/pcb/bottom-mini/corne-bottom-plate.kicad_pro
Normal file
@ -0,0 +1,179 @@
|
||||
{
|
||||
"board": {
|
||||
"design_settings": {
|
||||
"defaults": {
|
||||
"board_outline_line_width": 0.15,
|
||||
"copper_line_width": 0.09999999999999999,
|
||||
"copper_text_italic": false,
|
||||
"copper_text_size_h": 1.5,
|
||||
"copper_text_size_v": 1.5,
|
||||
"copper_text_thickness": 0.3,
|
||||
"copper_text_upright": false,
|
||||
"courtyard_line_width": 0.049999999999999996,
|
||||
"dimension_precision": 4,
|
||||
"dimension_units": 3,
|
||||
"dimensions": {
|
||||
"arrow_length": 1270000,
|
||||
"extension_offset": 500000,
|
||||
"keep_text_aligned": true,
|
||||
"suppress_zeroes": false,
|
||||
"text_position": 0,
|
||||
"units_format": 1
|
||||
},
|
||||
"fab_line_width": 0.09999999999999999,
|
||||
"fab_text_italic": false,
|
||||
"fab_text_size_h": 1.0,
|
||||
"fab_text_size_v": 1.0,
|
||||
"fab_text_thickness": 0.15,
|
||||
"fab_text_upright": false,
|
||||
"other_line_width": 0.09999999999999999,
|
||||
"other_text_italic": false,
|
||||
"other_text_size_h": 1.0,
|
||||
"other_text_size_v": 1.0,
|
||||
"other_text_thickness": 0.15,
|
||||
"other_text_upright": false,
|
||||
"pads": {
|
||||
"drill": 2.2,
|
||||
"height": 4.0,
|
||||
"width": 4.0
|
||||
},
|
||||
"silk_line_width": 0.15,
|
||||
"silk_text_italic": false,
|
||||
"silk_text_size_h": 1.0,
|
||||
"silk_text_size_v": 1.0,
|
||||
"silk_text_thickness": 0.15,
|
||||
"silk_text_upright": false,
|
||||
"zones": {
|
||||
"45_degree_only": false,
|
||||
"min_clearance": 0.508
|
||||
}
|
||||
},
|
||||
"diff_pair_dimensions": [],
|
||||
"drc_exclusions": [],
|
||||
"meta": {
|
||||
"filename": "board_design_settings.json",
|
||||
"version": 2
|
||||
},
|
||||
"rule_severities": {
|
||||
"annular_width": "error",
|
||||
"clearance": "error",
|
||||
"copper_edge_clearance": "error",
|
||||
"courtyards_overlap": "error",
|
||||
"diff_pair_gap_out_of_range": "error",
|
||||
"diff_pair_uncoupled_length_too_long": "error",
|
||||
"drill_out_of_range": "error",
|
||||
"duplicate_footprints": "warning",
|
||||
"extra_footprint": "warning",
|
||||
"footprint_type_mismatch": "error",
|
||||
"hole_clearance": "error",
|
||||
"hole_near_hole": "error",
|
||||
"invalid_outline": "error",
|
||||
"item_on_disabled_layer": "error",
|
||||
"items_not_allowed": "error",
|
||||
"length_out_of_range": "error",
|
||||
"malformed_courtyard": "error",
|
||||
"microvia_drill_out_of_range": "error",
|
||||
"missing_courtyard": "ignore",
|
||||
"missing_footprint": "warning",
|
||||
"net_conflict": "warning",
|
||||
"npth_inside_courtyard": "ignore",
|
||||
"padstack": "error",
|
||||
"pth_inside_courtyard": "ignore",
|
||||
"shorting_items": "error",
|
||||
"silk_over_copper": "warning",
|
||||
"silk_overlap": "warning",
|
||||
"skew_out_of_range": "error",
|
||||
"through_hole_pad_without_hole": "error",
|
||||
"too_many_vias": "error",
|
||||
"track_dangling": "warning",
|
||||
"track_width": "error",
|
||||
"tracks_crossing": "error",
|
||||
"unconnected_items": "error",
|
||||
"unresolved_variable": "error",
|
||||
"via_dangling": "warning",
|
||||
"zone_has_empty_net": "error",
|
||||
"zones_intersect": "error"
|
||||
},
|
||||
"rules": {
|
||||
"allow_blind_buried_vias": false,
|
||||
"allow_microvias": false,
|
||||
"max_error": 0.005,
|
||||
"min_clearance": 0.0,
|
||||
"min_copper_edge_clearance": 0.075,
|
||||
"min_hole_clearance": 0.25,
|
||||
"min_hole_to_hole": 0.25,
|
||||
"min_microvia_diameter": 0.19999999999999998,
|
||||
"min_microvia_drill": 0.09999999999999999,
|
||||
"min_silk_clearance": 0.0,
|
||||
"min_through_hole_diameter": 0.3,
|
||||
"min_track_width": 0.19999999999999998,
|
||||
"min_via_annular_width": 0.049999999999999996,
|
||||
"min_via_diameter": 0.39999999999999997,
|
||||
"use_height_for_length_calcs": true
|
||||
},
|
||||
"track_widths": [
|
||||
0.0,
|
||||
0.2,
|
||||
0.5
|
||||
],
|
||||
"via_dimensions": [],
|
||||
"zones_allow_external_fillets": false,
|
||||
"zones_use_no_outline": true
|
||||
},
|
||||
"layer_presets": []
|
||||
},
|
||||
"boards": [],
|
||||
"cvpcb": {
|
||||
"equivalence_files": []
|
||||
},
|
||||
"libraries": {
|
||||
"pinned_footprint_libs": [],
|
||||
"pinned_symbol_libs": []
|
||||
},
|
||||
"meta": {
|
||||
"filename": "corne-bottom-plate.kicad_pro",
|
||||
"version": 1
|
||||
},
|
||||
"net_settings": {
|
||||
"classes": [
|
||||
{
|
||||
"bus_width": 12.0,
|
||||
"clearance": 0.2,
|
||||
"diff_pair_gap": 0.25,
|
||||
"diff_pair_via_gap": 0.25,
|
||||
"diff_pair_width": 0.2,
|
||||
"line_style": 0,
|
||||
"microvia_diameter": 0.3,
|
||||
"microvia_drill": 0.1,
|
||||
"name": "Default",
|
||||
"pcb_color": "rgba(0, 0, 0, 0.000)",
|
||||
"schematic_color": "rgba(0, 0, 0, 0.000)",
|
||||
"track_width": 0.25,
|
||||
"via_diameter": 0.6,
|
||||
"via_drill": 0.4,
|
||||
"wire_width": 6.0
|
||||
}
|
||||
],
|
||||
"meta": {
|
||||
"version": 2
|
||||
},
|
||||
"net_colors": null
|
||||
},
|
||||
"pcbnew": {
|
||||
"last_paths": {
|
||||
"gencad": "",
|
||||
"idf": "",
|
||||
"netlist": "",
|
||||
"specctra_dsn": "",
|
||||
"step": "",
|
||||
"vrml": ""
|
||||
},
|
||||
"page_layout_descr_file": ""
|
||||
},
|
||||
"schematic": {
|
||||
"legacy_lib_dir": "",
|
||||
"legacy_lib_list": []
|
||||
},
|
||||
"sheets": [],
|
||||
"text_variables": {}
|
||||
}
|
||||
12277
plates/pcb/top-mini/corne-top-plate.kicad_pcb
Normal file
12277
plates/pcb/top-mini/corne-top-plate.kicad_pcb
Normal file
File diff suppressed because it is too large
Load Diff
74
plates/pcb/top-mini/corne-top-plate.kicad_prl
Normal file
74
plates/pcb/top-mini/corne-top-plate.kicad_prl
Normal file
@ -0,0 +1,74 @@
|
||||
{
|
||||
"board": {
|
||||
"active_layer": 0,
|
||||
"active_layer_preset": "",
|
||||
"auto_track_width": true,
|
||||
"hidden_nets": [],
|
||||
"high_contrast_mode": 0,
|
||||
"net_color_mode": 1,
|
||||
"opacity": {
|
||||
"pads": 1.0,
|
||||
"tracks": 1.0,
|
||||
"vias": 1.0,
|
||||
"zones": 0.6
|
||||
},
|
||||
"ratsnest_display_mode": 0,
|
||||
"selection_filter": {
|
||||
"dimensions": true,
|
||||
"footprints": true,
|
||||
"graphics": true,
|
||||
"keepouts": true,
|
||||
"lockedItems": true,
|
||||
"otherItems": true,
|
||||
"pads": true,
|
||||
"text": true,
|
||||
"tracks": true,
|
||||
"vias": true,
|
||||
"zones": true
|
||||
},
|
||||
"visible_items": [
|
||||
0,
|
||||
1,
|
||||
2,
|
||||
3,
|
||||
4,
|
||||
5,
|
||||
8,
|
||||
9,
|
||||
10,
|
||||
12,
|
||||
13,
|
||||
14,
|
||||
15,
|
||||
16,
|
||||
17,
|
||||
18,
|
||||
19,
|
||||
20,
|
||||
21,
|
||||
22,
|
||||
23,
|
||||
24,
|
||||
25,
|
||||
26,
|
||||
27,
|
||||
28,
|
||||
29,
|
||||
30,
|
||||
32,
|
||||
33,
|
||||
34,
|
||||
35,
|
||||
36
|
||||
],
|
||||
"visible_layers": "fffffff_7ffffffe",
|
||||
"zone_display_mode": 0
|
||||
},
|
||||
"meta": {
|
||||
"filename": "corne-top-plate.kicad_prl",
|
||||
"version": 3
|
||||
},
|
||||
"project": {
|
||||
"files": []
|
||||
}
|
||||
}
|
||||
179
plates/pcb/top-mini/corne-top-plate.kicad_pro
Normal file
179
plates/pcb/top-mini/corne-top-plate.kicad_pro
Normal file
@ -0,0 +1,179 @@
|
||||
{
|
||||
"board": {
|
||||
"design_settings": {
|
||||
"defaults": {
|
||||
"board_outline_line_width": 0.15,
|
||||
"copper_line_width": 0.09999999999999999,
|
||||
"copper_text_italic": false,
|
||||
"copper_text_size_h": 1.5,
|
||||
"copper_text_size_v": 1.5,
|
||||
"copper_text_thickness": 0.3,
|
||||
"copper_text_upright": false,
|
||||
"courtyard_line_width": 0.049999999999999996,
|
||||
"dimension_precision": 4,
|
||||
"dimension_units": 3,
|
||||
"dimensions": {
|
||||
"arrow_length": 1270000,
|
||||
"extension_offset": 500000,
|
||||
"keep_text_aligned": true,
|
||||
"suppress_zeroes": false,
|
||||
"text_position": 0,
|
||||
"units_format": 1
|
||||
},
|
||||
"fab_line_width": 0.09999999999999999,
|
||||
"fab_text_italic": false,
|
||||
"fab_text_size_h": 1.0,
|
||||
"fab_text_size_v": 1.0,
|
||||
"fab_text_thickness": 0.15,
|
||||
"fab_text_upright": false,
|
||||
"other_line_width": 0.09999999999999999,
|
||||
"other_text_italic": false,
|
||||
"other_text_size_h": 1.0,
|
||||
"other_text_size_v": 1.0,
|
||||
"other_text_thickness": 0.15,
|
||||
"other_text_upright": false,
|
||||
"pads": {
|
||||
"drill": 2.3,
|
||||
"height": 4.2,
|
||||
"width": 4.2
|
||||
},
|
||||
"silk_line_width": 0.15,
|
||||
"silk_text_italic": false,
|
||||
"silk_text_size_h": 1.0,
|
||||
"silk_text_size_v": 1.0,
|
||||
"silk_text_thickness": 0.15,
|
||||
"silk_text_upright": false,
|
||||
"zones": {
|
||||
"45_degree_only": false,
|
||||
"min_clearance": 0.508
|
||||
}
|
||||
},
|
||||
"diff_pair_dimensions": [],
|
||||
"drc_exclusions": [],
|
||||
"meta": {
|
||||
"filename": "board_design_settings.json",
|
||||
"version": 2
|
||||
},
|
||||
"rule_severities": {
|
||||
"annular_width": "error",
|
||||
"clearance": "error",
|
||||
"copper_edge_clearance": "error",
|
||||
"courtyards_overlap": "error",
|
||||
"diff_pair_gap_out_of_range": "error",
|
||||
"diff_pair_uncoupled_length_too_long": "error",
|
||||
"drill_out_of_range": "error",
|
||||
"duplicate_footprints": "warning",
|
||||
"extra_footprint": "warning",
|
||||
"footprint_type_mismatch": "error",
|
||||
"hole_clearance": "error",
|
||||
"hole_near_hole": "error",
|
||||
"invalid_outline": "error",
|
||||
"item_on_disabled_layer": "error",
|
||||
"items_not_allowed": "error",
|
||||
"length_out_of_range": "error",
|
||||
"malformed_courtyard": "error",
|
||||
"microvia_drill_out_of_range": "error",
|
||||
"missing_courtyard": "ignore",
|
||||
"missing_footprint": "warning",
|
||||
"net_conflict": "warning",
|
||||
"npth_inside_courtyard": "ignore",
|
||||
"padstack": "error",
|
||||
"pth_inside_courtyard": "ignore",
|
||||
"shorting_items": "error",
|
||||
"silk_over_copper": "warning",
|
||||
"silk_overlap": "warning",
|
||||
"skew_out_of_range": "error",
|
||||
"through_hole_pad_without_hole": "error",
|
||||
"too_many_vias": "error",
|
||||
"track_dangling": "warning",
|
||||
"track_width": "error",
|
||||
"tracks_crossing": "error",
|
||||
"unconnected_items": "error",
|
||||
"unresolved_variable": "error",
|
||||
"via_dangling": "warning",
|
||||
"zone_has_empty_net": "error",
|
||||
"zones_intersect": "error"
|
||||
},
|
||||
"rules": {
|
||||
"allow_blind_buried_vias": false,
|
||||
"allow_microvias": false,
|
||||
"max_error": 0.005,
|
||||
"min_clearance": 0.0,
|
||||
"min_copper_edge_clearance": 0.075,
|
||||
"min_hole_clearance": 0.25,
|
||||
"min_hole_to_hole": 0.25,
|
||||
"min_microvia_diameter": 0.19999999999999998,
|
||||
"min_microvia_drill": 0.09999999999999999,
|
||||
"min_silk_clearance": 0.0,
|
||||
"min_through_hole_diameter": 0.3,
|
||||
"min_track_width": 0.19999999999999998,
|
||||
"min_via_annular_width": 0.049999999999999996,
|
||||
"min_via_diameter": 0.39999999999999997,
|
||||
"use_height_for_length_calcs": true
|
||||
},
|
||||
"track_widths": [
|
||||
0.0,
|
||||
0.2,
|
||||
0.5
|
||||
],
|
||||
"via_dimensions": [],
|
||||
"zones_allow_external_fillets": false,
|
||||
"zones_use_no_outline": true
|
||||
},
|
||||
"layer_presets": []
|
||||
},
|
||||
"boards": [],
|
||||
"cvpcb": {
|
||||
"equivalence_files": []
|
||||
},
|
||||
"libraries": {
|
||||
"pinned_footprint_libs": [],
|
||||
"pinned_symbol_libs": []
|
||||
},
|
||||
"meta": {
|
||||
"filename": "corne-top-plate.kicad_pro",
|
||||
"version": 1
|
||||
},
|
||||
"net_settings": {
|
||||
"classes": [
|
||||
{
|
||||
"bus_width": 12.0,
|
||||
"clearance": 0.2,
|
||||
"diff_pair_gap": 0.25,
|
||||
"diff_pair_via_gap": 0.25,
|
||||
"diff_pair_width": 0.2,
|
||||
"line_style": 0,
|
||||
"microvia_diameter": 0.3,
|
||||
"microvia_drill": 0.1,
|
||||
"name": "Default",
|
||||
"pcb_color": "rgba(0, 0, 0, 0.000)",
|
||||
"schematic_color": "rgba(0, 0, 0, 0.000)",
|
||||
"track_width": 0.25,
|
||||
"via_diameter": 0.6,
|
||||
"via_drill": 0.4,
|
||||
"wire_width": 6.0
|
||||
}
|
||||
],
|
||||
"meta": {
|
||||
"version": 2
|
||||
},
|
||||
"net_colors": null
|
||||
},
|
||||
"pcbnew": {
|
||||
"last_paths": {
|
||||
"gencad": "",
|
||||
"idf": "",
|
||||
"netlist": "",
|
||||
"specctra_dsn": "",
|
||||
"step": "",
|
||||
"vrml": ""
|
||||
},
|
||||
"page_layout_descr_file": ""
|
||||
},
|
||||
"schematic": {
|
||||
"legacy_lib_dir": "",
|
||||
"legacy_lib_list": []
|
||||
},
|
||||
"sheets": [],
|
||||
"text_variables": {}
|
||||
}
|
||||
File diff suppressed because it is too large
Load Diff
77
plates/pcb/top/corne-top-plate.kicad_prl
Normal file
77
plates/pcb/top/corne-top-plate.kicad_prl
Normal file
@ -0,0 +1,77 @@
|
||||
{
|
||||
"board": {
|
||||
"active_layer": 0,
|
||||
"active_layer_preset": "All Layers",
|
||||
"auto_track_width": true,
|
||||
"hidden_netclasses": [],
|
||||
"hidden_nets": [],
|
||||
"high_contrast_mode": 0,
|
||||
"net_color_mode": 1,
|
||||
"opacity": {
|
||||
"images": 0.6,
|
||||
"pads": 1.0,
|
||||
"tracks": 1.0,
|
||||
"vias": 1.0,
|
||||
"zones": 0.6
|
||||
},
|
||||
"selection_filter": {
|
||||
"dimensions": true,
|
||||
"footprints": true,
|
||||
"graphics": true,
|
||||
"keepouts": true,
|
||||
"lockedItems": false,
|
||||
"otherItems": true,
|
||||
"pads": true,
|
||||
"text": true,
|
||||
"tracks": true,
|
||||
"vias": true,
|
||||
"zones": true
|
||||
},
|
||||
"visible_items": [
|
||||
0,
|
||||
1,
|
||||
2,
|
||||
3,
|
||||
4,
|
||||
5,
|
||||
8,
|
||||
9,
|
||||
10,
|
||||
11,
|
||||
12,
|
||||
13,
|
||||
15,
|
||||
16,
|
||||
17,
|
||||
18,
|
||||
19,
|
||||
20,
|
||||
21,
|
||||
22,
|
||||
23,
|
||||
24,
|
||||
25,
|
||||
26,
|
||||
27,
|
||||
28,
|
||||
29,
|
||||
30,
|
||||
32,
|
||||
33,
|
||||
34,
|
||||
35,
|
||||
36,
|
||||
39,
|
||||
40
|
||||
],
|
||||
"visible_layers": "fffffff_ffffffff",
|
||||
"zone_display_mode": 0
|
||||
},
|
||||
"meta": {
|
||||
"filename": "corne-top-plate.kicad_prl",
|
||||
"version": 3
|
||||
},
|
||||
"project": {
|
||||
"files": []
|
||||
}
|
||||
}
|
||||
239
plates/pcb/top/corne-top-plate.kicad_pro
Normal file
239
plates/pcb/top/corne-top-plate.kicad_pro
Normal file
@ -0,0 +1,239 @@
|
||||
{
|
||||
"board": {
|
||||
"3dviewports": [],
|
||||
"design_settings": {
|
||||
"defaults": {
|
||||
"board_outline_line_width": 0.15,
|
||||
"copper_line_width": 0.09999999999999999,
|
||||
"copper_text_italic": false,
|
||||
"copper_text_size_h": 1.5,
|
||||
"copper_text_size_v": 1.5,
|
||||
"copper_text_thickness": 0.3,
|
||||
"copper_text_upright": false,
|
||||
"courtyard_line_width": 0.049999999999999996,
|
||||
"dimension_precision": 4,
|
||||
"dimension_units": 3,
|
||||
"dimensions": {
|
||||
"arrow_length": 1270000,
|
||||
"extension_offset": 500000,
|
||||
"keep_text_aligned": true,
|
||||
"suppress_zeroes": false,
|
||||
"text_position": 0,
|
||||
"units_format": 1
|
||||
},
|
||||
"fab_line_width": 0.09999999999999999,
|
||||
"fab_text_italic": false,
|
||||
"fab_text_size_h": 1.0,
|
||||
"fab_text_size_v": 1.0,
|
||||
"fab_text_thickness": 0.15,
|
||||
"fab_text_upright": false,
|
||||
"other_line_width": 0.09999999999999999,
|
||||
"other_text_italic": false,
|
||||
"other_text_size_h": 1.0,
|
||||
"other_text_size_v": 1.0,
|
||||
"other_text_thickness": 0.15,
|
||||
"other_text_upright": false,
|
||||
"pads": {
|
||||
"drill": 2.2,
|
||||
"height": 4.0,
|
||||
"width": 4.0
|
||||
},
|
||||
"silk_line_width": 0.15,
|
||||
"silk_text_italic": false,
|
||||
"silk_text_size_h": 1.0,
|
||||
"silk_text_size_v": 1.0,
|
||||
"silk_text_thickness": 0.15,
|
||||
"silk_text_upright": false,
|
||||
"zones": {
|
||||
"min_clearance": 0.508
|
||||
}
|
||||
},
|
||||
"diff_pair_dimensions": [],
|
||||
"drc_exclusions": [],
|
||||
"meta": {
|
||||
"filename": "board_design_settings.json",
|
||||
"version": 2
|
||||
},
|
||||
"rule_severities": {
|
||||
"annular_width": "error",
|
||||
"clearance": "error",
|
||||
"connection_width": "warning",
|
||||
"copper_edge_clearance": "error",
|
||||
"copper_sliver": "warning",
|
||||
"courtyards_overlap": "error",
|
||||
"diff_pair_gap_out_of_range": "error",
|
||||
"diff_pair_uncoupled_length_too_long": "error",
|
||||
"drill_out_of_range": "error",
|
||||
"duplicate_footprints": "warning",
|
||||
"extra_footprint": "warning",
|
||||
"footprint": "error",
|
||||
"footprint_type_mismatch": "ignore",
|
||||
"hole_clearance": "error",
|
||||
"hole_near_hole": "error",
|
||||
"invalid_outline": "error",
|
||||
"isolated_copper": "warning",
|
||||
"item_on_disabled_layer": "error",
|
||||
"items_not_allowed": "error",
|
||||
"length_out_of_range": "error",
|
||||
"lib_footprint_issues": "warning",
|
||||
"lib_footprint_mismatch": "warning",
|
||||
"malformed_courtyard": "error",
|
||||
"microvia_drill_out_of_range": "error",
|
||||
"missing_courtyard": "ignore",
|
||||
"missing_footprint": "warning",
|
||||
"net_conflict": "warning",
|
||||
"npth_inside_courtyard": "ignore",
|
||||
"padstack": "warning",
|
||||
"pth_inside_courtyard": "ignore",
|
||||
"shorting_items": "error",
|
||||
"silk_edge_clearance": "warning",
|
||||
"silk_over_copper": "warning",
|
||||
"silk_overlap": "warning",
|
||||
"skew_out_of_range": "error",
|
||||
"solder_mask_bridge": "error",
|
||||
"starved_thermal": "error",
|
||||
"text_height": "warning",
|
||||
"text_thickness": "warning",
|
||||
"through_hole_pad_without_hole": "error",
|
||||
"too_many_vias": "error",
|
||||
"track_dangling": "warning",
|
||||
"track_width": "error",
|
||||
"tracks_crossing": "error",
|
||||
"unconnected_items": "error",
|
||||
"unresolved_variable": "error",
|
||||
"via_dangling": "warning",
|
||||
"zones_intersect": "error"
|
||||
},
|
||||
"rules": {
|
||||
"max_error": 0.005,
|
||||
"min_clearance": 0.0,
|
||||
"min_connection": 0.0,
|
||||
"min_copper_edge_clearance": 0.075,
|
||||
"min_hole_clearance": 0.25,
|
||||
"min_hole_to_hole": 0.25,
|
||||
"min_microvia_diameter": 0.19999999999999998,
|
||||
"min_microvia_drill": 0.09999999999999999,
|
||||
"min_resolved_spokes": 2,
|
||||
"min_silk_clearance": 0.0,
|
||||
"min_text_height": 0.7999999999999999,
|
||||
"min_text_thickness": 0.08,
|
||||
"min_through_hole_diameter": 0.3,
|
||||
"min_track_width": 0.19999999999999998,
|
||||
"min_via_annular_width": 0.09999999999999999,
|
||||
"min_via_diameter": 0.39999999999999997,
|
||||
"solder_mask_to_copper_clearance": 0.0,
|
||||
"use_height_for_length_calcs": true
|
||||
},
|
||||
"teardrop_options": [
|
||||
{
|
||||
"td_allow_use_two_tracks": true,
|
||||
"td_curve_segcount": 5,
|
||||
"td_on_pad_in_zone": false,
|
||||
"td_onpadsmd": true,
|
||||
"td_onroundshapesonly": false,
|
||||
"td_ontrackend": false,
|
||||
"td_onviapad": true
|
||||
}
|
||||
],
|
||||
"teardrop_parameters": [
|
||||
{
|
||||
"td_curve_segcount": 0,
|
||||
"td_height_ratio": 1.0,
|
||||
"td_length_ratio": 0.5,
|
||||
"td_maxheight": 2.0,
|
||||
"td_maxlen": 1.0,
|
||||
"td_target_name": "td_round_shape",
|
||||
"td_width_to_size_filter_ratio": 0.9
|
||||
},
|
||||
{
|
||||
"td_curve_segcount": 0,
|
||||
"td_height_ratio": 1.0,
|
||||
"td_length_ratio": 0.5,
|
||||
"td_maxheight": 2.0,
|
||||
"td_maxlen": 1.0,
|
||||
"td_target_name": "td_rect_shape",
|
||||
"td_width_to_size_filter_ratio": 0.9
|
||||
},
|
||||
{
|
||||
"td_curve_segcount": 0,
|
||||
"td_height_ratio": 1.0,
|
||||
"td_length_ratio": 0.5,
|
||||
"td_maxheight": 2.0,
|
||||
"td_maxlen": 1.0,
|
||||
"td_target_name": "td_track_end",
|
||||
"td_width_to_size_filter_ratio": 0.9
|
||||
}
|
||||
],
|
||||
"track_widths": [
|
||||
0.0,
|
||||
0.2,
|
||||
0.5
|
||||
],
|
||||
"via_dimensions": [],
|
||||
"zones_allow_external_fillets": false
|
||||
},
|
||||
"layer_presets": [],
|
||||
"viewports": []
|
||||
},
|
||||
"boards": [],
|
||||
"cvpcb": {
|
||||
"equivalence_files": []
|
||||
},
|
||||
"libraries": {
|
||||
"pinned_footprint_libs": [],
|
||||
"pinned_symbol_libs": []
|
||||
},
|
||||
"meta": {
|
||||
"filename": "corne-top-plate.kicad_pro",
|
||||
"version": 1
|
||||
},
|
||||
"net_settings": {
|
||||
"classes": [
|
||||
{
|
||||
"bus_width": 12,
|
||||
"clearance": 0.2,
|
||||
"diff_pair_gap": 0.25,
|
||||
"diff_pair_via_gap": 0.25,
|
||||
"diff_pair_width": 0.2,
|
||||
"line_style": 0,
|
||||
"microvia_diameter": 0.3,
|
||||
"microvia_drill": 0.1,
|
||||
"name": "Default",
|
||||
"pcb_color": "rgba(0, 0, 0, 0.000)",
|
||||
"schematic_color": "rgba(0, 0, 0, 0.000)",
|
||||
"track_width": 0.25,
|
||||
"via_diameter": 0.6,
|
||||
"via_drill": 0.4,
|
||||
"wire_width": 6
|
||||
}
|
||||
],
|
||||
"meta": {
|
||||
"version": 3
|
||||
},
|
||||
"net_colors": null,
|
||||
"netclass_assignments": null,
|
||||
"netclass_patterns": []
|
||||
},
|
||||
"pcbnew": {
|
||||
"last_paths": {
|
||||
"gencad": "",
|
||||
"idf": "",
|
||||
"netlist": "",
|
||||
"specctra_dsn": "",
|
||||
"step": "",
|
||||
"vrml": ""
|
||||
},
|
||||
"page_layout_descr_file": ""
|
||||
},
|
||||
"schematic": {
|
||||
"drawing": {
|
||||
"label_size_ratio": 0.25,
|
||||
"pin_symbol_size": 0,
|
||||
"text_offset_ratio": 0.08
|
||||
},
|
||||
"legacy_lib_dir": "",
|
||||
"legacy_lib_list": []
|
||||
},
|
||||
"sheets": [],
|
||||
"text_variables": {}
|
||||
}
|
||||
Loading…
Reference in New Issue
Block a user
