Sweep2

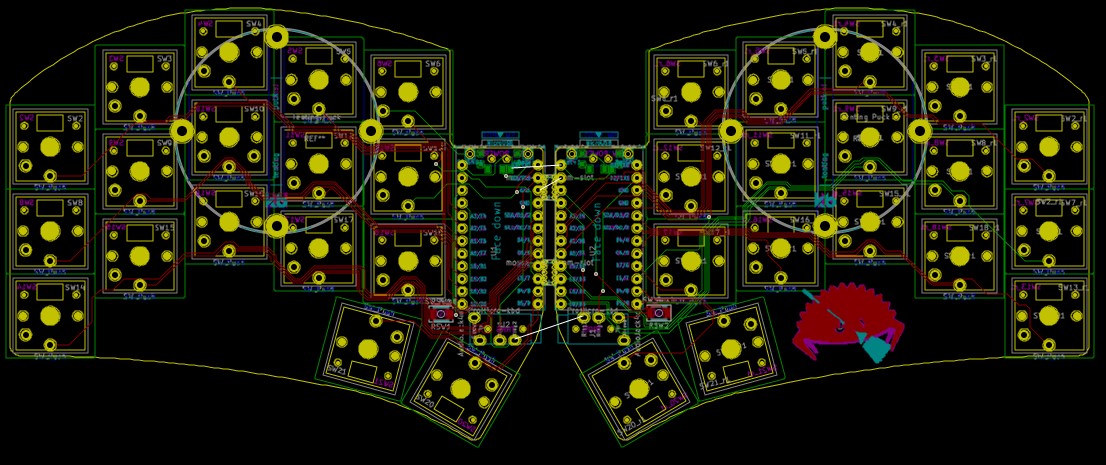

This is the main Choc v1 board we all know and love.
Ordering The PCB
To order the PCB the following settings are recommended1,2:
| Detail | Value |
|---|---|
| Gerber file | sweepv2.1_gerber.zip |
| Base material | FR-4 |
| Layers | 2 |
| Dimension | 216.9mm x 86.9mm |
| Different design | 2 |
| Delivery format | Single PCB |
| PCB thickness | 1.6mm |
| PCB color | (Personal preference) |
| Silkscreen | (Personal preference) |
| Surface finish | (Personal preference) |
| Outer copper weight | 1oz |
| Gold Fingers | No |
| Confirm production file | No |
| Castellated holes | No |
| Remove order number | Yes |
1: Settings are for JLCPCB, but could work for other manufacturers.
2: Settings are taken from Kyek's video guide.
