README.md

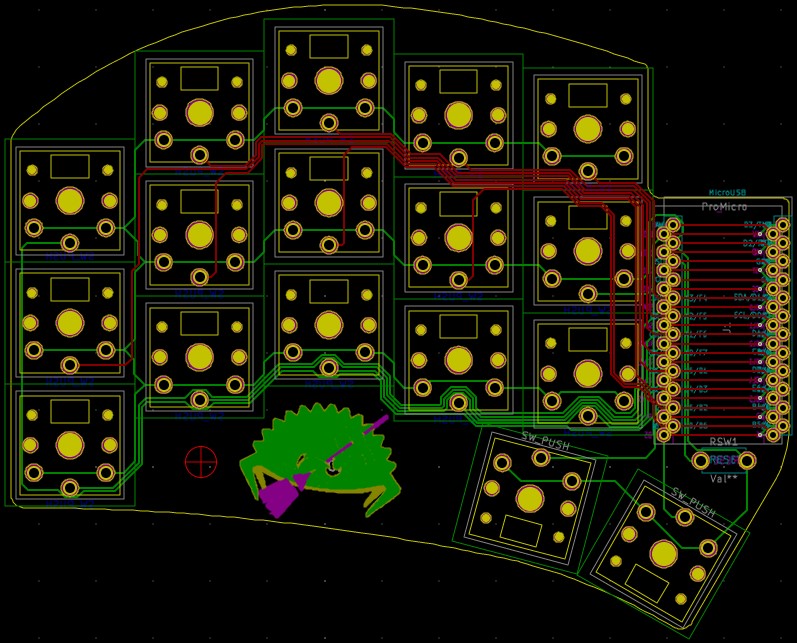

Sweep Compact BLE

This is an older revision.
The Half Swept version is very similar but offers more features.

The main difference in this design is the missing TRRS jack footprint.

Features

Device Bluetooth Support[1] On/Off Switch Reversible PCB Choc V1 Choc V2 Choc Mini MX & Alps Choc Spacing[2] Tenting[3]
Sweep Compact BLE ✔ ✔ ✔ ✔
