README.md

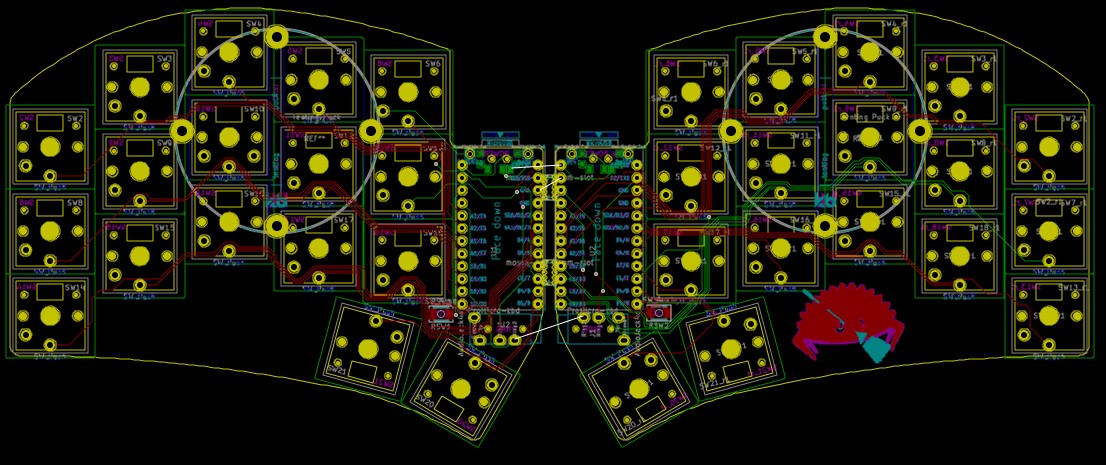

Sweep2

This is the main Choc v1 board we all know and love.

Ordering The PCB

To order the PCB the following settings are recommended^1,2:

Detail	Value
Gerber file	`sweepv2.1_gerber.zip`
Base material	FR-4
Layers	2
Dimension	216.9mm x 86.9mm
Different design	2
Delivery format	Single PCB
PCB thickness	1.6mm
PCB color	(Personal preference)
Silkscreen	(Personal preference)
Surface finish	(Personal preference)
Outer copper weight	1oz
Gold Fingers	No
Confirm production file	No
Castellated holes	No
Remove order number	Yes

1: Settings are for JLCPCB, but could work for other manufacturers.

2: Settings are taken from Kyek's video guide.
