README.md

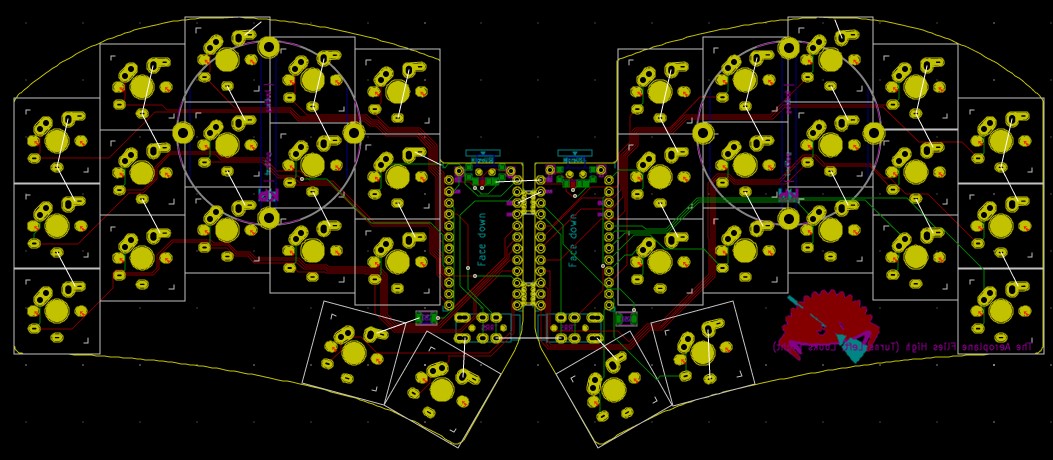

Sweep HIGH

Same as the Sweep2 but trades choc spacing for compatibility with more switches and keycaps.

Ordering The PCB

To order the PCB the following settings are recommended1,2:

Detail Value
Gerber file sweepv2.1_gerber.zip
Base material FR-4
Layers 2
Dimension 95.15mm x 229.54mm
Different design 2
Delivery format Single PCB
PCB thickness 1.6mm
PCB color (Personal preference)
Silkscreen (Personal preference)
Surface finish (Personal preference)
Outer copper weight 1oz
Gold Fingers No
Confirm production file No
Castellated holes No
Remove order number Yes

1: Settings are for JLCPCB, but could work for other manufacturers.

2: Settings are taken from Kyek's video guide.
