README.md

⚠ WARNING! PRE-RELEASE! ⚠

This device is currently in pre-release phase.
As such, it has not yet been tested and subject to changes.
Please keep this in mind if you wish to build it.

After being reported as functional it will receive a new stable release.

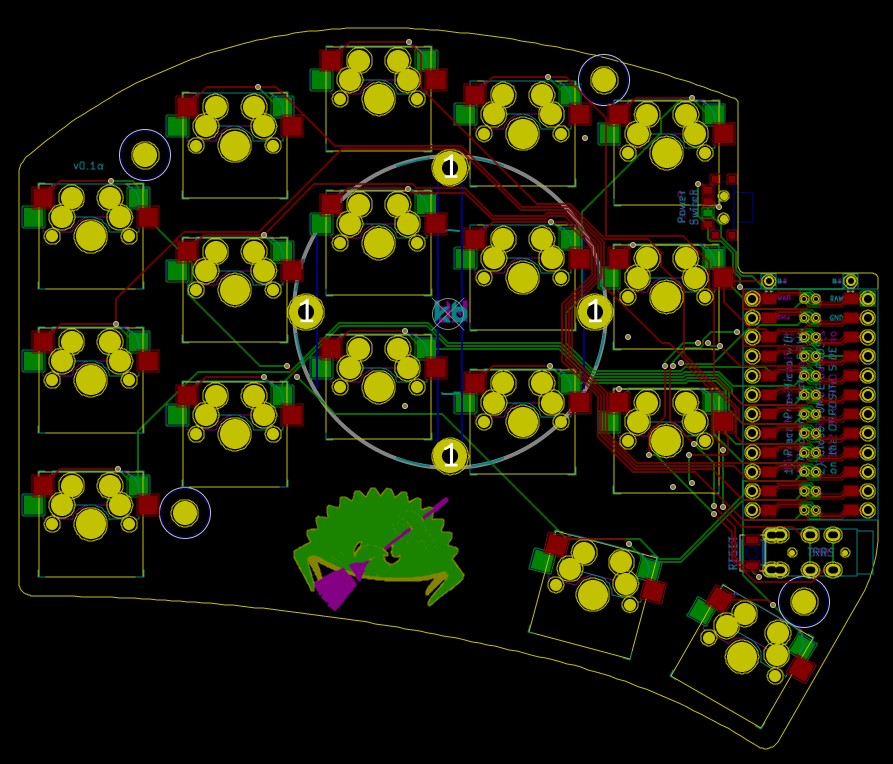

Sweep Bling MX

This version of the Sweep features MX Switches support (exclusively) with hotswap sockets. As well as tenting support.

It also features mouting holes for a stacked case. You can find the switch plate and bottom plate files in the relative folders.

The bottom plate is also compatible with tenting, you can break away the middle section to allow installation of the puck.

Ordering The PCB

To order the PCB the following settings are recommended1,2:

Detail Value
Gerber file sweep_bling_mx_gerber.zip
Base material FR-4
Layers 2
Dimension 95.15mm x 229.54mm
Different design 1
Delivery format Single PCB
PCB thickness 1.6mm
PCB color (Personal preference)
Silkscreen (Personal preference)
Surface finish (Personal preference)
Outer copper weight 1oz
Gold Fingers No
Confirm production file No
Castellated holes No
Remove order number Yes

1: Settings are for JLCPCB, but could work for other manufacturers.
